ABB ZDPM18015C-BV

15HP,1800RPM,3PH,60HZ,1838C,TEBC,FO

MPN: ZDPM18015C-BV
Category: RPM AC Vector Duty

Price and lead time confirmed within 1 business day

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

Have spare ABB parts? We buy surplus →

What is the ABB ZDPM18015C-BV?

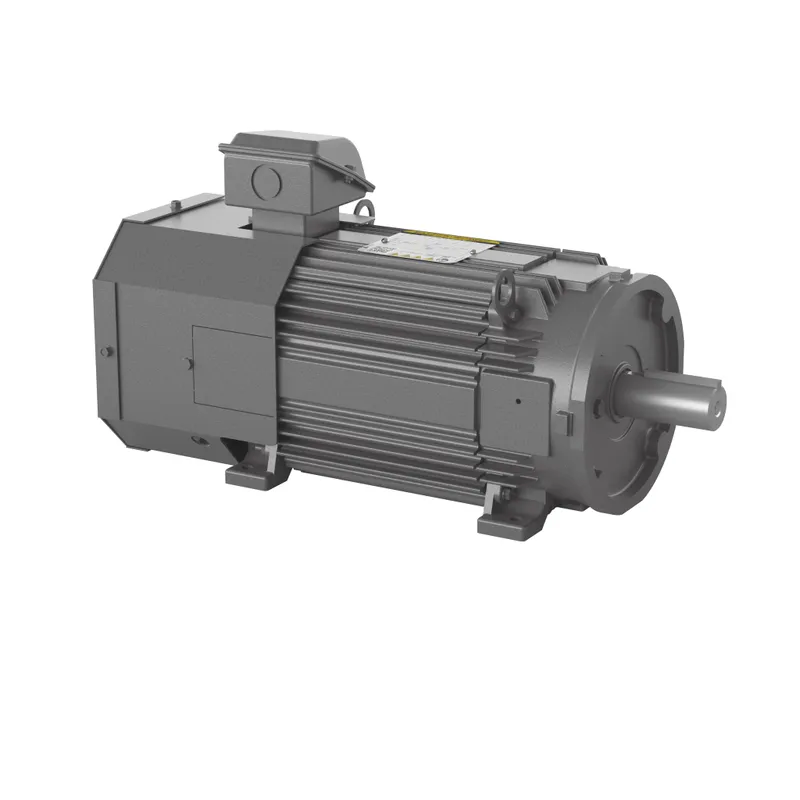

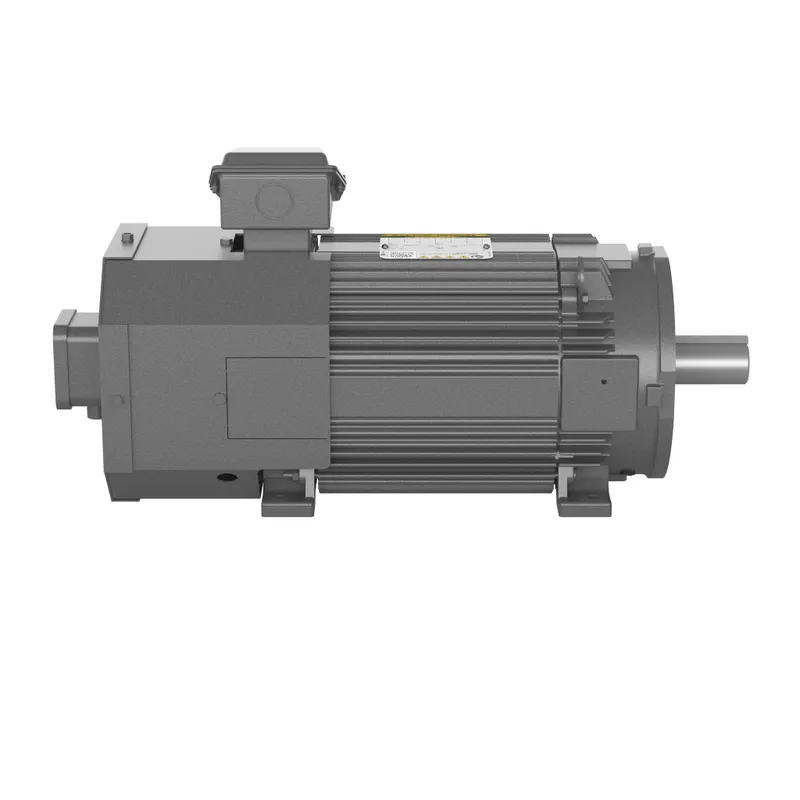

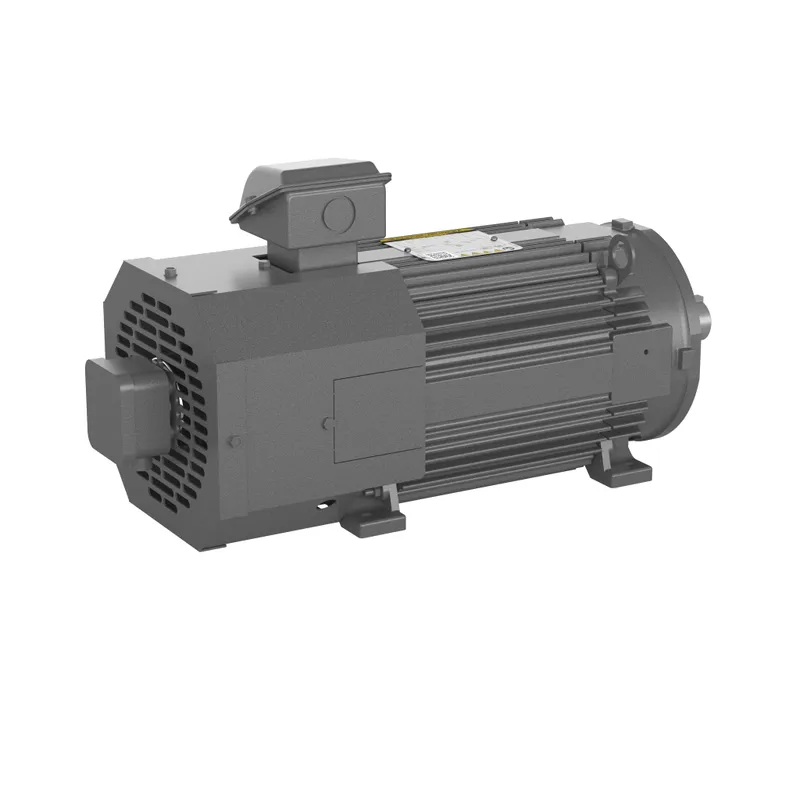

AC VS Laminated Frame - RPMAC 15 Hp 460 V (ZDPM18015C-BV)

Specifications

Ordering

Catalog Number	ZDPM18015C-BV
Brand / Label	Baldor-Reliance
Country or Territory of Origin	United States
Customs Tariff Number	85015220
Minimum Order Quantity	1 piece
Order Multiple	1 piece

Electrical

Ambient Temperature	40 °C
Duty Time	60 Min
Insulation Class	H
Number of Phases	3-phase
Service Factor	1.00
Type of Duty	Continuous
Synchronous Speed (vsyn)	1800 r/min
Output Power	15 Hp

Mechanical

Drive End Flange Type	C-Face
Enclosure Type	TEBC
Frame Material	Aluminum
Motor Frame Size	FL1838C
Motor Base Type	Foot Mounted
Mounting Position	F3
Brake Present	No

Dimensions

Product Net Height	0 in
Product Net Weight	220 lb
Product Net Width	0 in
Dimension Diagram	617229-319

Certificates and Declarations

Certification Agency	CCSA US
IDEA Granular Category Code (IGCC)	1328 >> Multi phase motor AC
ETIM 7	EC001851 - Electric motor
