ABB ZDNRPM21104C

10HP,1750,230_460V,FL2162,TENV,F3

MPN: ZDNRPM21104C
Category: RPM AC Vector Duty

Price and lead time confirmed within 1 business day

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

Have spare ABB parts? We buy surplus →

What is the ABB ZDNRPM21104C?

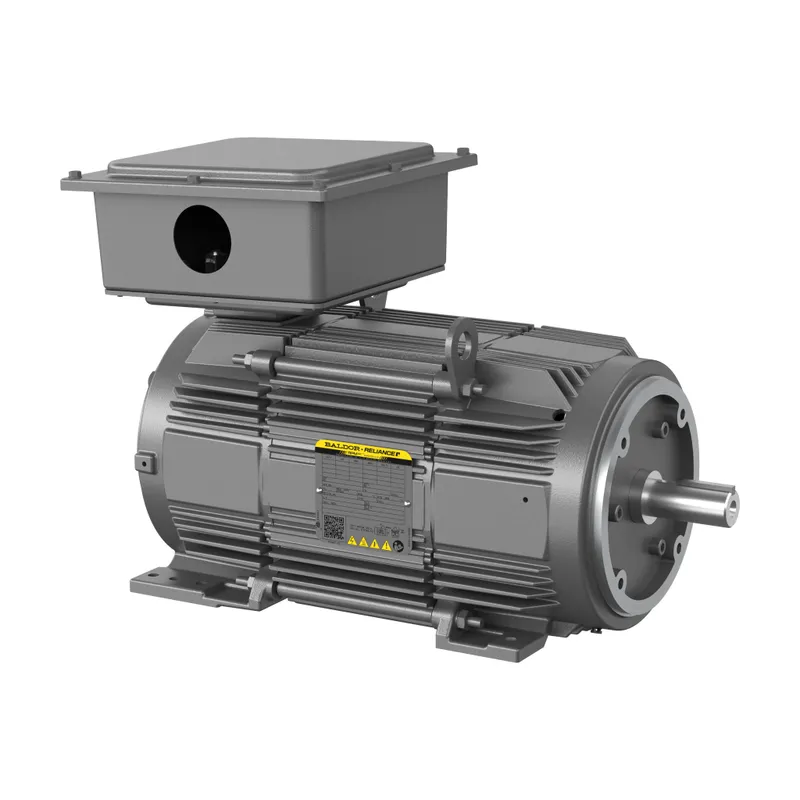

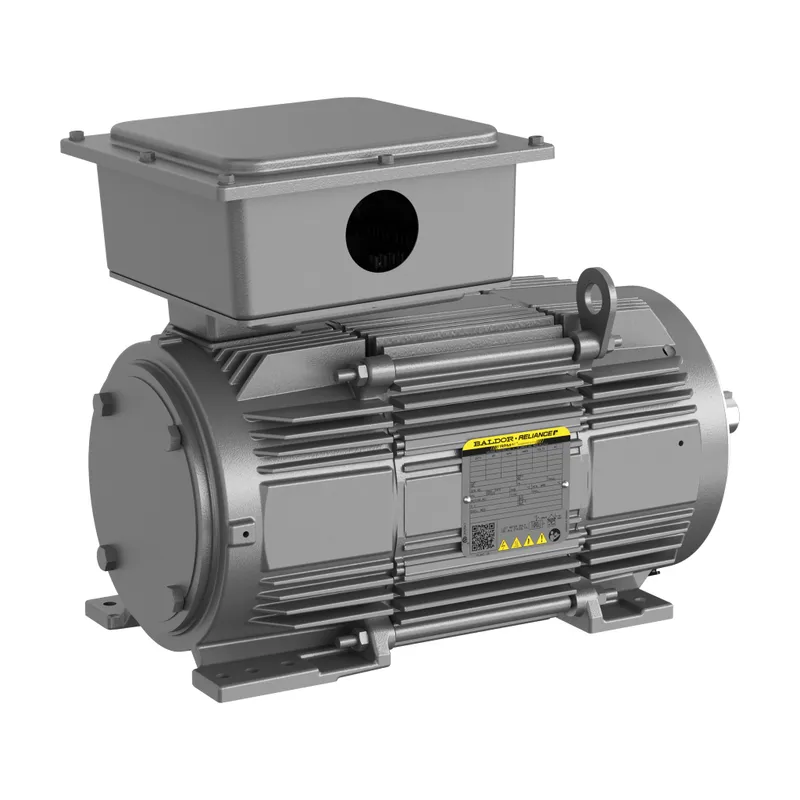

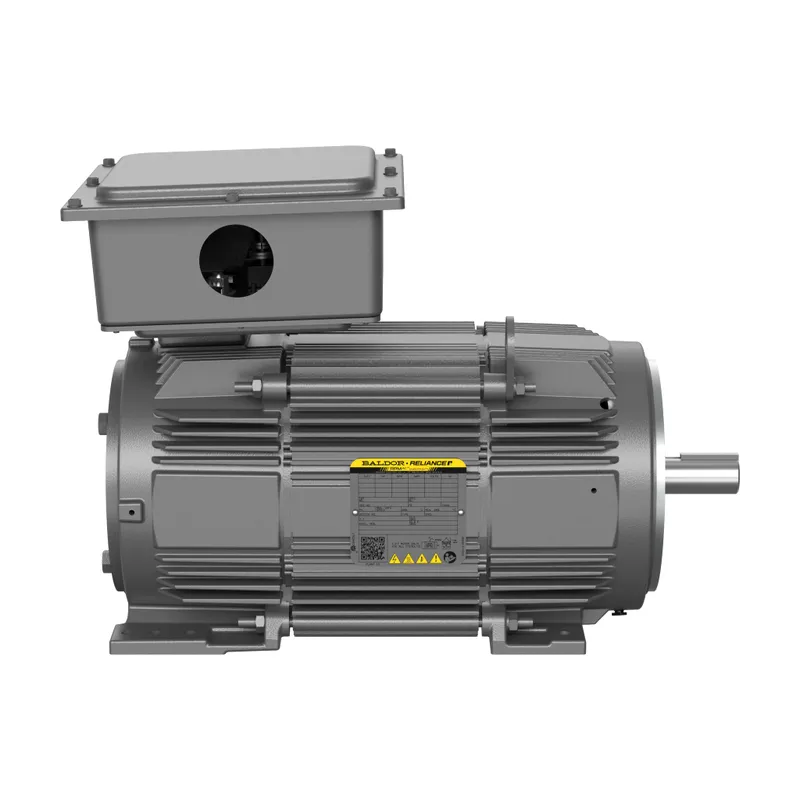

AC VS Laminated Frame - RPMAC 10 Hp 460 V (ZDNRPM21104C)

Specifications

Ordering

Catalog Number	ZDNRPM21104C
Brand / Label	Baldor-Reliance
Country or Territory of Origin	United States
Customs Tariff Number	85015220
Minimum Order Quantity	1 piece
Order Multiple	1 piece

Electrical

Ambient Temperature	40 °C
Duty Time	60 Min
Insulation Class	H
Number of Phases	3-phase
Service Factor	1.00
Type of Duty	Continuous
Synchronous Speed (vsyn)	1800 r/min
Output Power	10 Hp

Mechanical

Drive End Flange Type	C-Face
Enclosure Type	TENV
Frame Material	Explosed Laminations
Motor Frame Size	FL2162C
Motor Base Type	Foot Mounted
Mounting Position	F3
Brake Present	No

Dimensions

Product Net Height	25 in
Product Net Weight	334.001 lb
Product Net Width	26.5 in
Dimension Diagram	617516-374

Certificates and Declarations

Certification Agency	CCSA US, UR
IDEA Granular Category Code (IGCC)	1328 >> Multi phase motor AC
ETIM 7	EC001851 - Electric motor
