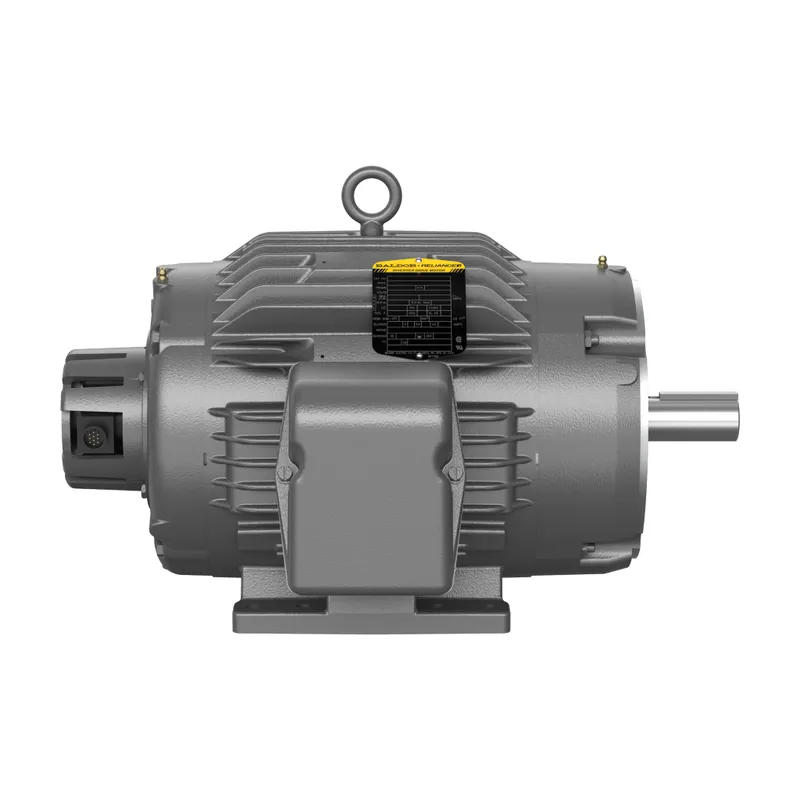

ABB ZDNM3767T

5HP,1765RPM,3PH,60HZ,213TC,0740M,TE

MPN: ZDNM3767T
Category: V*S Master

Price and lead time confirmed within 1 business day

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

Have spare ABB parts? We buy surplus →

What is the ABB ZDNM3767T?

AC Inverter / Vector Duty 5 Hp 230 V (ZDNM3767T)

Specifications

Ordering

Catalog Number	ZDNM3767T
Brand / Label	Baldor-Reliance
Country or Territory of Origin	United States
Customs Tariff Number	85015220
Minimum Order Quantity	1 piece
Order Multiple	1 piece

Electrical

Ambient Temperature	40 °C
Duty Time	60 Min
Efficiency Level	Premium Efficiency (NEMA 12-12)
Insulation Class	H
NEMA Design Code	B
Number of Phases	3-phase
Number of Poles	4P
Number of Speeds	Single Speed
Power Factor	83 %
Rated Efficiency	89.50 %
Service Factor	1.00
Type of Duty	Continuous
Starting of Motor	Direct On Line
Synchronous Speed (vsyn)	1800 r/min
Output Power	5 Hp

Mechanical

Drive End Flange Type	C-Face
Enclosure Type	TENV
Frame Material	Iron
Motor Frame Size	213TC
Motor Base Type	Foot Mounted
Mounting Position	F1
Brake Present	No

Dimensions

Product Net Height	17.625 in
Product Net Weight	173 lb
Product Net Width	18.125 in
Dimension Diagram	07LYJ134

Certificates and Declarations

Certification Agency	CSA, UR
IDEA Granular Category Code (IGCC)	1319 >> Inverter motor AC
ETIM 7	EC001851 - Electric motor
