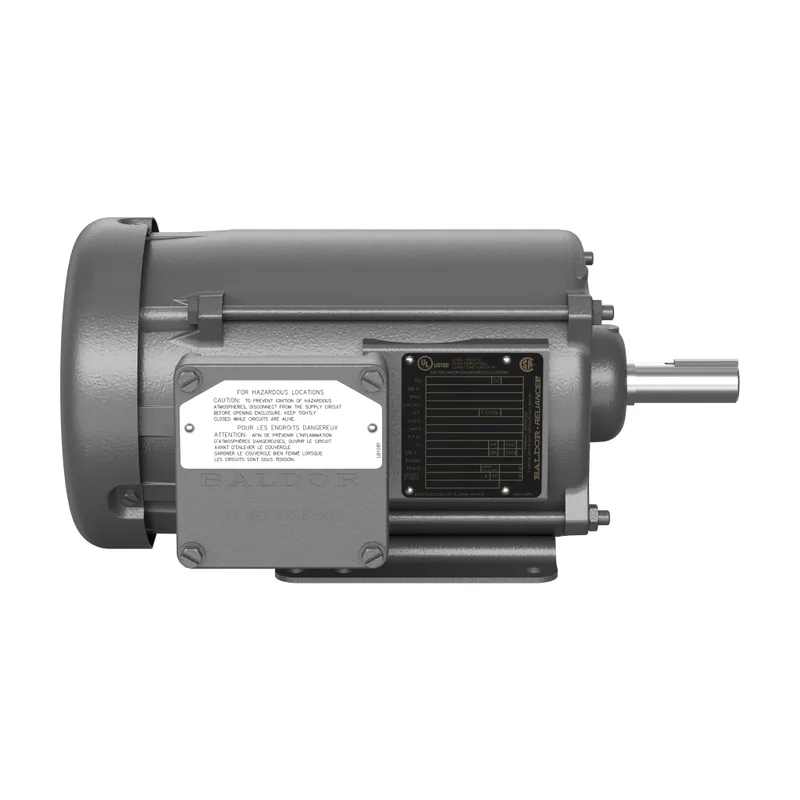

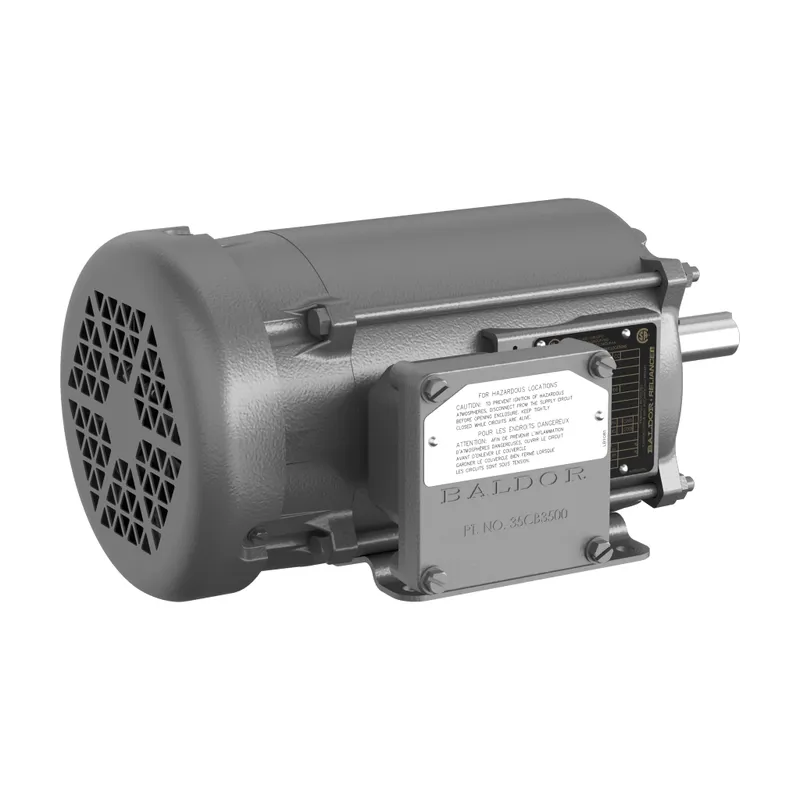

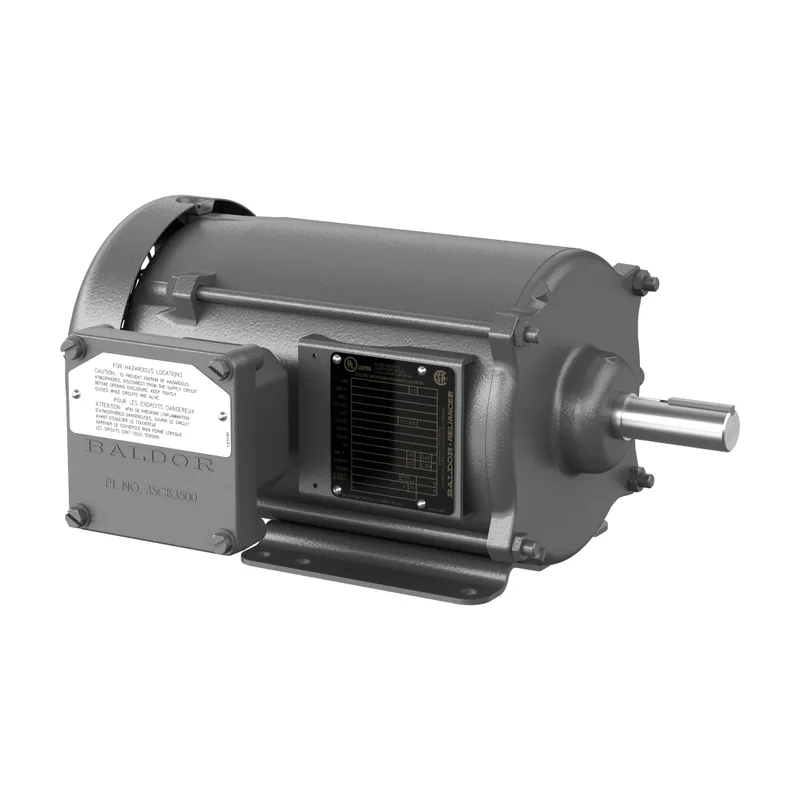

ABB XM140762TA

.75HP,1180RPM,3PH,60HZ,145T,3524M,X

MPN
XM140762TA
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare ABB parts? We buy surplus →

What is the ABB XM140762TA?

Explosion Proof General Purpos 0.750.000 Hp 230 V (XM140762TA)

Specifications

Ordering

Catalog NumberXM140762TA
Brand / LabelBaldor-Reliance
Country or Territory of OriginUnited States
Customs Tariff Number85015100
Minimum Order Quantity1 piece
Order Multiple1 piece

Electrical

Ambient Temperature40 °C
Duty Time60 Min
Efficiency LevelNot Regulated / Exempt
Insulation ClassF
NEMA Design CodeB
Number of Phases3-phase
Number of Poles6P
Number of SpeedsSingle Speed
Power Factor63 %
Rated Efficiency77 %
Service Factor1.00
Temperature ClassT4
Type of DutyContinuous
Starting of MotorDirect On Line
Synchronous Speed (vsyn)1200 r/min
Output Power0.750.000 Hp

Mechanical

Drive End Flange TypeStandard
Enclosure TypeXPFC
Explosion Proof Group ClassClass I, Group D, Class II, Group F & G G
Frame MaterialSteel
Motor Frame Size145T
Motor Base TypeFoot Mounted
Mounting PositionF1
Brake PresentNo

Dimensions

Product Net Height13.123 in
Product Net Weight47 lb
Product Net Width13.75 in
Dimension Diagram35LYE360

Certificates and Declarations

Certification AgencyCSA, UL
ETIM 7EC001851 - Electric motor

XM140762TA: frequently asked questions

When can XM140762TA be shipped?

XM140762TA is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up XM140762TA in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for XM140762TA and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for XM140762TA, subject to availability and destination.
