Home / ABB / XP general purpose / ABB XM051542
ABB

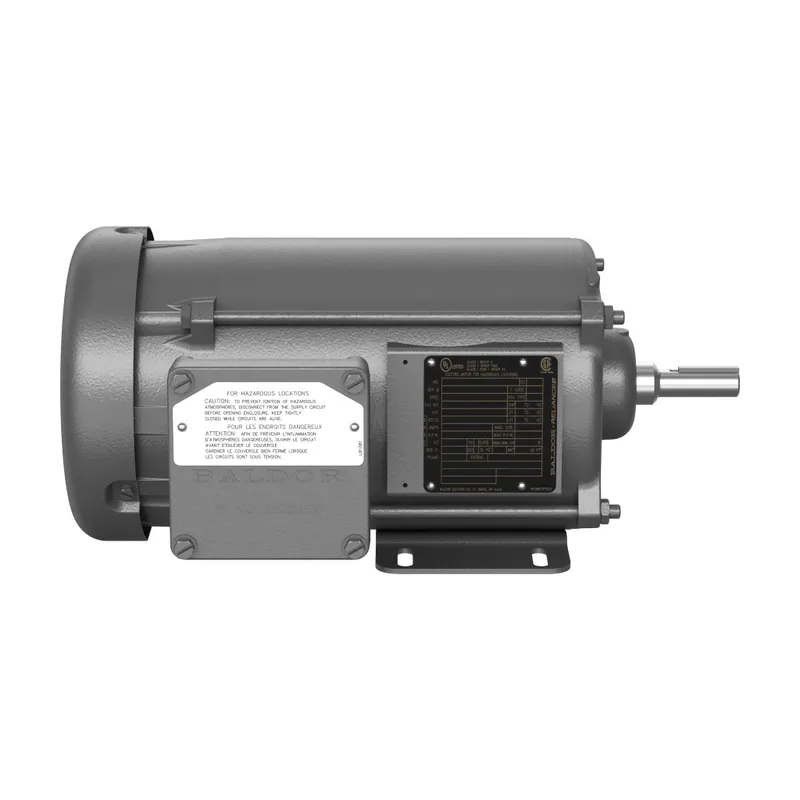

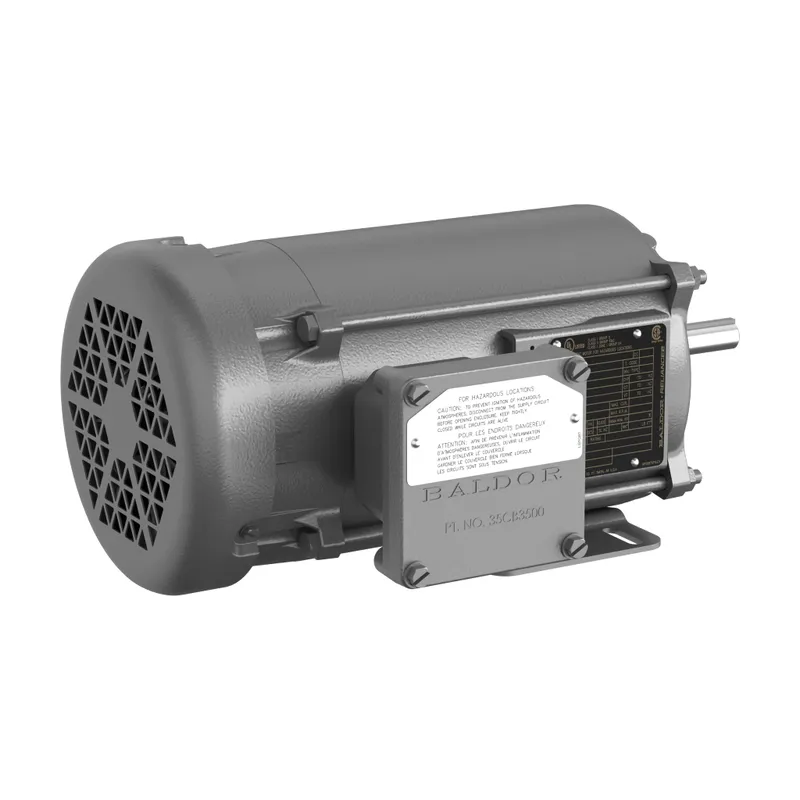

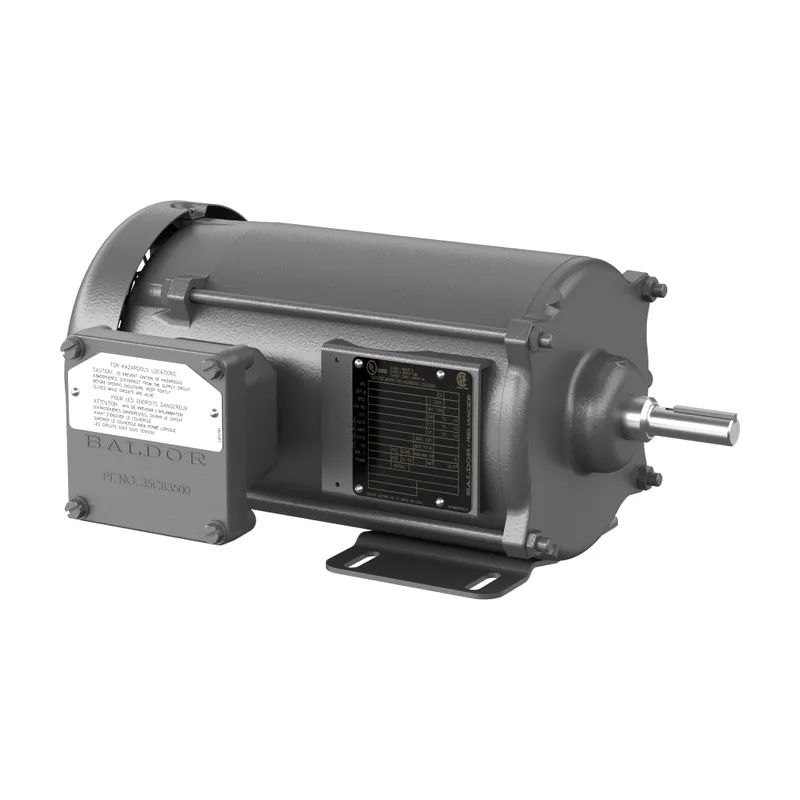

ABB XM051542

1.5//1HP,1770//1475RPM,3PH,60//50HZ

MPN
XM051542
Price and lead time confirmed within 1 business day
Request a Quote

A real person replies, typically within 1 business day — see our privacy policy.

What happens next
  1. We check stock, condition and lead time
  2. You get a written quote by email
  3. Approve it and we ship — in-stock parts within 1 business day
  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • Ships via
  • 100% positive eBay feedback

Have spare ABB parts? We buy surplus →

What is the ABB XM051542?

Explosion Proof General Purpos 1.500 Hp 190 V (XM051542)

Specifications

Ordering

Catalog NumberXM051542
Brand / LabelBaldor-Reliance
Country or Territory of OriginUnited States
Customs Tariff Number85015220
Minimum Order Quantity1 piece
Order Multiple1 piece

Electrical

Ambient Temperature40 °C
Duty Time60 Min
Efficiency LevelIE3, Premium Efficiency (NEMA 12-12)
Insulation ClassF
NEMA Design CodeB
Number of Phases3-phase
Number of Poles4P
Number of SpeedsSingle Speed
Power Factor72 %
Rated Efficiency86.50 %
Service Factor1.00
Temperature ClassT3C
Type of DutyContinuous
Starting of MotorDirect On Line
Synchronous Speed (vsyn)1800 r/min
Output Power1.500 Hp, 1 Hp

Mechanical

Drive End Flange TypeStandard
Enclosure TypeXPFC
Explosion Proof Group ClassClass I, Group D, Class II, Group F & G G
Frame MaterialSteel
Motor Frame Size56
Motor Base TypeFoot Mounted
Mounting PositionF1
Brake PresentNo

Dimensions

Product Net Height15.125 in
Product Net Weight46 lb
Product Net Width16.125 in
Dimension Diagram35LYE356

Certificates and Declarations

Certification AgencyCSA EEV, UL, UR
ETIM 7EC001851 - Electric motor

XM051542: frequently asked questions

When can XM051542 be shipped?

XM051542 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up XM051542 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for XM051542 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for XM051542, subject to availability and destination.
