Home / ABB / Submersible / ABB SUM71504-4
ABB

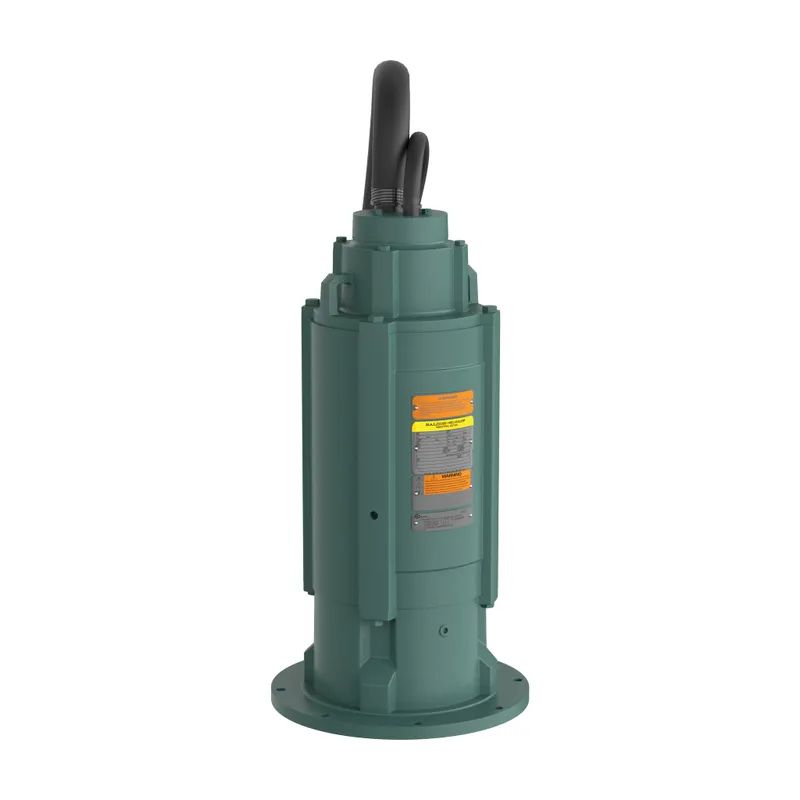

ABB SUM71504-4

15HP,1765RPM,3PH,60HZ,210TY,XPNV,V1

MPN
SUM71504-4
Category
Submersible
Price and lead time confirmed within 1 business day
Request a Quote

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • Ships via

What is the ABB SUM71504-4?

Pump Motor 15 Hp 460 V (SUM71504-4)

Specifications

Ordering

Catalog NumberSUM71504-4
Brand / LabelBaldor-Reliance
Country or Territory of OriginUnited States
Customs Tariff Number85015220
Minimum Order Quantity1 piece
Order Multiple1 piece

Electrical

Ambient Temperature0 °C
Duty Time60 Min
Efficiency LevelNot Regulated / Exempt
Insulation ClassF
NEMA Design CodeB
Number of Phases3-phase
Number of Poles4P
Number of SpeedsSingle Speed
Rated Efficiency85.40 %
Service Factor1.15
Temperature ClassT3C
Type of DutyContinuous
Starting of MotorDirect On Line
Synchronous Speed (vsyn)1800 r/min
Output Power15 Hp

Mechanical

Drive End Flange TypeStandard
Enclosure TypeTENV
Explosion Proof Group ClassClass I, Group C & D
Frame MaterialCast Iron
Motor Frame Size210TY
Motor Base TypeFoot Mounted
Mounting PositionV1
Brake PresentNo

Dimensions

Product Net Height0 in
Product Net Weight257 lb
Product Net Width0 in
Dimension Diagram619738-019

Certificates and Declarations

Certification AgencyCCSA US, CSA, CULUS, UL
IDEA Granular Category Code (IGCC)1326 >> Submersible motor AC
ETIM 7EC001851 - Electric motor

SUM71504-4: frequently asked questions

When can SUM71504-4 be shipped?

SUM71504-4 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up SUM71504-4 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for SUM71504-4 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for SUM71504-4, subject to availability and destination.
