ABB

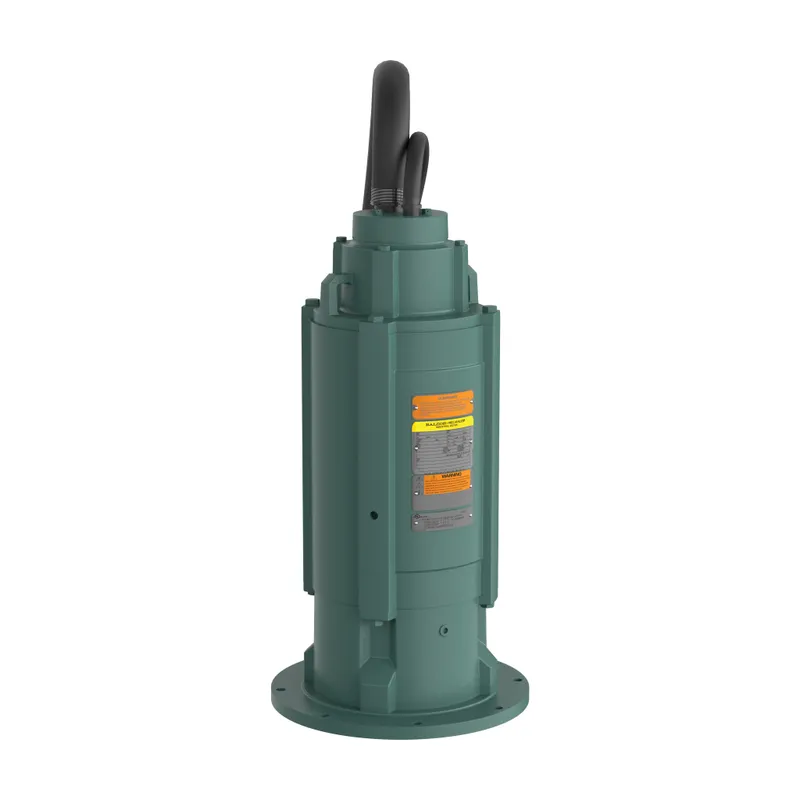

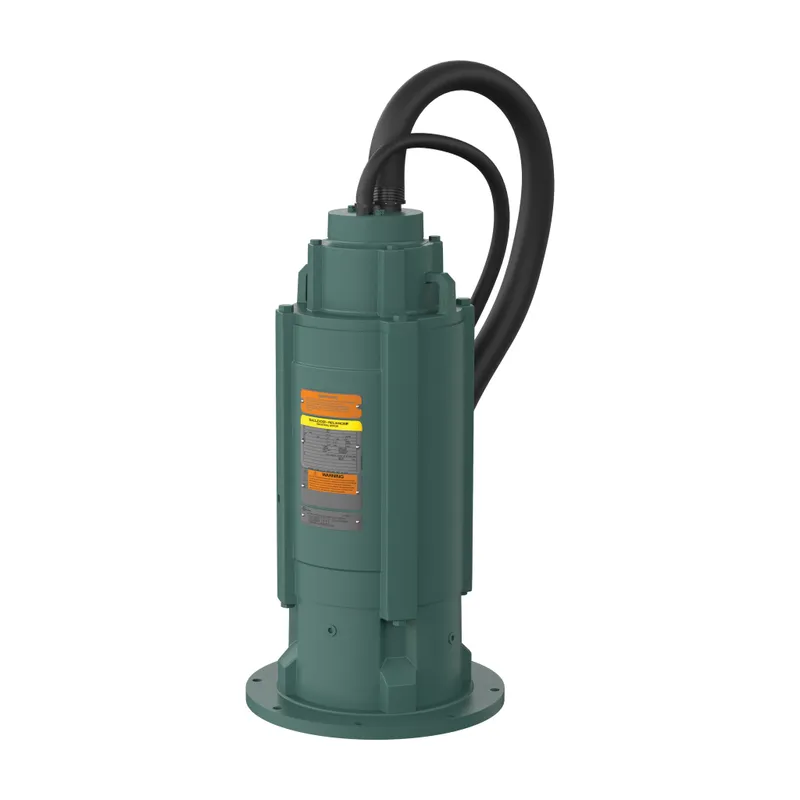

ABB SUM71004

10HP,1765RPM,3PH,60HZ,210TY,XPNV,V1

MPN: SUM71004
Category: Submersible

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the ABB SUM71004?

Pump Motor 10 Hp 230 V (SUM71004)

Specifications

Ordering

Catalog Number	SUM71004
Brand / Label	Baldor-Reliance
Country or Territory of Origin	United States
Customs Tariff Number	85015220
Minimum Order Quantity	1 piece
Order Multiple	1 piece

Electrical

Ambient Temperature	0 °C
Duty Time	60 Min
Efficiency Level	Not Regulated / Exempt
Insulation Class	F
NEMA Design Code	B
Number of Phases	3-phase
Number of Poles	4P
Number of Speeds	Single Speed
Rated Efficiency	85.60 %
Service Factor	1.15
Temperature Class	T3C
Type of Duty	Continuous
Starting of Motor	Direct On Line
Synchronous Speed (vsyn)	1800 r/min
Output Power	10 Hp

Mechanical

Drive End Flange Type	Standard
Enclosure Type	TENV
Explosion Proof Group Class	Class I, Group C & D
Frame Material	Cast Iron
Motor Frame Size	210TY
Motor Base Type	Foot Mounted
Mounting Position	V1
Brake Present	No

Dimensions

Product Net Height	0 in
Product Net Weight	356 lb
Product Net Width	0 in
Dimension Diagram	619738-003

Certificates and Declarations

Certification Agency	CCSA US, CSA, CULUS, UL
IDEA Granular Category Code (IGCC)	1326 >> Submersible motor AC
ETIM 7	EC001851 - Electric motor
