Home / ABB / Submersible / ABB SUM73006-4

ABB

ABB SUM73006-4

30HP,RPM,3PH,60HZ,320TY,XPNV,V1

MPN: SUM73006-4
Category: Submersible

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the ABB SUM73006-4?

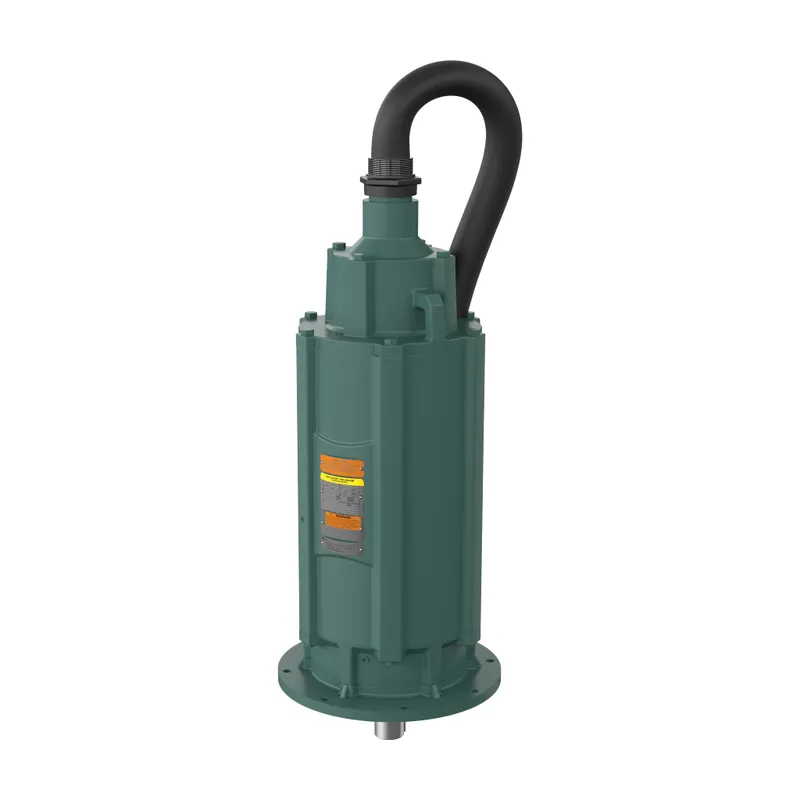

Pump Motor 30 Hp 460 V (SUM73006-4)

Specifications

Ordering

Catalog Number	SUM73006-4
Brand / Label	Baldor-Reliance
Country or Territory of Origin	United States
Customs Tariff Number	85015230
Minimum Order Quantity	1 piece
Order Multiple	1 piece

Electrical

Ambient Temperature	0 °C
Duty Time	60 Min
Efficiency Level	Not Regulated / Exempt
Insulation Class	F
NEMA Design Code	B
Number of Phases	3-phase
Number of Poles	6P
Number of Speeds	Single Speed
Rated Efficiency	89.70 %
Service Factor	1.15
Temperature Class	T3C
Type of Duty	Continuous
Starting of Motor	Direct On Line
Synchronous Speed (vsyn)	1200 r/min
Output Power	30 Hp

Mechanical

Drive End Flange Type	Standard
Enclosure Type	TENV
Explosion Proof Group Class	Class I, Group C & D
Frame Material	Cast Iron
Motor Frame Size	320TY
Motor Base Type	Foot Mounted
Mounting Position	V1
Brake Present	No

Dimensions

Product Net Height	53 in
Product Net Weight	826 lb
Product Net Width	44 in
Dimension Diagram	619738-007

Certificates and Declarations

Certification Agency	CCSA US, CULUS
IDEA Granular Category Code (IGCC)	1326 >> Submersible motor AC
ETIM 7	EC001851 - Electric motor
