ABB HBEM3546T

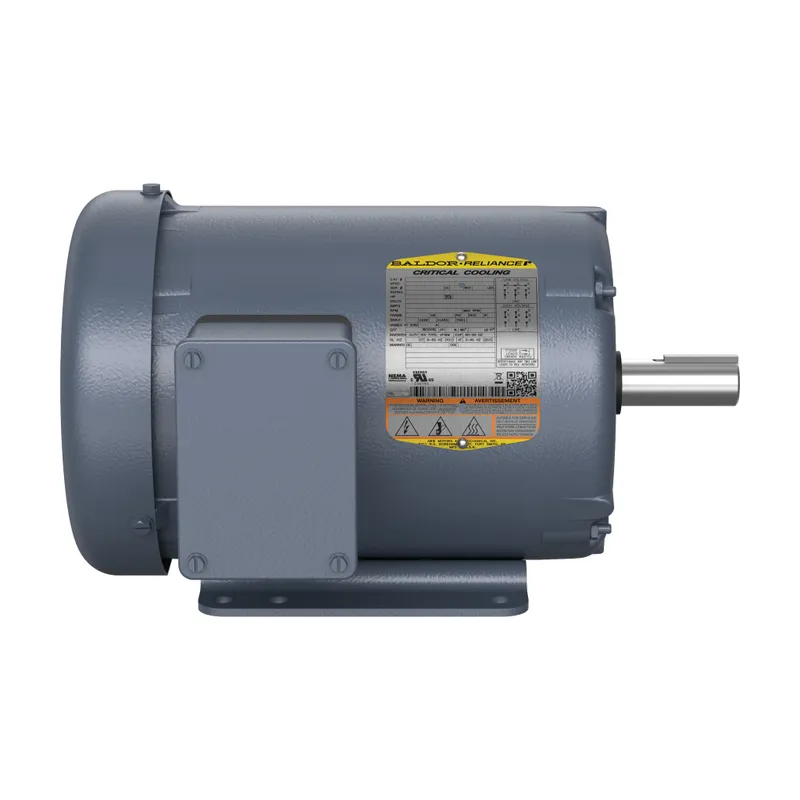

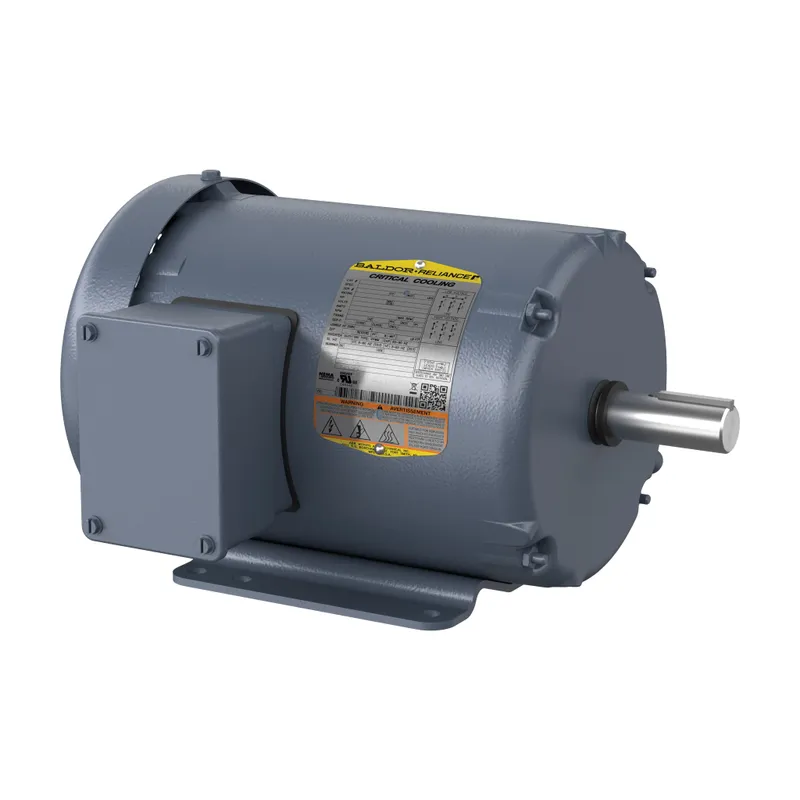

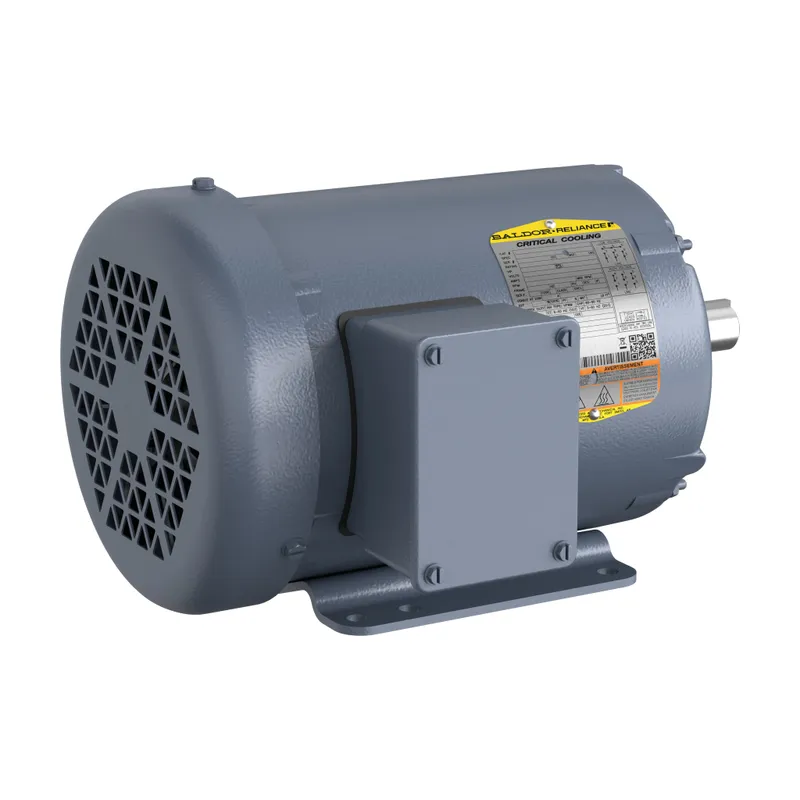

20M 4P TEFC HOR 143T

MPN: HBEM3546T
Category: Critical Cooling

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the ABB HBEM3546T?

Critical Cooling 1 Hp 230 V (HBEM3546T)

Specifications

Ordering

Catalog Number	HBEM3546T
Brand / Label	Baldor-Reliance
Country or Territory of Origin	United States
Customs Tariff Number	84145980
Minimum Order Quantity	1 piece
Order Multiple	1 piece

Electrical

Ambient Temperature	40 °C
Duty Time	60 Min
Efficiency Level	Not Regulated / Exempt, Premium Efficiency (NEMA 12-12)
Insulation Class	H
NEMA Design Code	B
Number of Phases	3-phase
Number of Poles	4P
Number of Speeds	Single Speed
Power Factor	67 %
Rated Efficiency	85.50 %
Service Factor	1.15
Type of Duty	Continuous
Starting of Motor	Direct On Line
Synchronous Speed (vsyn)	1800 r/min
Output Power	1 Hp

Mechanical

Drive End Flange Type	Standard
Enclosure Type	TEFC
Frame Material	Steel
Motor Frame Size	143T
Motor Base Type	Foot Mounted
Mounting Position	F1
Brake Present	No

Dimensions

Product Net Height	13.123 in
Product Net Weight	58 lb
Product Net Width	13.75 in
Dimension Diagram	35LYE5738

Certificates and Declarations

Certification Agency	CURUSEEV, NEMA_PREMIUM, WEEE
ETIM 7	EC001851 - Electric motor
