ABB HBEM2334T

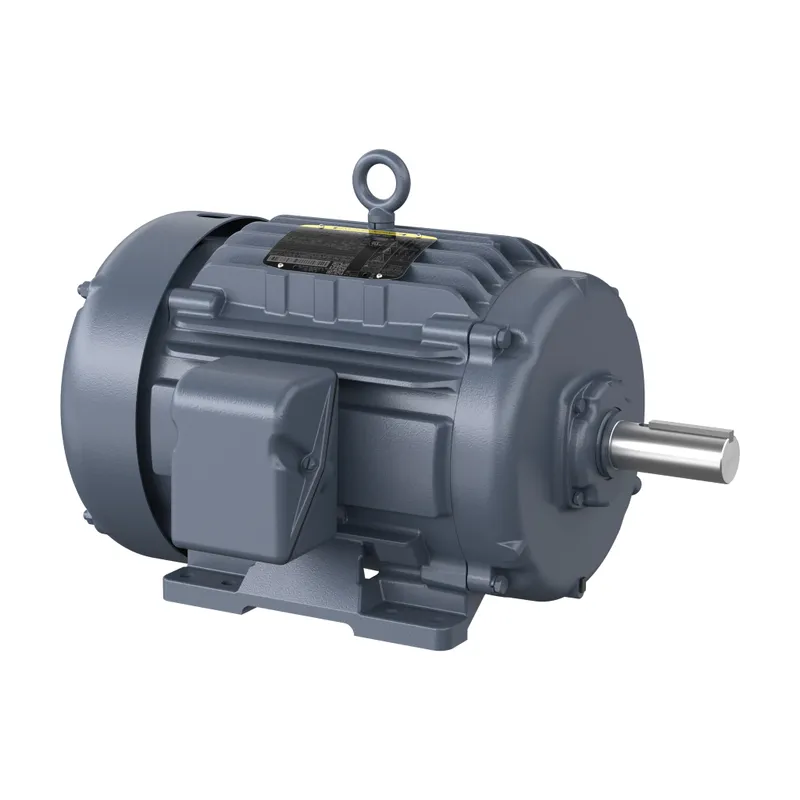

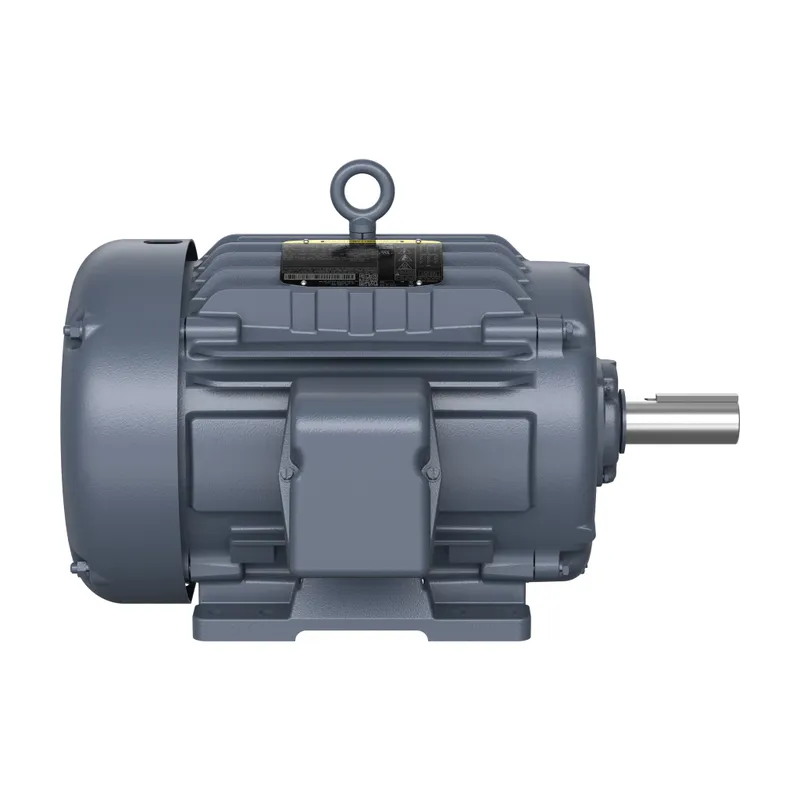

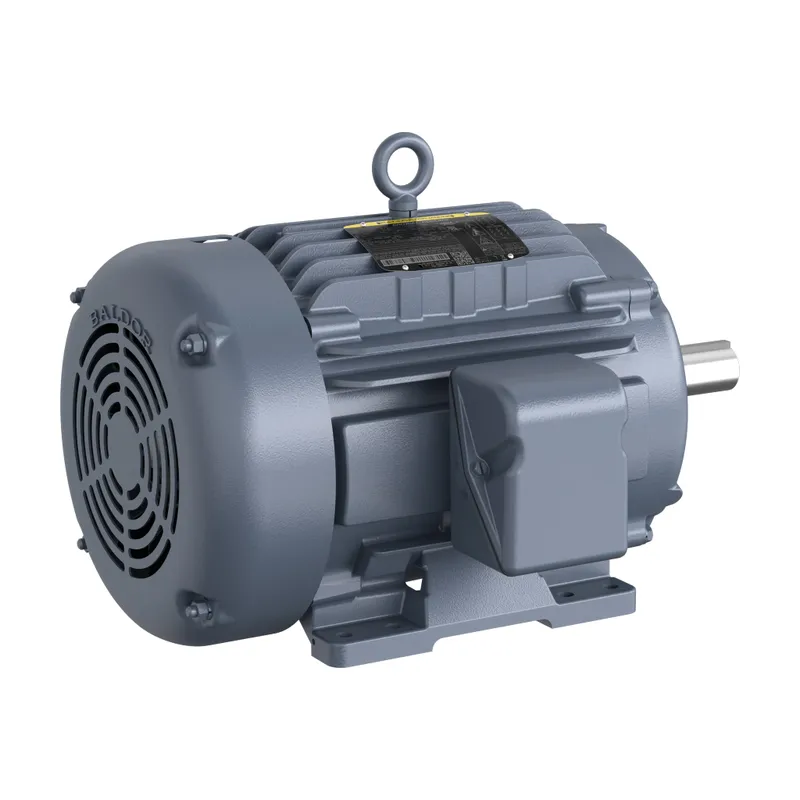

60M 4P TEFC HOR 256T

MPN: HBEM2334T
Category: Critical Cooling

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the ABB HBEM2334T?

Critical Cooling 20 Hp 230 V (HBEM2334T)

Specifications

Ordering

Catalog Number	HBEM2334T
Brand / Label	Baldor-Reliance
Country or Territory of Origin	United States
Customs Tariff Number	8466939885
Minimum Order Quantity	1 piece
Order Multiple	1 piece

Electrical

Ambient Temperature	40 °C
Duty Time	60 Min
Efficiency Level	Premium Efficiency (NEMA 12-12)
Insulation Class	H
NEMA Design Code	A A
Number of Phases	3-phase
Number of Poles	4P
Number of Speeds	Single Speed
Power Factor	83 %
Rated Efficiency	93 %
Service Factor	1.15
Type of Duty	Continuous
Starting of Motor	Direct On Line
Synchronous Speed (vsyn)	1800 r/min
Output Power	20 Hp

Mechanical

Drive End Flange Type	Standard
Enclosure Type	TEFC
Frame Material	Cast Iron
Motor Frame Size	256T
Motor Base Type	Foot Mounted
Mounting Position	F1
Brake Present	No

Dimensions

Product Net Height	17.438 in
Product Net Weight	322 lb
Product Net Width	20.5 in
Dimension Diagram	09LYT116

Certificates and Declarations

Certification Agency	CURUSEEV, NEMA_PREMIUM, WEEE
ETIM 7	EC001851 - Electric motor

HBEM2334T: frequently asked questions

When can HBEM2334T be shipped?

HBEM2334T is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up HBEM2334T in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for HBEM2334T and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for HBEM2334T, subject to availability and destination.
