Home / ABB / XP general purpose / ABB EM7114T

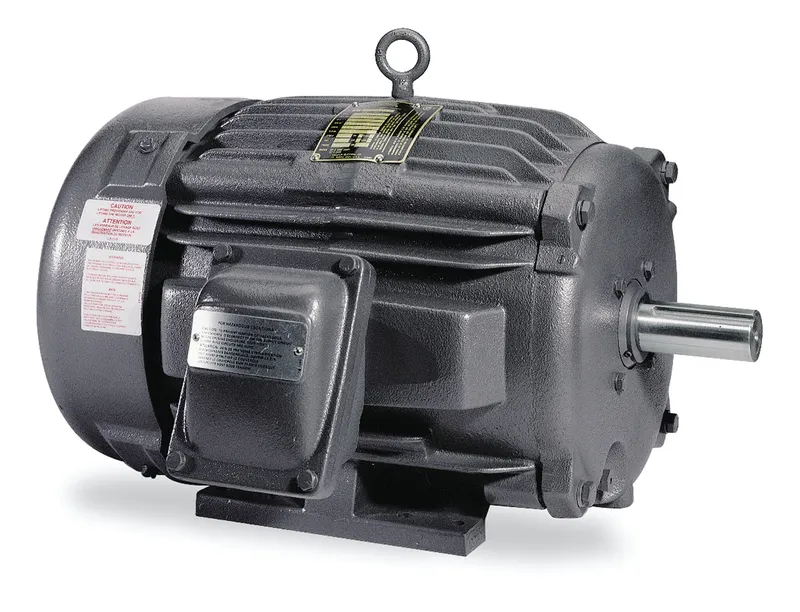

ABB EM7114T

1//.75HP,1760//1460RPM,3PH,60//50HZ

MPN: EM7114T
Category: XP general purpose

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the ABB EM7114T?

- 460 V (EM7114T)

Specifications

Ordering

Catalog Number	EM7114T
Brand / Label	Baldor-Reliance
Country or Territory of Origin	United States
Customs Tariff Number	85015100
Minimum Order Quantity	0.000 piece
Order Multiple	0.000 piece

Electrical

Ambient Temperature	40 °C
Efficiency Level	2015 Small Motor Standard, IE3, Not Regulated / Exempt, Premium Efficiency (NEMA 12-12)
Insulation Class	B
NEMA Design Code	B
Number of Phases	3-phase
Number of Poles	4P
Number of Speeds	Single Speed
Power Factor	71 %
Rated Efficiency	85.5 %
Service Factor	1.00
Temperature Class	T3C
Type of Duty	CONT
Starting of Motor	Direct On Line

Mechanical

Enclosure Type	XPFC
Explosion Proof Group Class	CLI GP D, CLII GP F,G G
Frame Material	Iron
Motor Frame Size	143T
Motor Base Type	Rigid
Brake Present	No

Dimensions

Product Net Weight	35.412 kg kg
Dimension Diagram	05LYE346

Certificates and Declarations

Certification Agency	CSA, UL
IDEA Granular Category Code (IGCC)	1325 >> General purpose motor AC
ETIM 7	EC001851 - Electric motor
