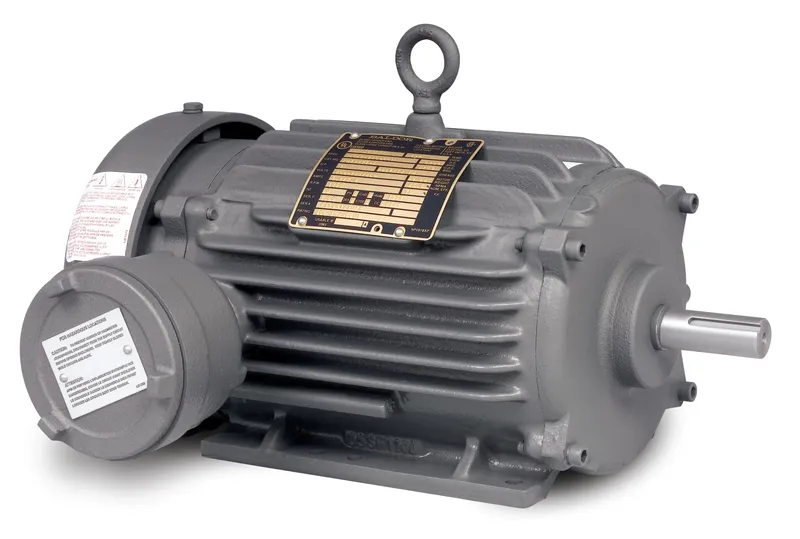

ABB EM7114T-C

1//.75HP,1760//1460RPM,3PH,60//50HZ

MPN
EM7114T-C
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare ABB parts? We buy surplus →

What is the ABB EM7114T-C?

0.750 hp, 1.000 hp, 1760//1460 RPM, 3PH, 230/460//190/380 V, 60//50 Hz, XPFC, 143T, F1

Specifications

Additional Information

ABB Type Designation1//.75HP,1760//1460RPM,3PH,60//50HZ
Ambient Temperature40 °C
Bearing6205
Bearing NDE6203
Brake PresentNo
Brand / LabelBaldor-Reliance
Catalog NumberEM7114T-C
Certification AgencyCSA, UL, UR
Country or Territory of OriginUnited States
Customs Tariff Number85015100
DesignB
Dimension Diagram05LYE347
Efficiency Level2015 Small Motor Standard, IE3, Not Regulated / Exempt, Premium Efficiency (NEMA 12-12)
Enclosure TypeXPFC
ETIM 7EC001851 - Electric motor
Explosion Proof Group ClassCLI GP C,D, CLII GP F,G G
Explosion ProtectionExplosion-proof
Frame MaterialIron
Frame SizeUndefined
Frequency (f)50 Hz, 60 Hz Hz
Global Commercial AliasEM7114T-C
Gross Weight35.412 kg kg
Horsepower Rating UL/CSA0.750 Hp, 1.000 Hp
IDEA Granular Category Code (IGCC)1325 >> General purpose motor AC
Insulation ClassB
Invoice Description0.750 hp, 1.000 hp, 1760//1460 RPM, 3PH, 230/460//190/380 V, 60//50 Hz, XPFC, 143T, F1 V
Made To OrderNo
Marketing Description0.750 hp, 1.000 hp, 1760//1460 RPM, 3PH, 230/460//190/380 V, 60//50 Hz, XPFC, 143T, F1 V
Minimum Order Quantity0.000 piece
Motor Base TypeRigid
Motor Frame Size143T
NEMA Design CodeB
Number of Phases3-phase
Number of Poles4P
Number of SpeedsSingle Speed
Order Multiple0.000 piece
Power Factor71 %
Product NameExplosion Proof Motors
Product Net Depth / Length16.28 in
Product Net Weight35.412 kg kg
Quote OnlyNo
Rated Current (In)3 A, 1.5 A, 3 A, 1.4 A A
Rated Efficiency85.5 %
Rated Speed1,760 r/min, 1,460 r/min
RoHS DeclarationRoHS Compliant
Selling Unit of Measurepiece
Service Factor Percentage1.00 %
Shaft Diameter0.875 in
StandardsNEMA
Starting of MotorDirect On Line
Stocked At (Warehouses)China, Fort Smith, Arkansas, United States, Alaska, United States
Temperature ClassT4
Type of DutyCONT
UNSPSC26101112
Voltage Rating460 V, 380 V, 230 V, 190 V V

EM7114T-C: frequently asked questions

When can EM7114T-C be shipped?

EM7114T-C is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up EM7114T-C in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for EM7114T-C and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for EM7114T-C, subject to availability and destination.
