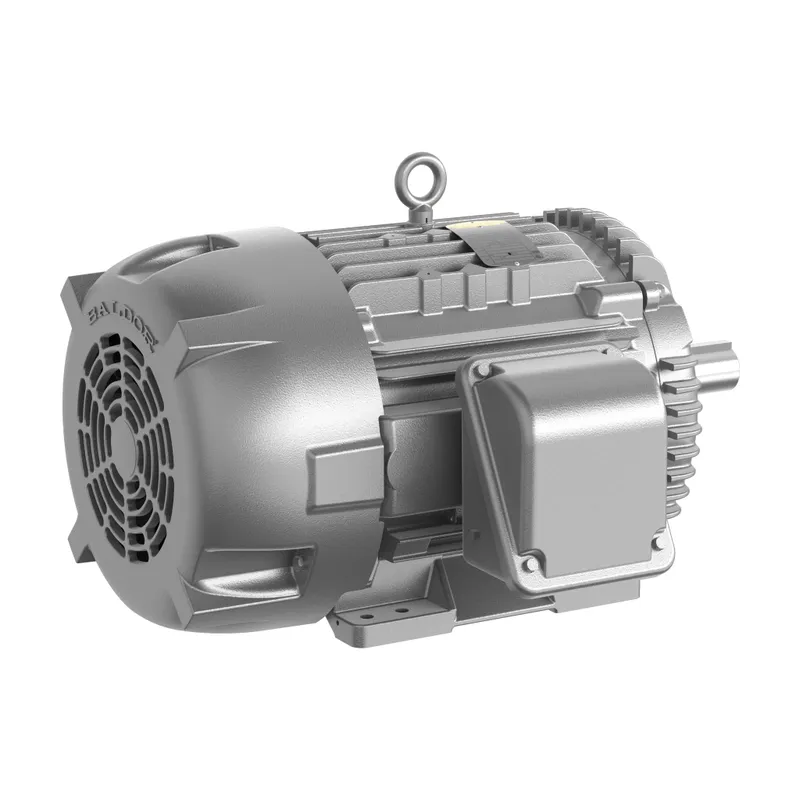

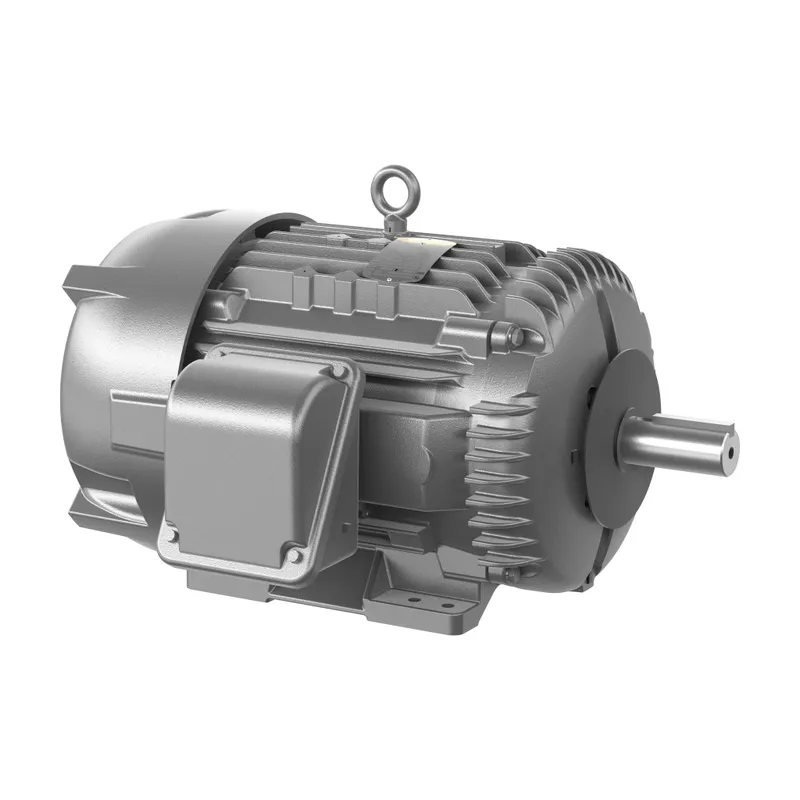

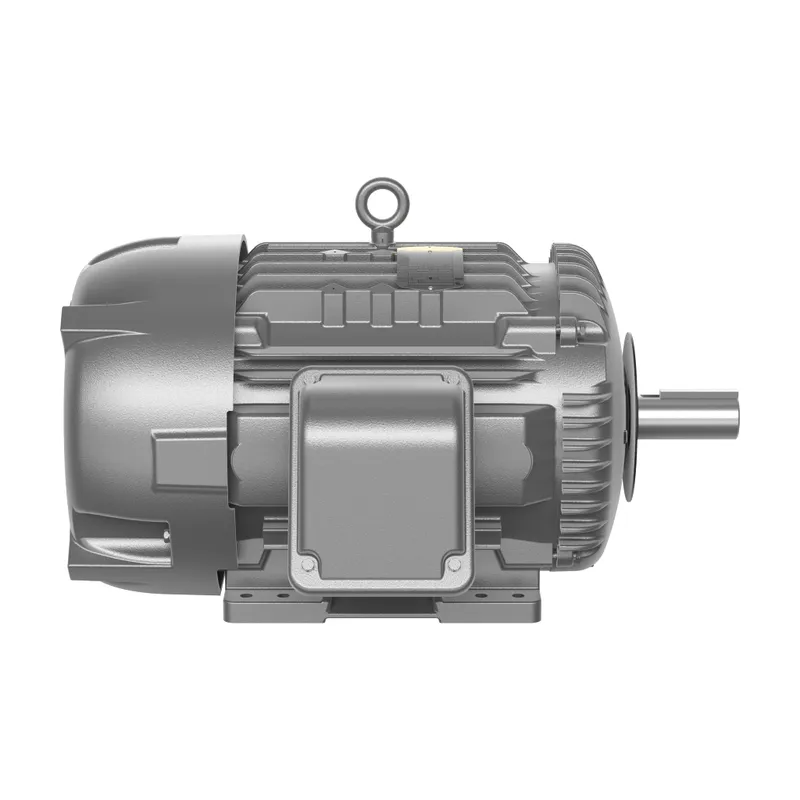

ABB ECTM4102T-G

20HP,1180RPM,3PH,60HZ,286T,1054M,TE

MPN
ECTM4102T-G
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare ABB parts? We buy surplus →

What is the ABB ECTM4102T-G?

Chiller/Cooling Tower Motors 20 Hp 230 V (ECTM4102T-G)

Specifications

Ordering

Catalog NumberECTM4102T-G G
Brand / LabelBaldor-Reliance®
Country or Territory of OriginUnited States
Customs Tariff Number85015220
Minimum Order Quantity1 piece
Order Multiple1 piece

Electrical

Ambient Temperature40 °C
Efficiency LevelIE3, Not Regulated / Exempt, Premium Efficiency (NEMA 12-12)
Insulation ClassF
NEMA Design CodeA A
Number of Phases3-phase
Number of Poles6P
Number of Speedssingle_speed
Power Factor77 %
Rated Efficiency91.70 %
Service Factor1.15
Type of DutyContinuous
Starting of MotorDirect on line
Synchronous Speed (vsyn)1200 r/min
Output Power20 Hp

Mechanical

Drive End Flange TypeStandard
Enclosure TypeTEFC
Frame MaterialIron
Motor Frame Size286T
Motor Base TypeFoot Mounted
Mounting PositionF1
Brake PresentNo

Dimensions

Product Net Height19.625 in
Product Net Weight437 lb
Product Net Width23.75 in

Certificates and Declarations

Certification AgencyCSA EEV, CURUSEEV, NEMA_PREMIUM

ECTM4102T-G: frequently asked questions

When can ECTM4102T-G be shipped?

ECTM4102T-G is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up ECTM4102T-G in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for ECTM4102T-G and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for ECTM4102T-G, subject to availability and destination.
