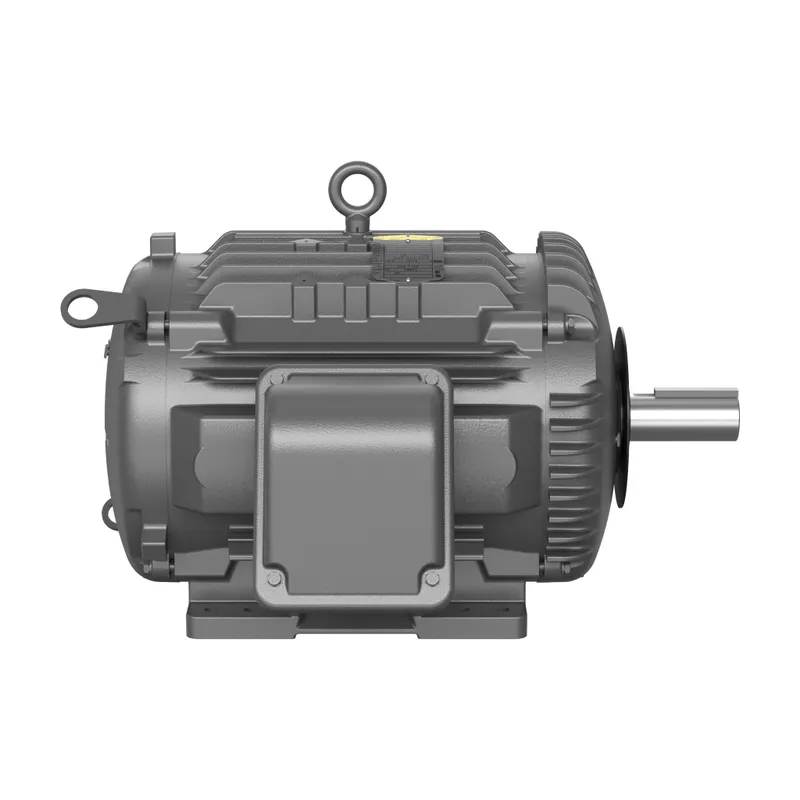

ABB ECTM4100T-G-AO

15 AIR OVERHP,1175RPM,3PH,60HZ,284T

MPN
ECTM4100T-G-AO
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare ABB parts? We buy surplus →

What is the ABB ECTM4100T-G-AO?

Chiller/Cooling Tower Motors 15 Hp 230 V (ECTM4100T-G-AO)

Specifications

Ordering

Catalog NumberECTM4100T-G-AO G
Brand / LabelBaldor-Reliance®
Country or Territory of OriginUnited States
Customs Tariff Number85015220
Minimum Order Quantity1 piece
Order Multiple1 piece

Electrical

Ambient Temperature40 °C
Efficiency LevelPremium Efficiency (NEMA 12-12)
Insulation ClassF
NEMA Design CodeA A
Number of Phases3-phase
Number of Poles6P
Number of Speedssingle_speed
Power Factor73 %
Rated Efficiency91.70 %
Service Factor1.15
Type of DutyContinuous
Starting of MotorDirect on line
Synchronous Speed (vsyn)1200 r/min
Output Power15 Hp

Mechanical

Drive End Flange TypeStandard
Enclosure TypeTEAO
Frame MaterialIron
Motor Frame Size284T
Motor Base TypeFoot Mounted
Mounting PositionF1
Brake PresentNo

Dimensions

Product Net Height19.625 in
Product Net Weight391 lb
Product Net Width23.75 in

Certificates and Declarations

Certification AgencyC UR US, CSA EEV, NEMA_PREMIUM
