Home / ABB / XP Drill Rig Duty / ABB DRX21565T

ABB

ABB DRX21565T

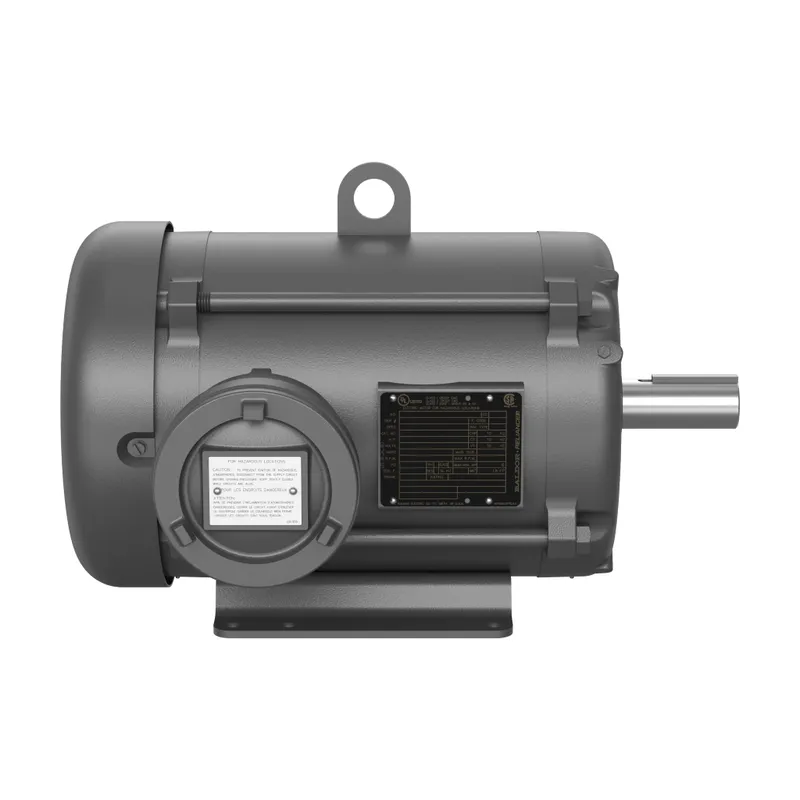

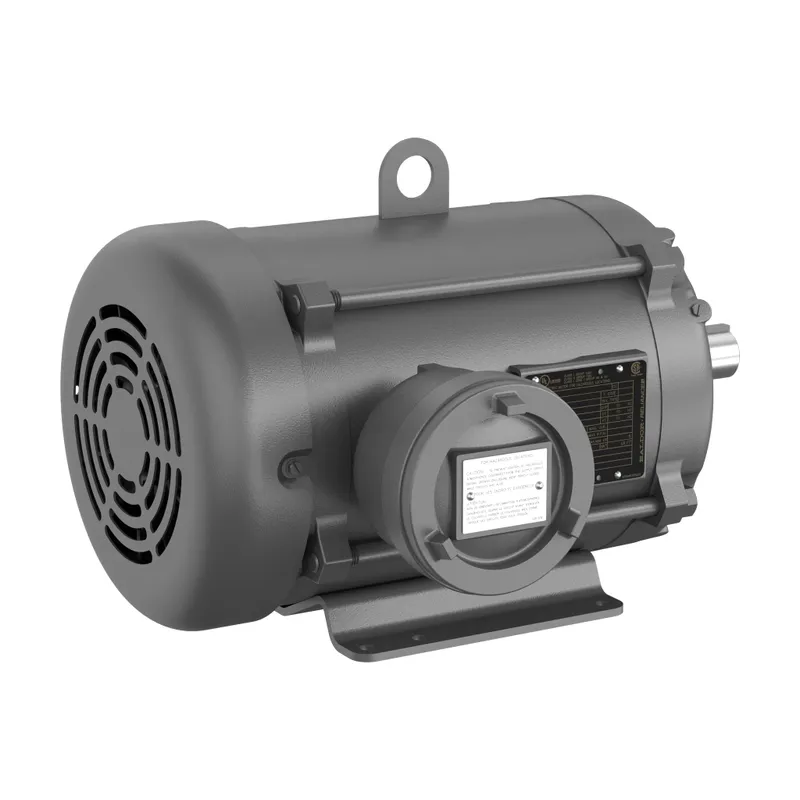

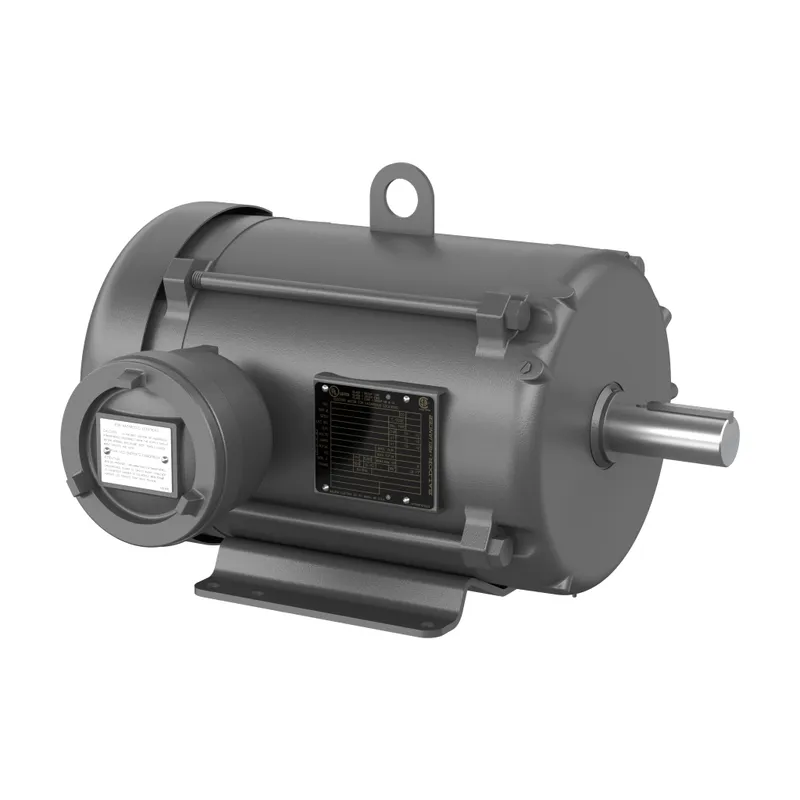

52M 6P XPFC HOR 215T T'STATS, INVE

MPN: DRX21565T
Category: XP Drill Rig Duty

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare ABB parts? We buy surplus →

What is the ABB DRX21565T?

Explosion Proof General Purpos 3 Hp 190 V (DRX21565T)

Specifications

Ordering

Catalog Number	DRX21565T
Brand / Label	Baldor-Reliance®
Country or Territory of Origin	United States
Customs Tariff Number	85015220
Minimum Order Quantity	1 piece
Order Multiple	1 piece

Electrical

Ambient Temperature	40 °C
Efficiency Level	IE3, Premium Efficiency (NEMA 12-12)
Insulation Class	F
NEMA Design Code	A A
Number of Phases	3-phase
Number of Poles	6P
Number of Speeds	single_speed
Power Factor	71 %
Rated Efficiency	89.50 %
Service Factor	1.00
Temperature Class	T3C
Type of Duty	Continuous
Starting of Motor	Direct on line
Synchronous Speed (vsyn)	1000 r/min, 1200 r/min
Output Power	3 Hp, 5 Hp

Mechanical

Drive End Flange Type	Standard
Enclosure Type	XPFC
Explosion Proof Group Class	Class I, Group C & D, Class II, Group F & G G
Frame Material	Steel
Motor Frame Size	215T
Motor Base Type	Foot Mounted
Mounting Position	F1
Brake Present	No

Dimensions

Product Net Height	17.375 in
Product Net Weight	184 lb
Product Net Width	16.5 in

Certificates and Declarations

Certification Agency

CSA EEV, UL
