Home / ABB / XP Drill Rig Duty / ABB DRX21364T

ABB

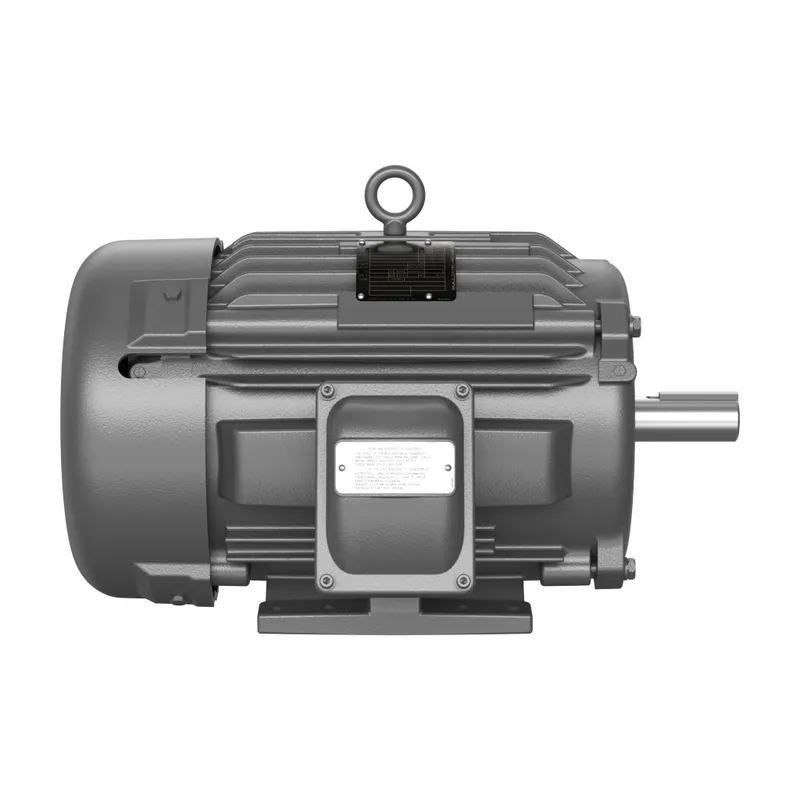

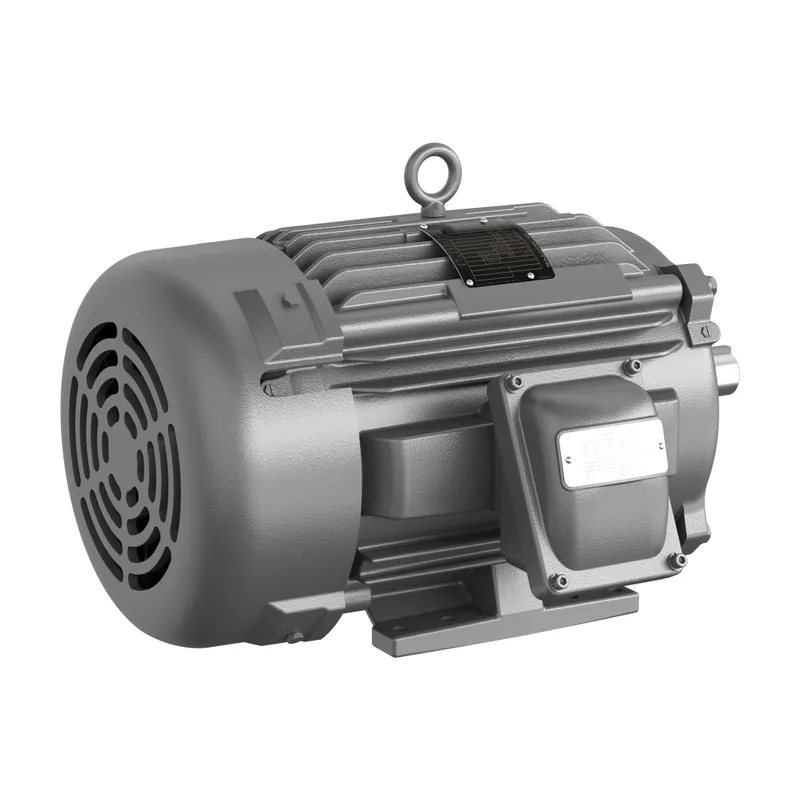

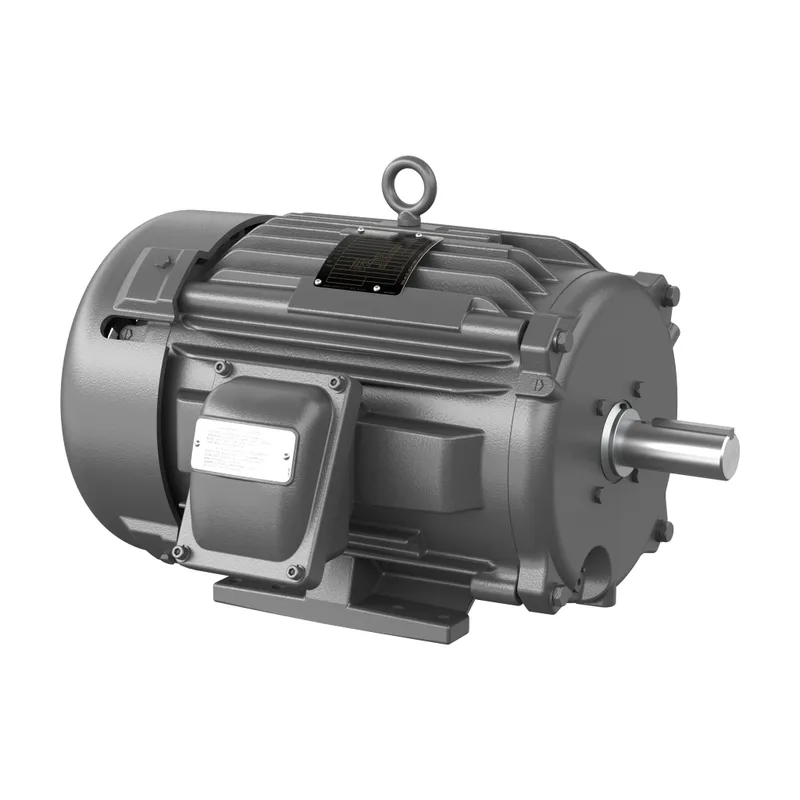

ABB DRX21364T

3HP,1165//970RPM,3PH,60HZ,213T,XPFC

MPN: DRX21364T
Category: XP Drill Rig Duty

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare ABB parts? We buy surplus →

What is the ABB DRX21364T?

Explosion Proof Drill Rig Duty 2 Hp 190 V (DRX21364T)

Specifications

Ordering

Catalog Number	DRX21364T
Brand / Label	Baldor-Reliance
Country or Territory of Origin	United States
Customs Tariff Number	85015220
Minimum Order Quantity	1 piece
Order Multiple	1 piece

Electrical

Ambient Temperature	40 °C
Duty Time	60 Min
Efficiency Level	Premium Efficiency (NEMA 12-12)
Insulation Class	F
NEMA Design Code	B
Number of Phases	3-phase
Number of Poles	6P
Number of Speeds	Single Speed
Power Factor	72 %
Rated Efficiency	89.60 %
Service Factor	1.00
Temperature Class	T3C
Type of Duty	Continuous
Starting of Motor	Direct On Line
Synchronous Speed (vsyn)	1200 r/min
Output Power	2 Hp, 3.000 Hp

Mechanical

Drive End Flange Type	Standard
Enclosure Type	TEFC
Explosion Proof Group Class	Class I, Group C & D
Frame Material	Cast Iron
Motor Frame Size	213T
Motor Base Type	Foot Mounted
Mounting Position	F1
Brake Present	No

Dimensions

Product Net Height	17.625 in
Product Net Weight	200 lb
Product Net Width	18.125 in
Dimension Diagram	07LYJ231

Certificates and Declarations

Certification Agency	CSA EEV, UL, UR
IDEA Granular Category Code (IGCC)	1325 >> General purpose motor AC
ETIM 7	EC001851 - Electric motor
