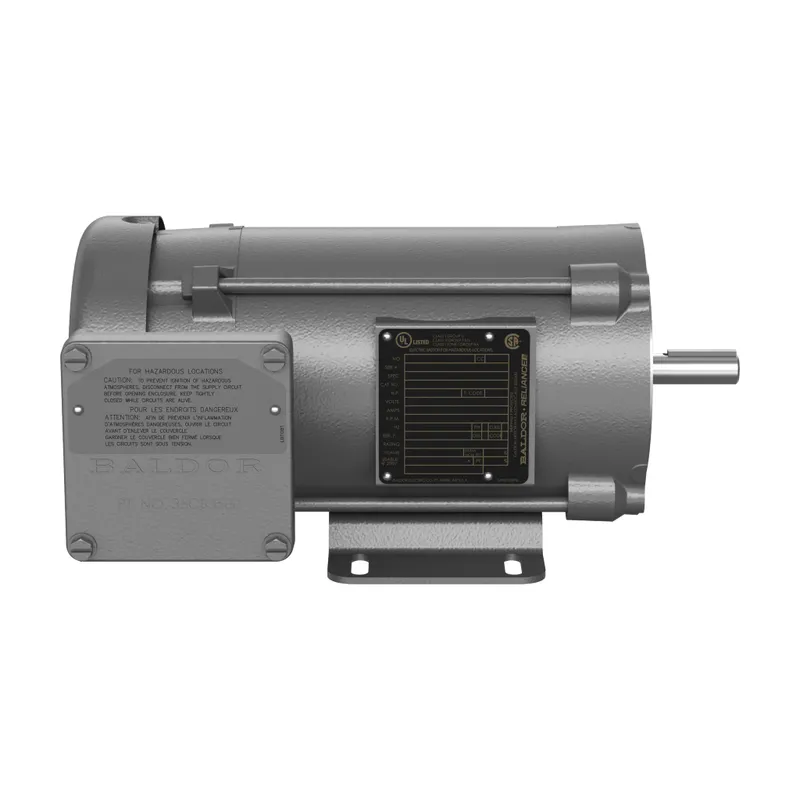

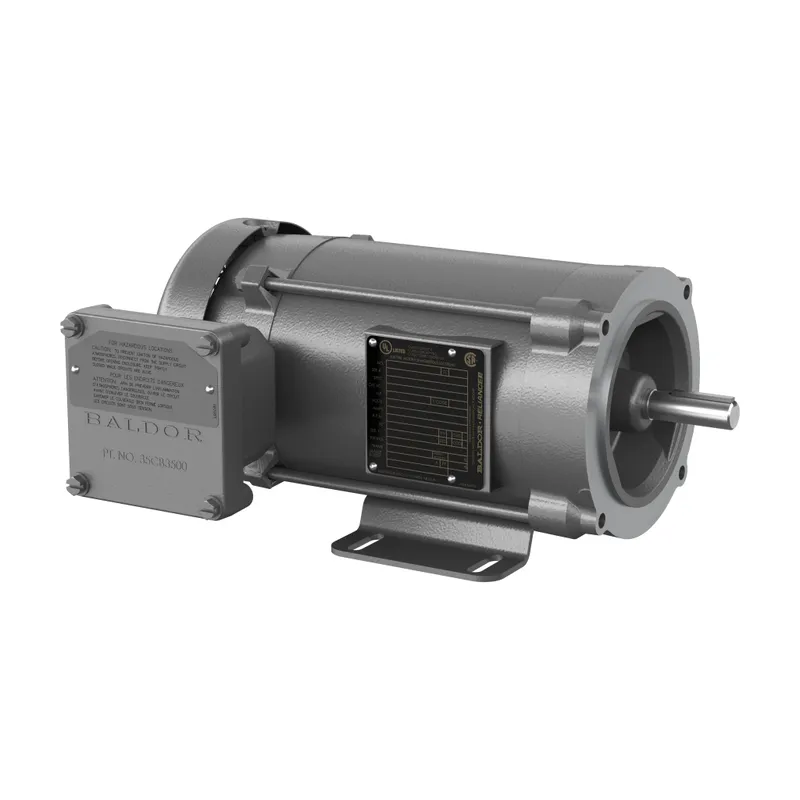

ABB CXL050542A-50

.5HP,1425RPM,1PH,50HZ,56C,3428L,XPF

MPN: CXL050542A-50
Category: XP general purpose

Price and lead time confirmed within 1 business day

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

Have spare ABB parts? We buy surplus →

What is the ABB CXL050542A-50?

Explosion Proof General Purpos 0.5 Hp 110 V (CXL050542A-50)

Specifications

Ordering

Catalog Number	CXL050542A-50
Brand / Label	Baldor-Reliance
Country or Territory of Origin	United States
Customs Tariff Number	85015100
Minimum Order Quantity	1 piece
Order Multiple	1 piece

Electrical

Ambient Temperature	40 °C
Duty Time	60 Min
Efficiency Level	Not Regulated / Exempt
Insulation Class	B
Number of Phases	1-phase
Number of Poles	4P
Number of Speeds	Single Speed
Power Factor	76 %
Rated Efficiency	62 %
Service Factor	1.00
Temperature Class	T3C
Type of Duty	Continuous
Starting of Motor	Direct On Line
Synchronous Speed (vsyn)	1500 r/min
Output Power	0.5 Hp

Mechanical

Drive End Flange Type	C-Face
Enclosure Type	TEFC
Explosion Proof Group Class	Class I, Group D, Class II, Group F & G G
Frame Material	Steel
Motor Frame Size	56C
Motor Base Type	Foot Mounted
Mounting Position	F1
Brake Present	No

Dimensions

Product Net Height	13.123 in
Product Net Weight	43 lb
Product Net Width	13.75 in
Dimension Diagram	34LY5328

Certificates and Declarations

Certification Agency	CSA, UL
ETIM 7	EC001851 - Electric motor
