Home / ABB / White Washdown / ABB CWDM3561TP
ABB

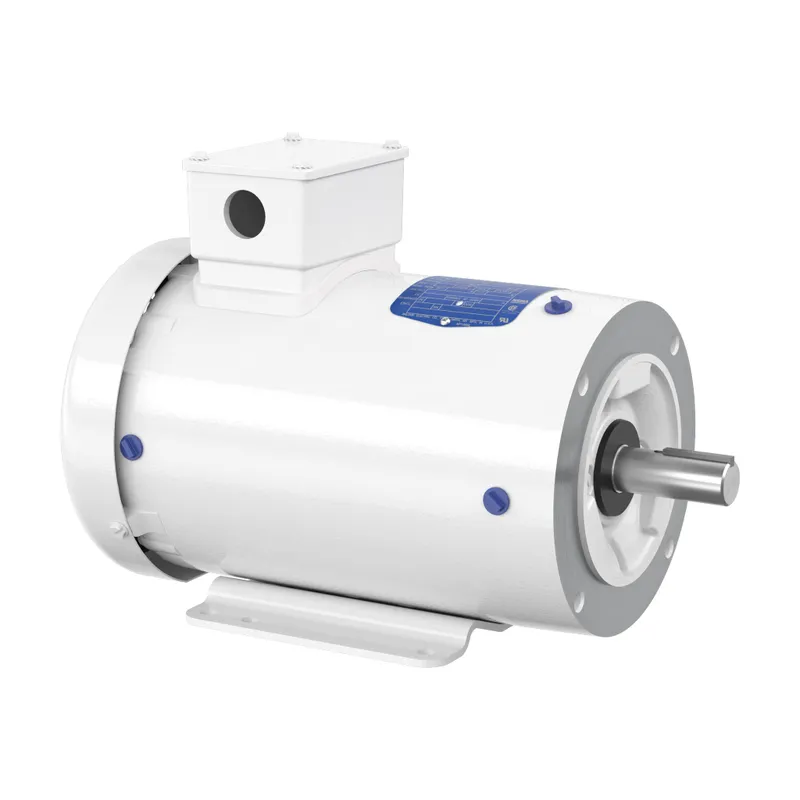

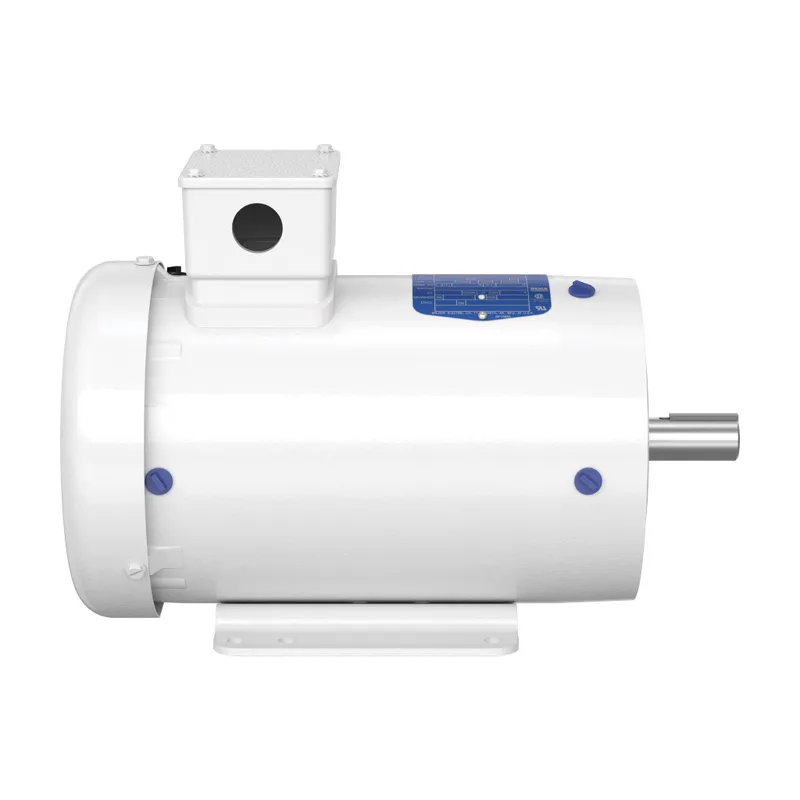

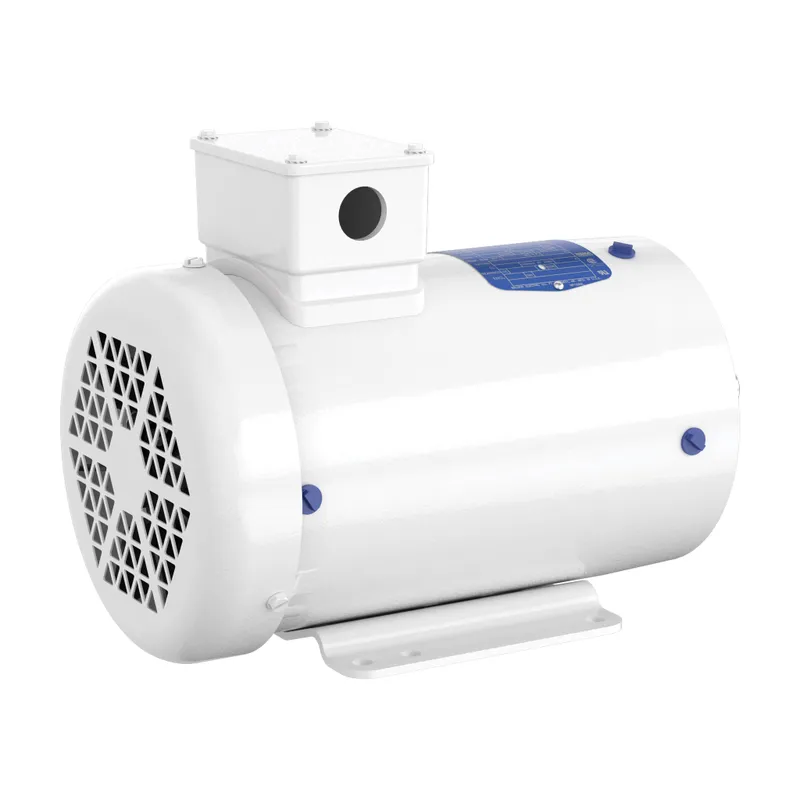

ABB CWDM3561TP

3HP,1645RPM,3PH,60HZ,143TC,3540M,TE

MPN
CWDM3561TP
Price and lead time confirmed within 1 business day
Request a Quote

A real person replies, typically within 1 business day — see our privacy policy.

What happens next
  1. We check stock, condition and lead time
  2. You get a written quote by email
  3. Approve it and we ship — in-stock parts within 1 business day
  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • Ships via
  • 100% positive eBay feedback

Have spare ABB parts? We buy surplus →

What is the ABB CWDM3561TP?

Washdown Motor 3 Hp 230 V (CWDM3561TP)

Specifications

Ordering

Catalog NumberCWDM3561TP
Brand / LabelBaldor-Reliance
Country or Territory of OriginUnited States
Customs Tariff Number85015220
Minimum Order Quantity1 piece
Order Multiple1 piece

Electrical

Ambient Temperature40 °C
Duty Time60 Min
Efficiency LevelNot Regulated / Exempt
Insulation ClassH
NEMA Design CodeD
Number of Phases3-phase
Number of Poles4P
Number of SpeedsSingle Speed
Power Factor80 %
Rated Efficiency81.50 %
Service Factor1.00
Type of DutyContinuous
Starting of MotorDirect On Line
Synchronous Speed (vsyn)1800 r/min
Output Power3 Hp

Mechanical

Drive End Flange TypeC-Face
Enclosure TypeTEFC
Frame MaterialSteel
Motor Frame Size143TC
Motor Base TypeFoot Mounted
Mounting PositionF3
Brake PresentNo

Dimensions

Product Net Height15.125 in
Product Net Weight59 lb
Product Net Width16.125 in
Dimension Diagram35LYE2678

Certificates and Declarations

Certification AgencyCURUS, UR
ETIM 7EC001851 - Electric motor

CWDM3561TP: frequently asked questions

When can CWDM3561TP be shipped?

CWDM3561TP is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up CWDM3561TP in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for CWDM3561TP and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for CWDM3561TP, subject to availability and destination.
