Home / ABB / White Washdown / ABB CEWDM3545T

ABB

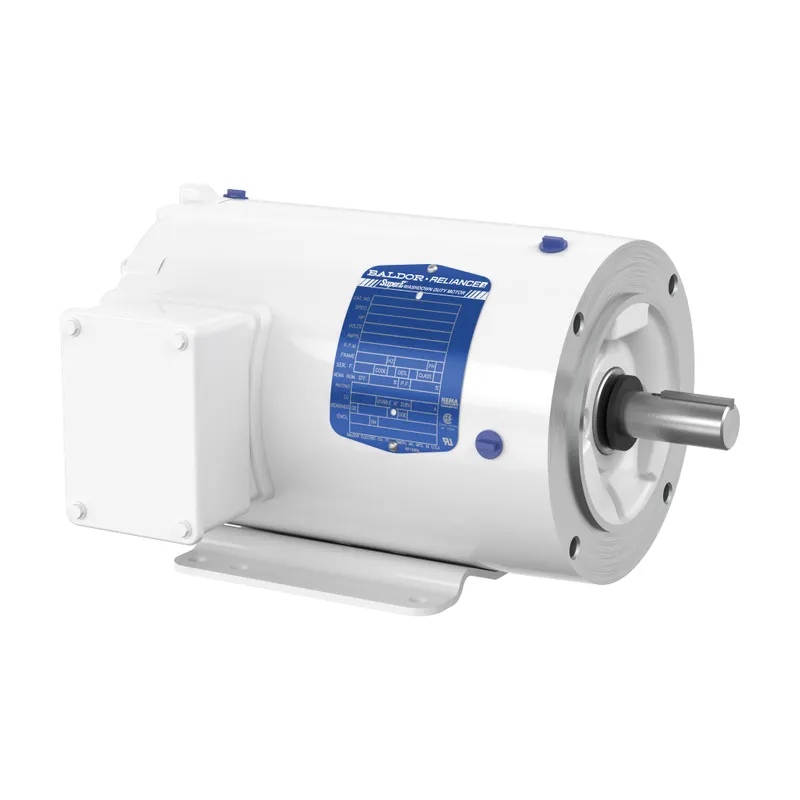

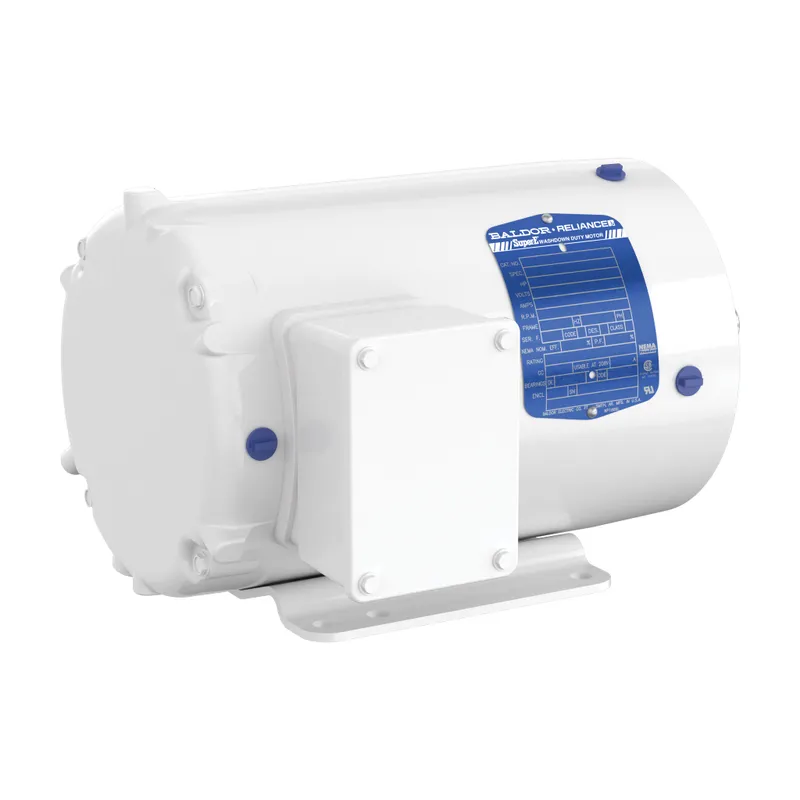

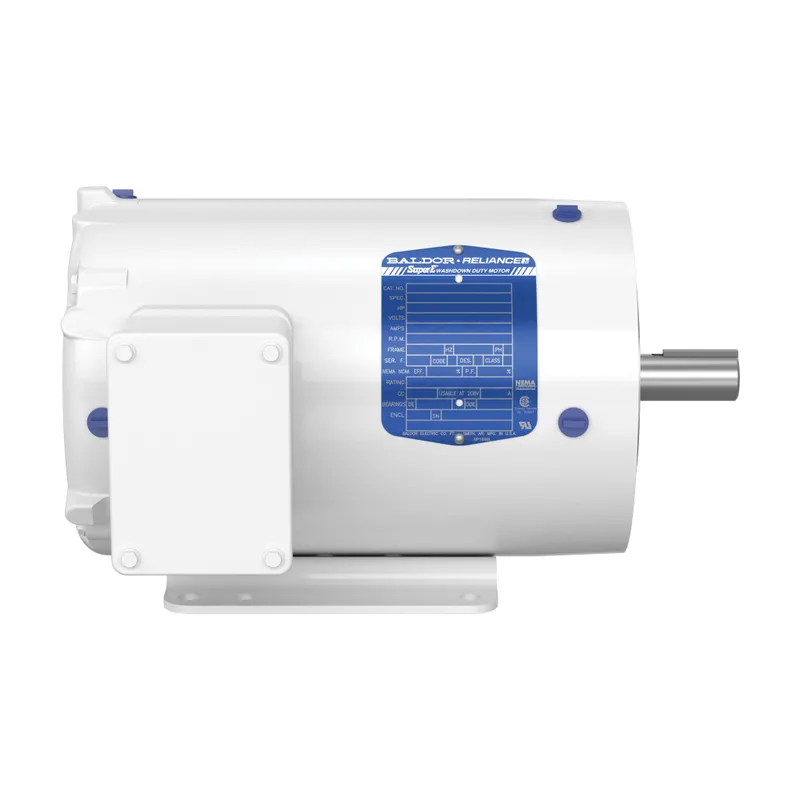

ABB CEWDM3545T

1HP,3450RPM,3PH,60HZ,143TC,TENV,F1

MPN: CEWDM3545T
Category: White Washdown

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare ABB parts? We buy surplus →

What is the ABB CEWDM3545T?

Washdown Motor 1 Hp 230 V (CEWDM3545T)

Specifications

Ordering

Catalog Number	CEWDM3545T
Brand / Label	Baldor-Reliance
Country or Territory of Origin	United States
Customs Tariff Number	85015100
Minimum Order Quantity	1 piece
Order Multiple	1 piece

Electrical

Ambient Temperature	40 °C
Duty Time	60 Min
Efficiency Level	Premium Efficiency (NEMA 12-12)
Insulation Class	F
NEMA Design Code	B
Number of Phases	3-phase
Number of Poles	2P
Number of Speeds	Single Speed
Power Factor	88 %
Rated Efficiency	82.50 %
Service Factor	1.15
Type of Duty	Continuous
Starting of Motor	Direct On Line
Synchronous Speed (vsyn)	3600 r/min
Output Power	1 Hp

Mechanical

Drive End Flange Type	C-Face
Enclosure Type	TENV
Frame Material	Steel
Motor Frame Size	143TC
Motor Base Type	Foot Mounted
Mounting Position	F1
Brake Present	No

Dimensions

Product Net Height	11.125 in
Product Net Weight	35 lb
Product Net Width	11.5 in
Dimension Diagram	35LYSS592

Certificates and Declarations

Certification Agency	CSA, CSA EEV, UR
IDEA Granular Category Code (IGCC)	1325 >> General purpose motor AC
ETIM 7	EC001851 - Electric motor

CEWDM3545T: frequently asked questions

When can CEWDM3545T be shipped?

CEWDM3545T is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up CEWDM3545T in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for CEWDM3545T and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for CEWDM3545T, subject to availability and destination.
