Home / ABB / White Washdown / ABB CEWDM23994T

ABB

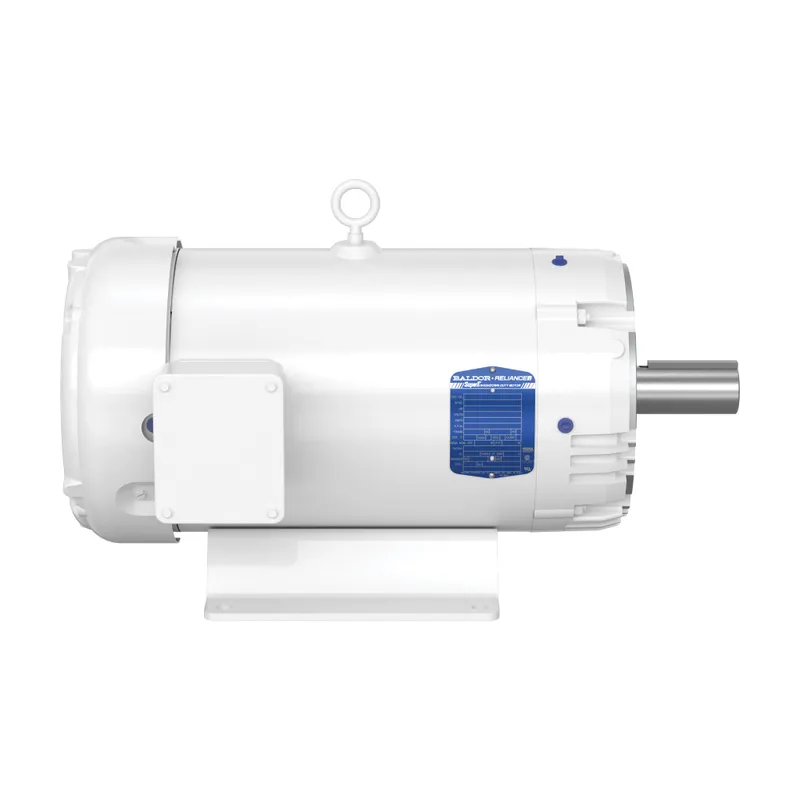

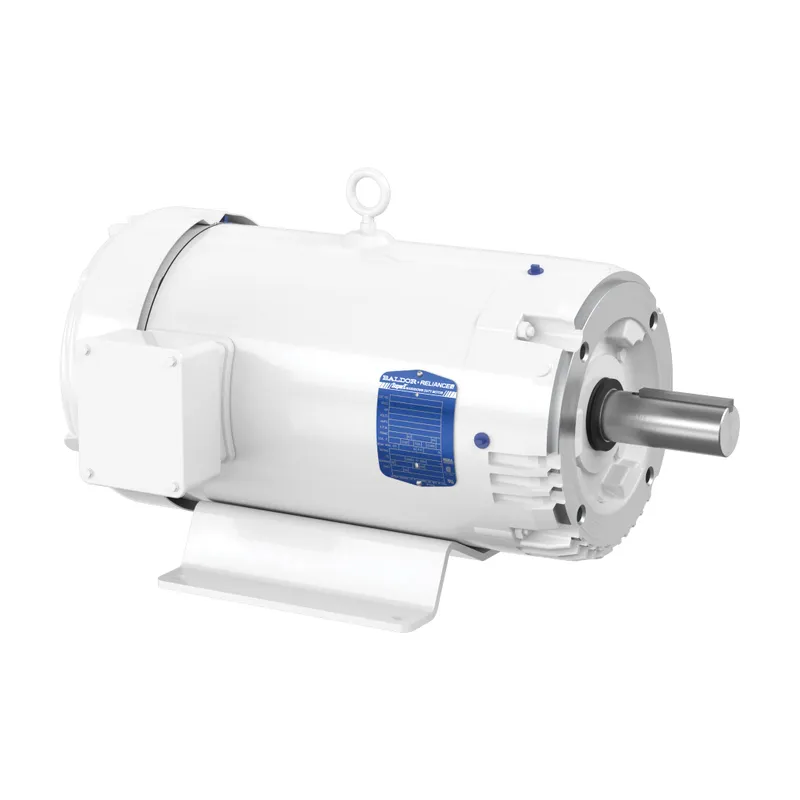

ABB CEWDM23994T

15HP,3500RPM,3PH,60HZ,254TC,3752M,T

MPN: CEWDM23994T
Category: White Washdown

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare ABB parts? We buy surplus →

What is the ABB CEWDM23994T?

Washdown Motor 15 Hp 230 V (CEWDM23994T)

Specifications

Ordering

Catalog Number	CEWDM23994T
Brand / Label	Baldor-Reliance
Country or Territory of Origin	United States
Customs Tariff Number	85015220
Minimum Order Quantity	1 piece
Order Multiple	1 piece

Electrical

Ambient Temperature	40 °C
Duty Time	60 Min
Efficiency Level	IE3, Not Regulated / Exempt, Premium Efficiency (NEMA 12-12)
Insulation Class	F
NEMA Design Code	A A
Number of Phases	3-phase
Number of Poles	2P
Number of Speeds	Single Speed
Power Factor	90 %
Rated Efficiency	91 %
Service Factor	1.15
Type of Duty	Continuous
Starting of Motor	Direct On Line
Synchronous Speed (vsyn)	3600 r/min
Output Power	15 Hp

Mechanical

Drive End Flange Type	C-Face
Enclosure Type	TEFC
Frame Material	Steel
Motor Frame Size	254TC
Motor Base Type	Foot Mounted
Mounting Position	F1
Brake Present	No

Dimensions

Product Net Height	17.375 in
Product Net Weight	188 lb
Product Net Width	16.5 in
Dimension Diagram	37LYH882

Certificates and Declarations

Certification Agency	CURUSEEV, NEMA PREMIUM, NEMA_PREMIUM
IDEA Granular Category Code (IGCC)	1328 >> Multi phase motor AC
ETIM 7	EC001851 - Electric motor
