Home / ABB / XP Drill Rig Duty / ABB CDRX32364T
ABB

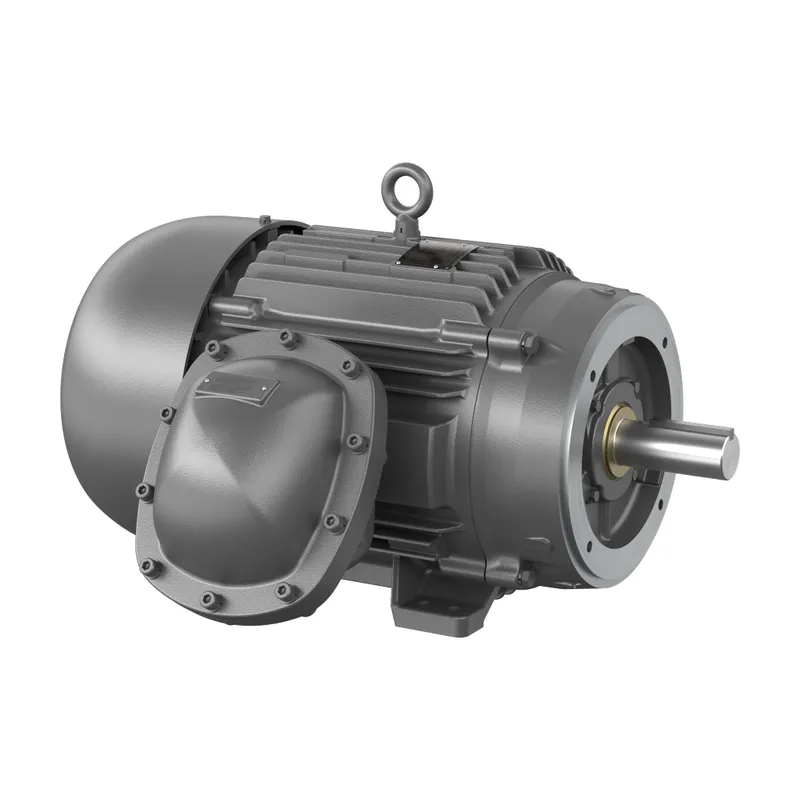

ABB CDRX32364T

30HP,1180//980RPM,3PH,60/50HZ,326TC

MPN
CDRX32364T
Price and lead time confirmed within 1 business day
Request a Quote

A real person replies, typically within 1 business day — see our privacy policy.

What happens next
  1. We check stock, condition and lead time
  2. You get a written quote by email
  3. Approve it and we ship — in-stock parts within 1 business day
  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • Ships via
  • 100% positive eBay feedback

Have spare ABB parts? We buy surplus →

What is the ABB CDRX32364T?

Explosion Proof Drill Rig Duty 25 Hp 190 V (CDRX32364T)

Specifications

Ordering

Catalog NumberCDRX32364T
Brand / LabelBaldor-Reliance
Country or Territory of OriginUnited States
Customs Tariff Number85015230
Minimum Order Quantity1 piece
Order Multiple1 piece

Electrical

Ambient Temperature40 °C
Efficiency LevelNot Regulated / Exempt
Insulation ClassF
NEMA Design CodeA A
Number of Phases3-phase
Number of Poles6P
Number of SpeedsSingle Speed
Power Factor78 %
Rated Efficiency93 %
Service Factor1.00
Temperature ClassT3C
Type of DutyContinuous
Starting of MotorDirect On Line
Synchronous Speed (vsyn)1200 r/min
Output Power25 Hp, 30 Hp

Mechanical

Drive End Flange TypeC-Face
Enclosure TypeXPFC
Explosion Proof Group ClassClass I, Group C & D
Frame MaterialIron
Motor Frame Size326TC
Motor Base TypeFoot Mounted
Mounting PositionF1
Brake PresentNo

Dimensions

Product Net Height25.625 in
Product Net Weight766 lb
Product Net Width32.5 in
Dimension Diagram12LYT021

Certificates and Declarations

Certification AgencyCSA, CSA EEV, UR
ETIM 7EC001851 - Electric motor

CDRX32364T: frequently asked questions

When can CDRX32364T be shipped?

CDRX32364T is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up CDRX32364T in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for CDRX32364T and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for CDRX32364T, subject to availability and destination.
