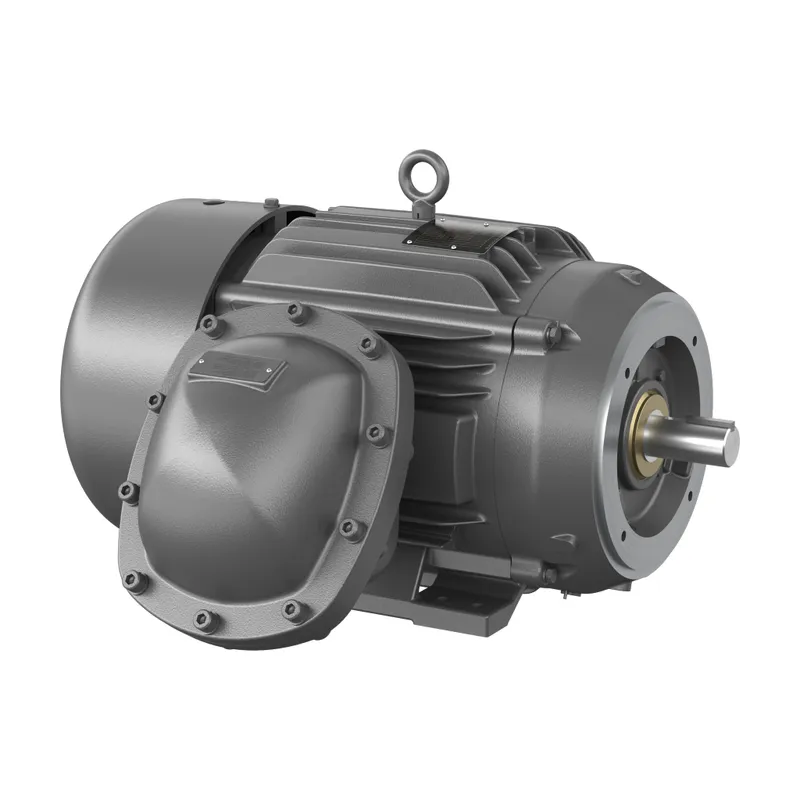

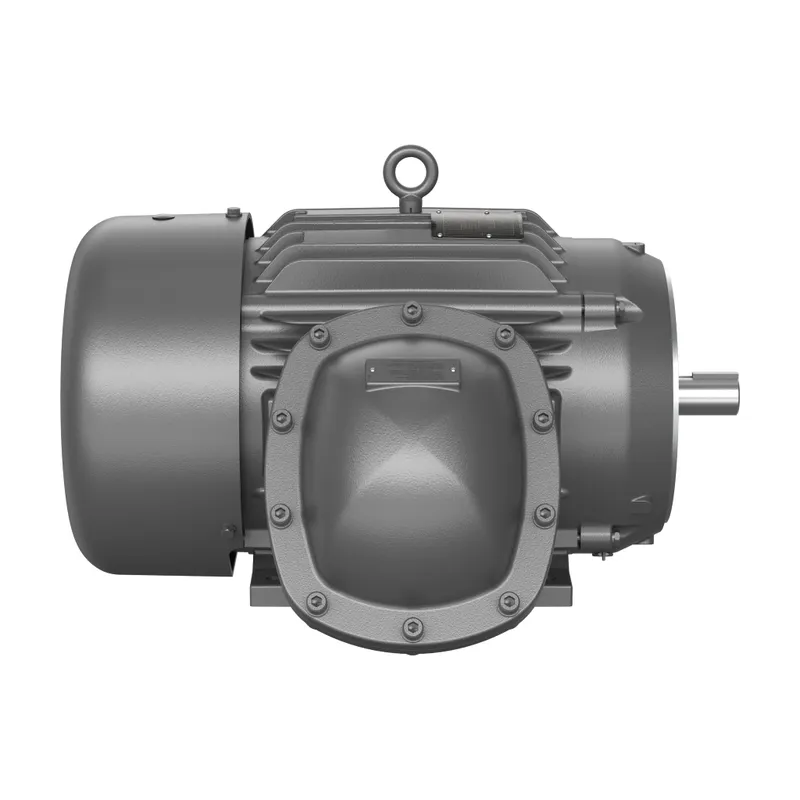

ABB CDRX28324T

30HP,3520//2920RPM,3PH,60/50HZ,286T

MPN: CDRX28324T
Category: XP Drill Rig Duty

Price and lead time confirmed within 1 business day

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

Have spare ABB parts? We buy surplus →

What is the ABB CDRX28324T?

Explosion Proof Drill Rig Duty 25 Hp 190 V (CDRX28324T)

Specifications

Ordering

Catalog Number	CDRX28324T
Brand / Label	Baldor-Reliance
Country or Territory of Origin	United States
Customs Tariff Number	85015230
Minimum Order Quantity	1 piece
Order Multiple	1 piece

Electrical

Ambient Temperature	40 °C
Efficiency Level	Not Regulated / Exempt
Insulation Class	F
NEMA Design Code	B
Number of Phases	3-phase
Number of Poles	2P
Number of Speeds	Single Speed
Power Factor	90 %
Rated Efficiency	91.70 %
Service Factor	1.00
Temperature Class	T3C
Type of Duty	Continuous
Starting of Motor	Direct On Line
Synchronous Speed (vsyn)	3600 r/min
Output Power	25 Hp, 30 Hp

Mechanical

Drive End Flange Type	C-Face
Enclosure Type	XPFC
Explosion Proof Group Class	Class I, Group C & D
Frame Material	Iron
Motor Frame Size	286TSC
Motor Base Type	Foot Mounted
Mounting Position	F1
Brake Present	No

Dimensions

Product Net Height	25.625 in
Product Net Weight	438 lb
Product Net Width	32.5 in
Dimension Diagram	10LYG898

Certificates and Declarations

Certification Agency	CSA, CSA EEV, UR
ETIM 7	EC001851 - Electric motor
