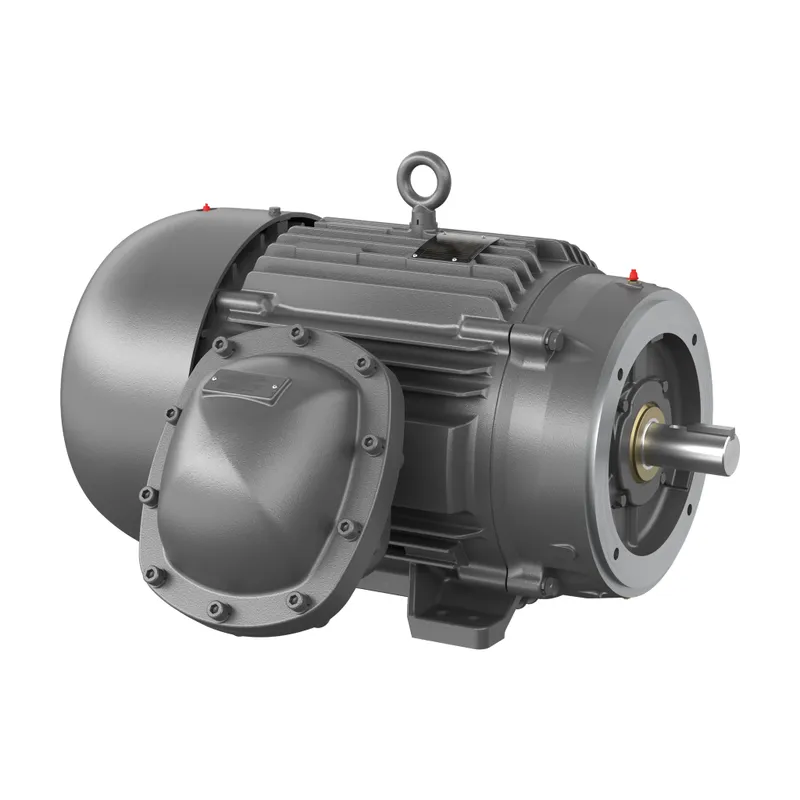

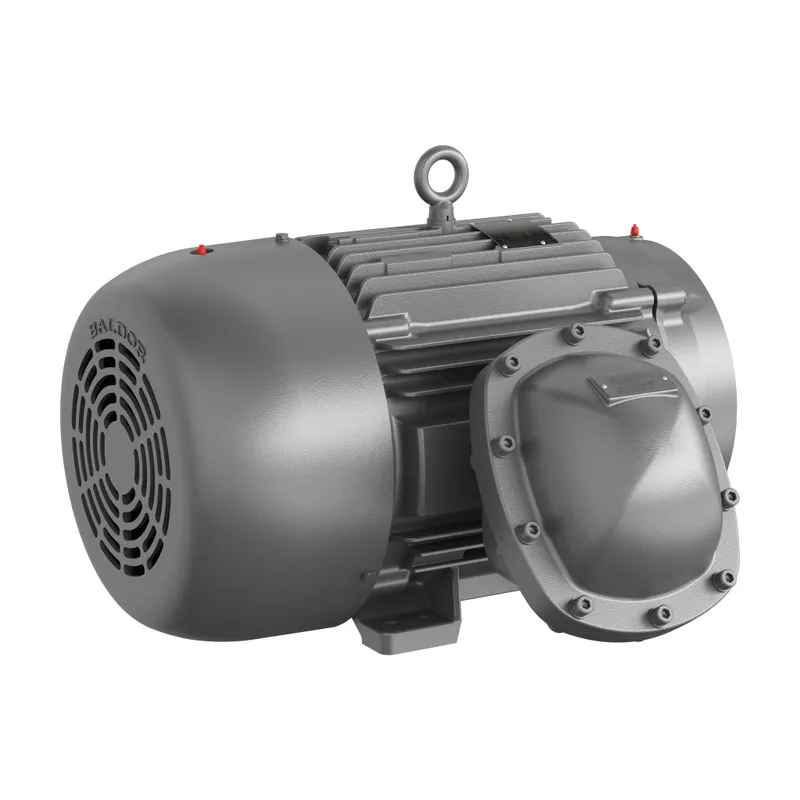

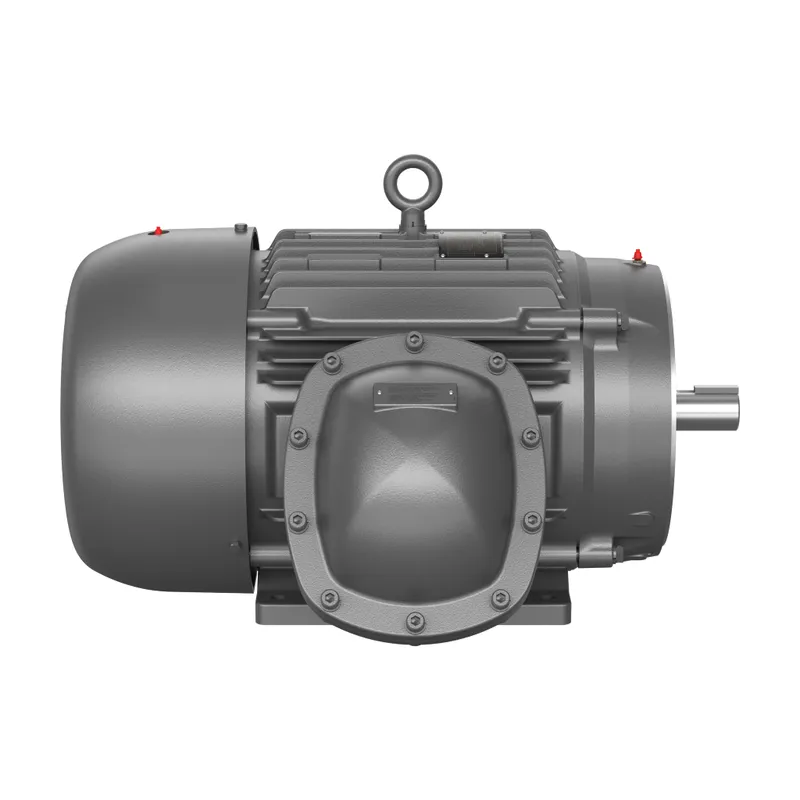

ABB CDRX32524T

50HP,3560//2960RPM,3PH,60/50HZ,326T

MPN: CDRX32524T
Category: XP Drill Rig Duty

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare ABB parts? We buy surplus →

What is the ABB CDRX32524T?

Explosion Proof Drill Rig Duty 40 Hp 190 V (CDRX32524T)

Specifications

Ordering

Catalog Number	CDRX32524T
Brand / Label	Baldor-Reliance
Country or Territory of Origin	United States
Customs Tariff Number	85015230
Minimum Order Quantity	1 piece
Order Multiple	1 piece

Electrical

Ambient Temperature	40 °C
Efficiency Level	Not Regulated / Exempt
Insulation Class	F
NEMA Design Code	A A
Number of Phases	3-phase
Number of Poles	2P
Number of Speeds	Single Speed
Power Factor	89 %
Rated Efficiency	93 %
Service Factor	1.00
Temperature Class	T3C
Type of Duty	Continuous
Starting of Motor	Direct On Line
Synchronous Speed (vsyn)	3600 r/min
Output Power	40 Hp, 50 Hp

Mechanical

Drive End Flange Type	C-Face
Enclosure Type	XPFC
Explosion Proof Group Class	Class I, Group C & D
Frame Material	Iron
Motor Frame Size	326TSC
Motor Base Type	Foot Mounted
Mounting Position	F1
Brake Present	No

Dimensions

Product Net Height	29.5 in
Product Net Weight	790.001 lb
Product Net Width	34.5 in
Dimension Diagram	12LYH659

Certificates and Declarations

Certification Agency	CSA, CSA EEV, UR
ETIM 7	EC001851 - Electric motor
