What is the ABB 3GLP504530-RUK?

No Description Available

Specifications

Ordering

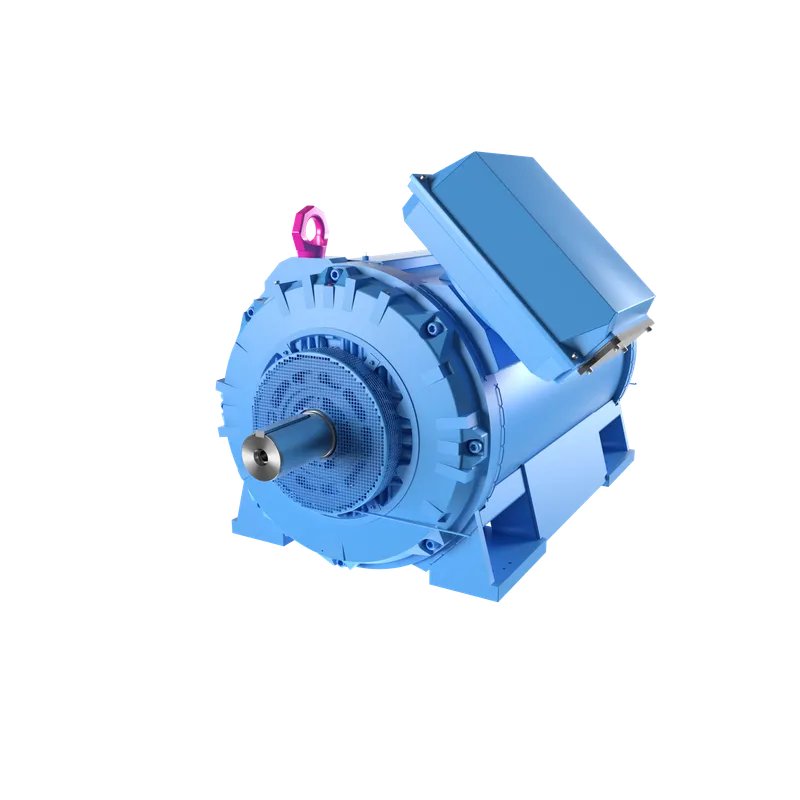

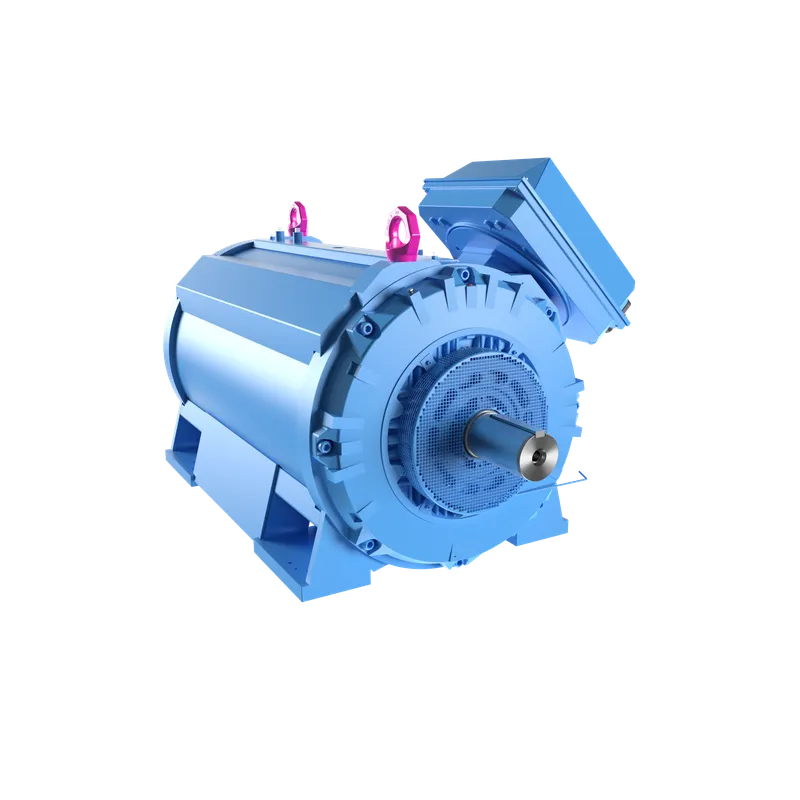

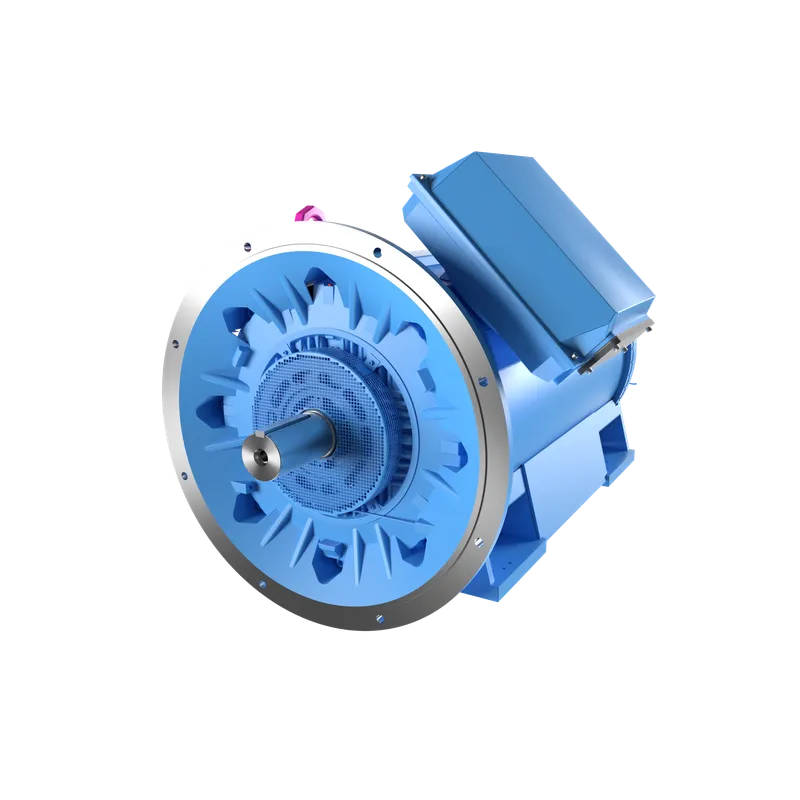

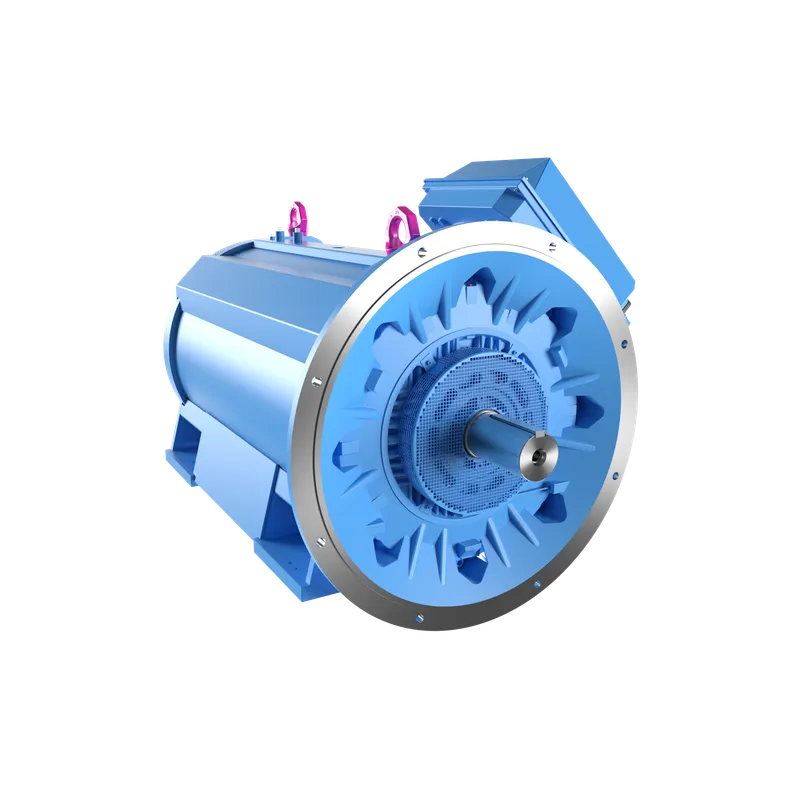

ABB Type Designation	M3LP 500LC 8
Product Name	3-Phase squirrel cage motor
Product Type	3LP3__water_cooled_motor_IE3
Country or Territory of Origin	Finland
Customs Tariff Number	85015399

Electrical

Temperature Class Default	--
Altitude	1000 m m
Ambient Temperature	40 °C
IC Class	IC71W
IE Class Data (50 Hz)	IE Class IE4, Full Load (100%) 96.8 %, Partial Load (75%) 97.1 %, Partial Load (50%) 97.0 %
IP Class	IP55
Insulation Class	ICLF
Direction of Rotation	Both sides
Number of Poles (High)	8
Two Speed Motor	No
Voltage Code	U

Mechanical

Frame Material	Welded Steel
Frame Size	500
Bearing	6330M/C3
Bearing NDE	6326M/C3
IM Class	IMB3 IM1001
Terminator Box Location	D-End right side

Dimensions

Product Net Weight	6000 kg kg
Gross Weight	0 kg kg

Environmental

WEEE Category

4. Large Equipment (Any External Dimension More Than 50 cm) cm

External Classifications and Standards

UNSPSC

26101100
