What is the ABB 3GLP504530-BUK?

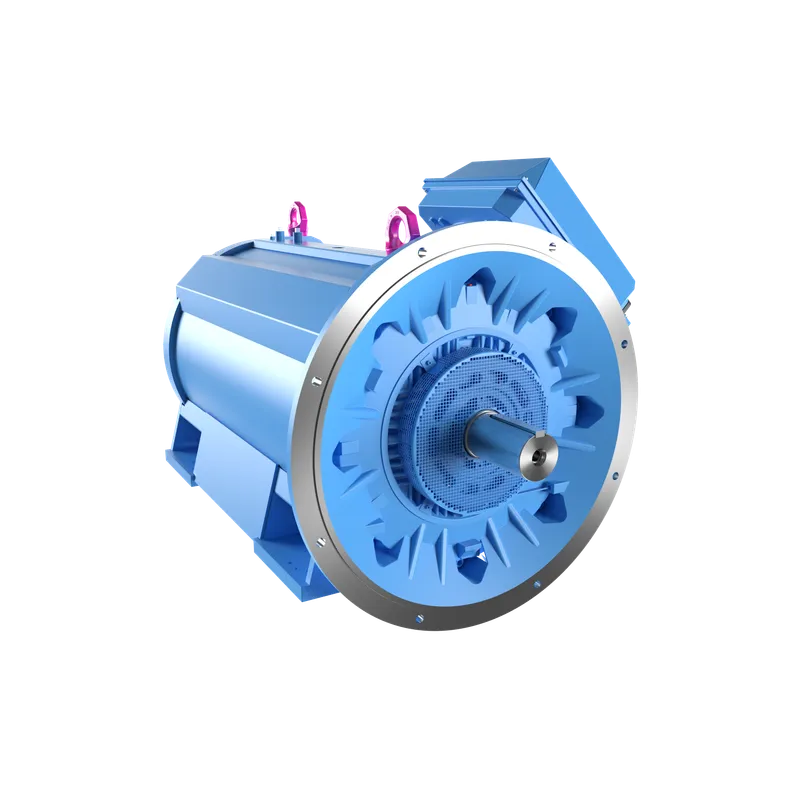

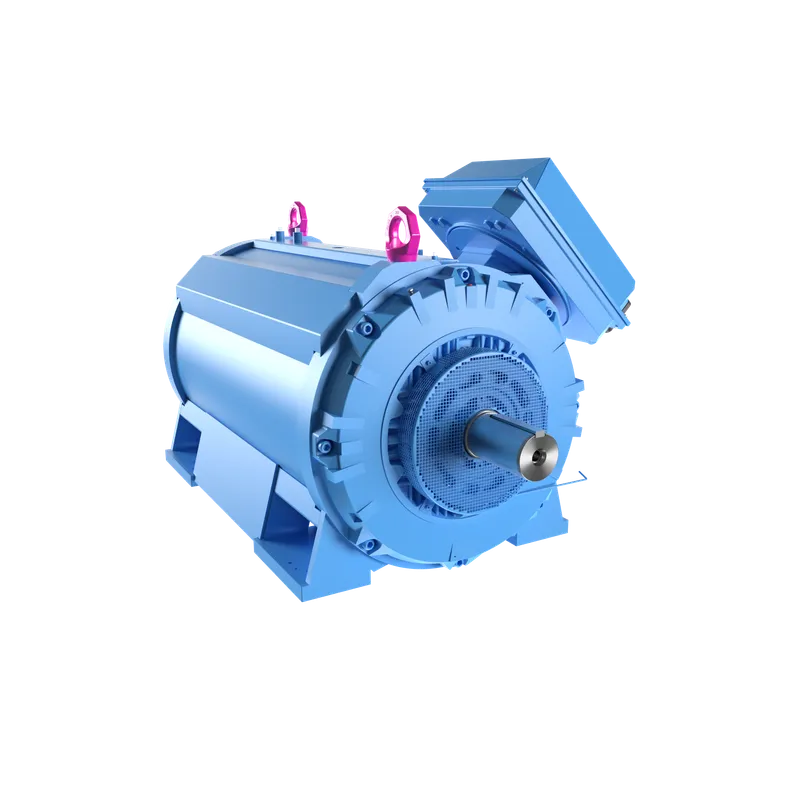

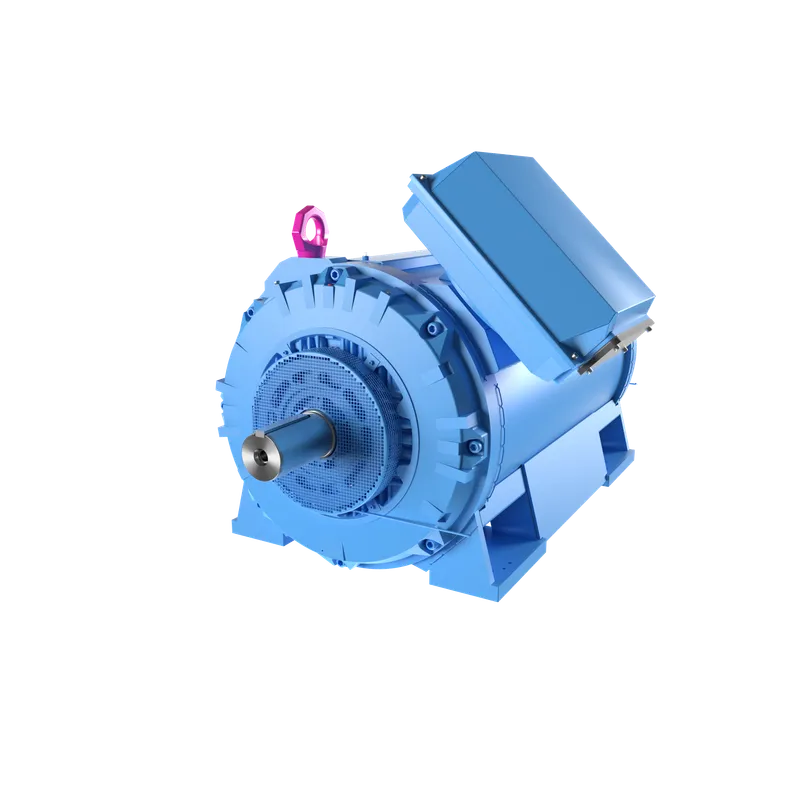

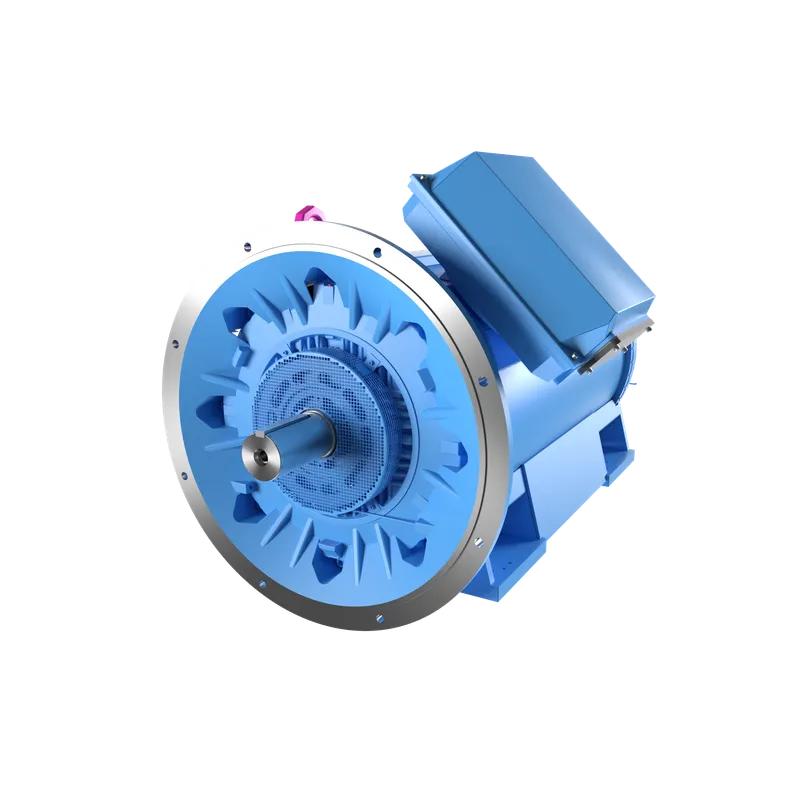

M3LP 500LC 8

Specifications

Ordering

ABB Type Designation	M3LP 500LC 8
Invoice Description	M3LP 500LC 8
Product Name	3-Phase squirrel cage motor
Product Type	3LP3__water_cooled_motor_IE3
Country or Territory of Origin	Finland
Customs Tariff Number	85015399
Medium Description	1000kW, 8P, Frame Size 500, 3 Phases, 690V, 50Hz, IP55 Enclosure, IMB5/IM3001 Mounting (3GLP504530-BUK)
Short Description	1000kW, 8P, Frame Size 500, 3PH, 690V, 50Hz, IP55, IMB5/IM3001

Electrical

Temperature Class Default	--
Altitude	1000 m m
Ambient Temperature	40 °C
IC Class	IC71W
IE Class Data (50 Hz)	IE Class IE4, Full Load (100%) 96.8 %, Partial Load (75%) 97.1 %, Partial Load (50%) 97.0 %
IP Class	IP55
Insulation Class	ICLF
Direction of Rotation	Both sides
Number of Poles (High)	8
Two Speed Motor	No
Type of Duty	S1
Voltage Code	U

Mechanical

Frame Material	Welded Steel
Frame Size	500
Bearing	6330M/C3
Bearing NDE	6326M/C3
IM Class	IMB5 IM3001
Terminator Box Location	D-End right side

Dimensions

Product Net Weight	6000 kg kg
Gross Weight	6040 kg kg

Environmental

WEEE Category

4. Large Equipment (Any External Dimension More Than 50 cm) cm

External Classifications and Standards

UNSPSC

26101100
