What is the ABB 1SBP260191R1001?

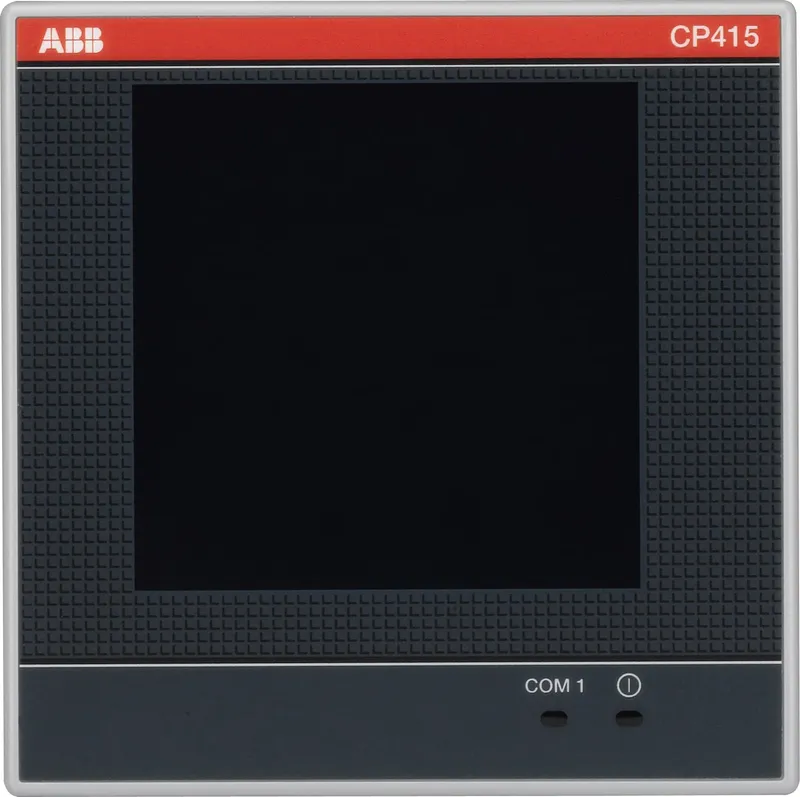

CP415 M Control Panel 3.5” STN Touch screen 16 grey levels

Specifications

Additional Information

ABB Type DesignationCP415M
Ambient Air TemperatureOperation 0 ... +50 °C, Storage -10 ... +60 °C
Battery TypePortable
CN885371091
CommunicationDepend on Driver
Communication Interfaceno
Communication Speed4.8 ... 187.5 kBd
Country or Territory of OriginTaiwan (Chinese Taipei), Germany
cUL Certificate1SAA960000-1709
Customs Tariff Number85371091
Data Sheet, Technical Information1SBC159107L0202
Declaration of Conformity - CE1SBD240514C1000
Display TypeSTN Touch
EAN3471522601919
eClass27-33-02-01
Environmental Information1SBD240191E1000
Fieldbus Interface TypeModbus RTUAC500_ModbusASCIIothers (contact us)
Frame SizeUndefined
Fuse Size5 x 20_MMTx
Fuse TypeBEL.5TT 1-R
Gross Weight2 kg kg
Instructions and Manuals1SBC159107M0201
Instructions and Manuals (Part 2)1SBC159106M0202
Invoice DescriptionCP415M Control Panel
Made To OrderNo
Memory Size User Program4000 kB
Memory Type User Program4 MB ROM
Minimum Order Quantity1 piece
Mounting on DIN RailNo
Mounting Position0 to 135 °
Mounting TypeFront face
Number of Characters Per Line40
Number of Display Lines30
Number of Function Keys5
Order Multiple1 piece
Power Consumption (@Pcons)20 V·A V
Power Supply24 V DC V
Product Main TypeCP415
Product NameControl Panel
Product Net Depth / Length41 mm mm
Product Net Height96 mm mm
Product Net Weight0.21 kg kg
Product Net Width96 mm mm
Product TypePLC-CP400
ProfibusNo
Programming SoftwareCP400 Soft
Quote OnlyNo
Real-time ClockYes
Release TypeV11.12.10
RoHS Declaration1SBD340002R0202
Screen Color16 grey levels
Screen Resolution240 x 240 pixel
Screen Size1:1 screen 3.5 in
Screen TypeFSTN grey, LED backlight, touch screen
Securitypassword protection with 9 user levels
Selling Unit of Measurepiece
Serial Port 1 TypeRS232/RS422/RS485
Service Life30000 hour
Short DescriptionCP415 M Control Panel 3.5” STN Touch screen 16 M
Short-Circuit Protective DevicesgG Type Fuses Integrated
Software Functionalarm managementtrendsmacro & laddersub-screen
Stocked At (Warehouses)Menden, Germany, Bairro Santo Antonio, Brazil
Supply Voltage20.4 ... 27.6 V DC V
UL CertificateNRAQ.E240320
UNSPSC32151703
Viewing Area Height58.5 mm mm
Viewing Area Length58.5 mm mm
WEEE B2C / B2BBusiness To Business
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm) cm
