What is the ABB 1SBP260183R1001?

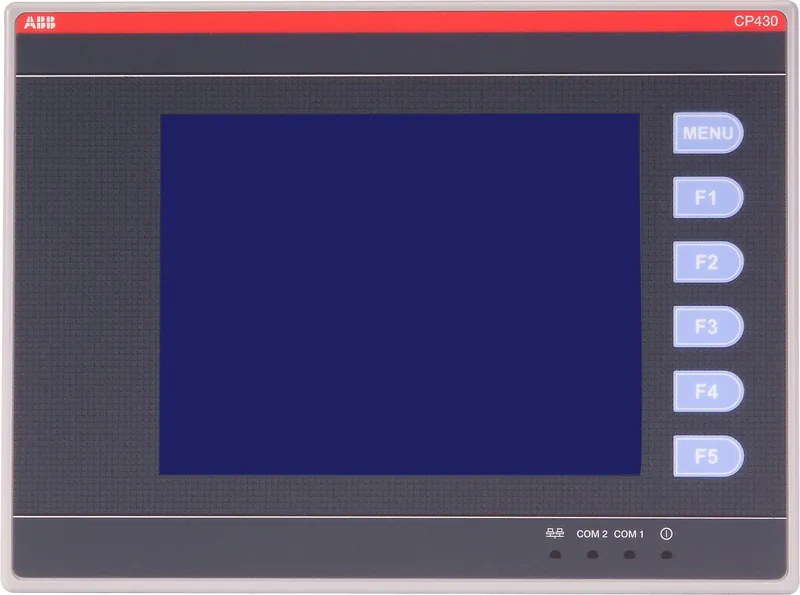

CP430 B Control Panel 1 menu 5 defined keys 5.7” STN Touch screen 16 Blue levels

Specifications

Additional Information

ABB Type DesignationCP430B
Ambient Air TemperatureOperation 0 ... +50 °C, Storage -10 ... +60 °C
Battery TypePortable
CN885381000
CommunicationDepend on Driver
Communication Interfaceno
Communication Speed4.8 ... 187.5 kBd
Country or Territory of OriginTaiwan (Chinese Taipei)
cUL Certificate1SAA960000-1709
Customs Tariff Number85381000
Data Sheet, Technical Information1SBC159107L0202
Declaration of Conformity - CE1SBD240576C1000
Display TypeSTN Touch and Keys
EAN3471522601834
Environmental Information1SBD240183E1000
Fieldbus Interface TypeModbus RTUAC500_ModbusASCIIothers (contact us)
Frame SizeUndefined
Fuse Size5 x 20_MMTx
Fuse TypeBEL.5TT 1.6-R
Gross Weight1.25 kg kg
GSD-file for PROFIBUS CommunicationNo
Instructions and Manuals1SBC159103M0202
Instructions and Manuals (Part 2)1SBC159106M0202
Invoice DescriptionCP430 B Control Panel 5.7” STN Touch scr
Made To OrderNo
Memory Size User Program4000 kB
Memory Type User Program4 MB ROM
Minimum Order Quantity1 piece
Mounting on DIN RailNo
Mounting Position0 to 135 °
Mounting TypeFront face
Number of Characters Per Line40
Number of Display Lines30
Number of Function Keys5
Order Multiple1 piece
Power Consumption (@Pcons)20 V·A V
Power Supply24 V DC V
Product Main TypeCP430
Product NameControl Panel
Product Net Depth / Length60 mm mm
Product Net Height145 mm mm
Product Net Weight0.81 kg kg
Product Net Width195 mm mm
Product TypePLC-CP400
ProfibusNo
Programming SoftwareCP400 Soft
Quote OnlyNo
Real-time ClockYes
Release TypeV10.10.10
RoHS Declaration1SBD340002R0202
Screen Color16 blue levels
Screen Resolution320 x 240 pixel
Screen Size4:3 screen 5.7 in
Screen TypeSTN blue, CCFL backlight, touch screen
Securitypassword protection with 9 user levels
Selling Unit of Measurepiece
Serial Port 1 TypeRS232/RS485
Serial Port 2 TypeRS232/RS422/RS485
Service Life50000 hour
Short DescriptionCP430 B Control Panel 5.7” STN Touch screen 16 B
Short-Circuit Protective DevicesgG Type Fuses Integrated
Software Functionalarm managementtrendsmacro & laddersub-screen
Stocked At (Warehouses)Menden, Germany
Supply Voltage20.4 ... 27.6 V DC V
UL CertificateNRAQ.E240320
USB Port 1 Typeno
USB Port 2 Typeno
Viewing Area Height88.4 mm mm
Viewing Area Length117.2 mm mm
WEEE B2C / B2BBusiness To Business
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm) cm
