Available on request
CK516
MPN: 1SBP260180R1001 · Brand: ABB
Price on request
Request a Quote
12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
Quick facts
| Availability | Confirmed on request |
| Category | Leaflets |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can 1SBP260180R1001 be shipped?
1SBP260180R1001 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 1SBP260180R1001 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 1SBP260180R1001 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 1SBP260180R1001, subject to availability and destination.

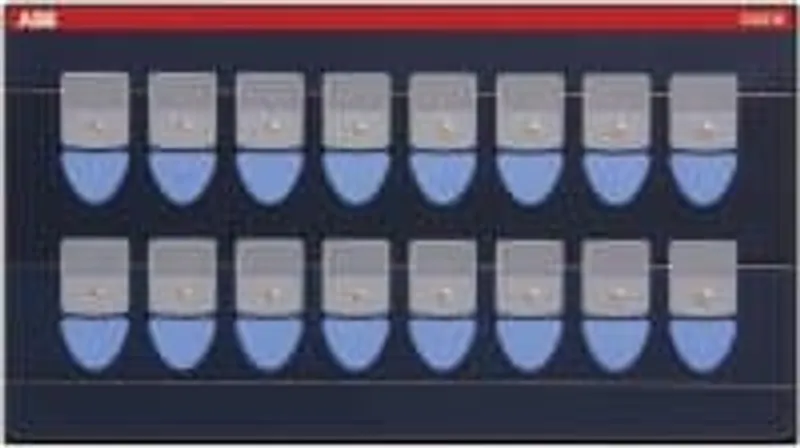

Control Panel keyboard 2x8 Key with 2x8 leds connectable on CP511 to CP555
Specifications
Additional Information
| ABB Type Designation | CK516 |
| Ambient Air Temperature | Operation 0 ... +50 °C, Storage -20 ... +70 °C |
| CN8 | 84716070 |
| Communication | Specific |
| Communication Interface | no |
| Communication Speed | 4.8 ... 187.5 kBd |
| Country or Territory of Origin | France |
| Customs Tariff Number | 84716070 |
| Data Sheet, Technical Information | 1SBC159001M6501 |
| Declaration of Conformity - CE | 1SBD240568C1000 |
| Degree of Protection | IP65 |
| Environmental Information | 1SBD240180E1000 |
| Fieldbus Interface Type | No |
| Frame Size | Undefined |
| Fuse Size | 5 x 20_MMTx |
| Fuse Type | 800 mAT |
| Gross Weight | 0.4 kg kg |
| GSD-file for PROFIBUS Communication | No |
| Instructions and Manuals | 1SBC159002M0202 |
| Invoice Description | CK516 Control Panel, CP500soft needed |
| LR Certificate | LRS_0620036 |
| Made To Order | No |
| Memory Type User Data | non-volatile RAM |
| Memory Type User Program | Flash EPROM |
| Minimum Order Quantity | 1 piece |
| Mounting on DIN Rail | No |
| Mounting Type | Front face |
| Number of LEDs | 16 |
| Order Multiple | 1 piece |
| Power Supply | 24 V DC V |
| Product Depth | 33.5 mm mm |
| Product Main Type | CK516 |
| Product Name | Control Panel |
| Product Net Depth / Length | 85 mm mm |
| Product Net Height | 93 mm mm |
| Product Net Weight | 0.4 kg kg |
| Product Net Width | 65 mm mm |
| Product Type | PLC-CP500 |
| Profibus | No |
| Programming Software | CP500 Soft |
| Quote Only | No |
| Real-time Clock | No |
| Release Type | V1.0 |
| Selling Unit of Measure | piece |
| Serial Port 1 Type | SPECIFIC |
| Serial Port 2 Type | SPECIFIC |
| Short Description | Control Panel keyboard 2x8 Key with 2x8 leds |
| Stocked At (Warehouses) | Menden, Germany |
| Supply Voltage | 20 ... 30 V DC V |
| UL Certificate | NRAG.E224886 |
| USB Port 1 Type | no |
| USB Port 2 Type | no |
| WEEE B2C / B2B | Business To Business |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) cm |
