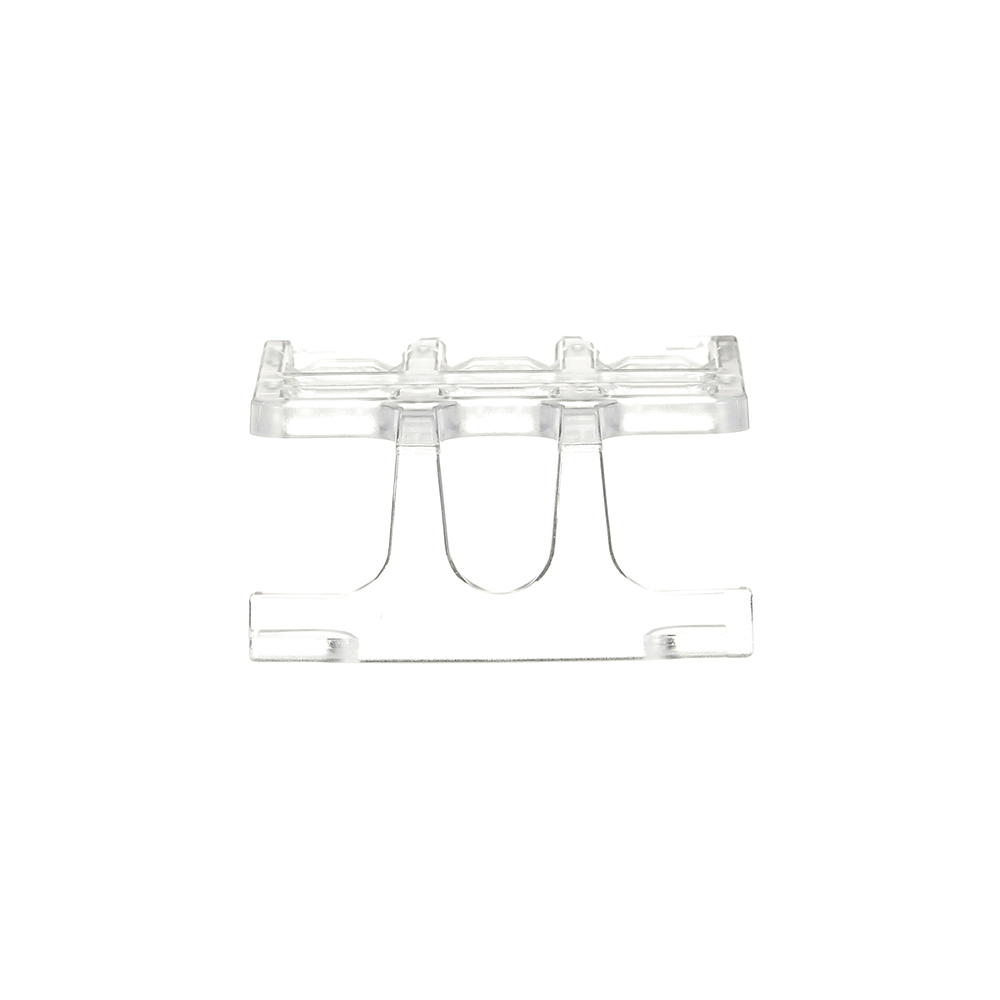

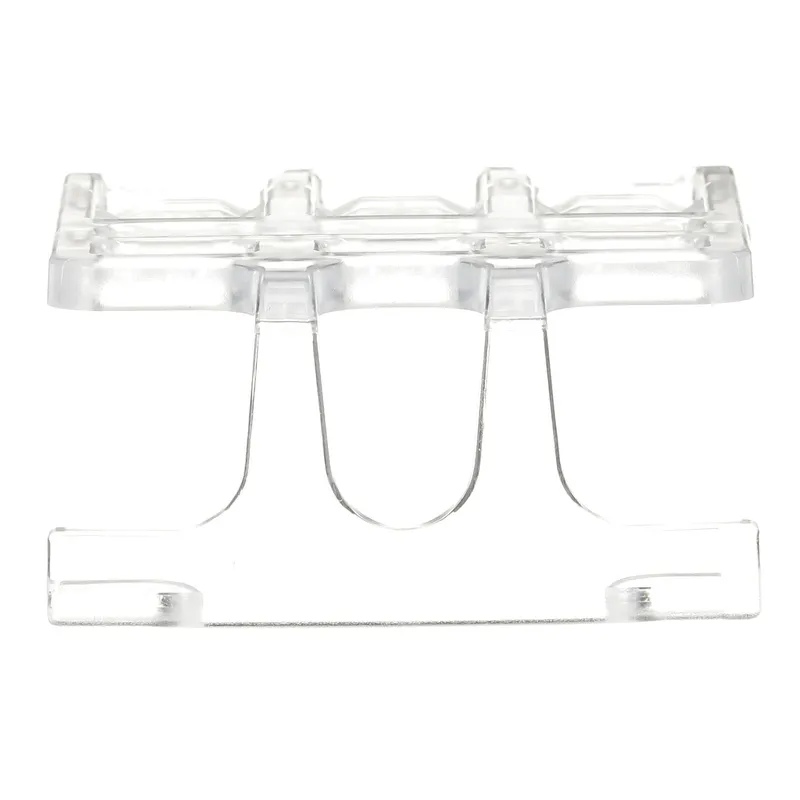

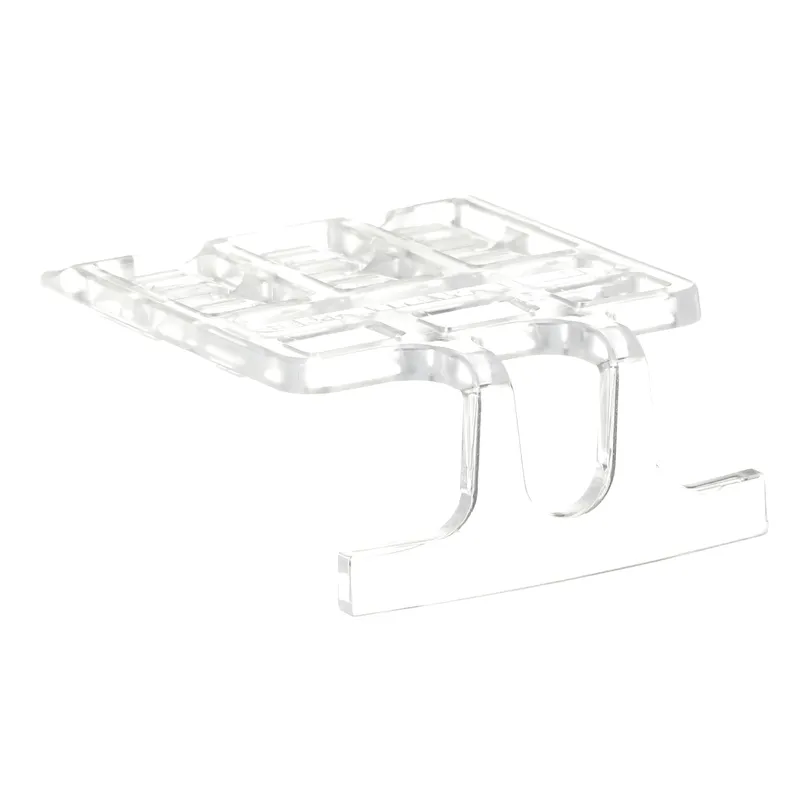

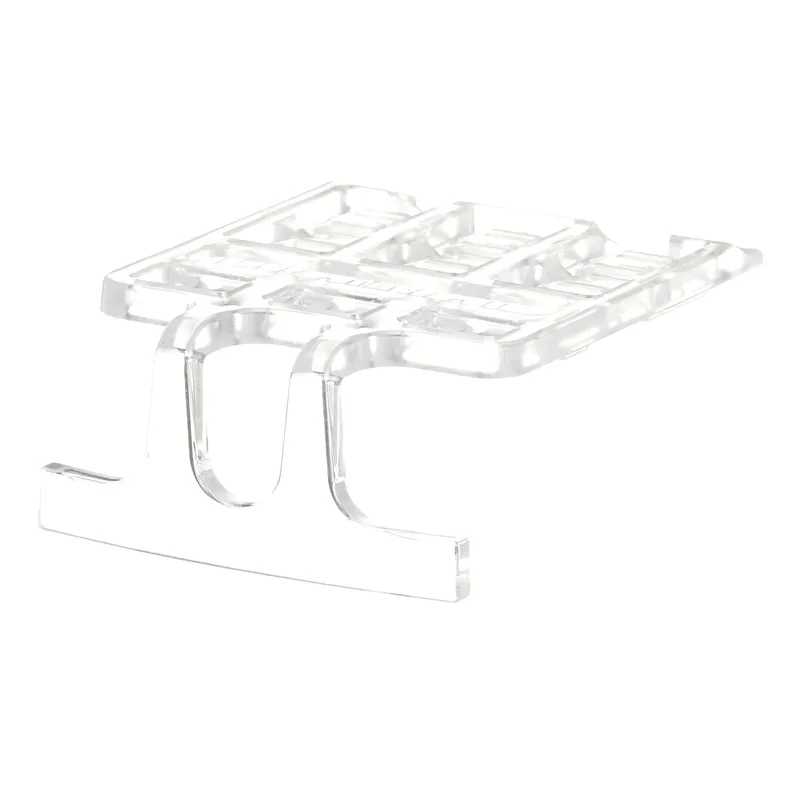

ABB 1SBN123401R1000 – LT65-30 Terminal Shroud
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | ABB Block Contactors |
| Lifecycle | Active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 0.015 kg |
| Country of origin | Poland |
| UPC / EAN | 3471523131187 |
Shipping & availability
When can 1SBN123401R1000 be shipped?
1SBN123401R1000 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 1SBN123401R1000 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 1SBN123401R1000 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 1SBN123401R1000, subject to availability and destination.
LT65-30 a terminal shroud designed to protect the main terminals of an AF(S)40...65, against accidental direct contact and to provide a comprehensive IP 20 degree of protection. Designed for rigid cables or flexible cables with insulated ferrules including a stripping length ≥ 18 mm.
• Safety and protection: make your installation safe, using a compact IP20 protection on the main terminals of a 3-pole AF contactor
• Easy to install: save time thanks to a compact design and a fast clipping on each top and bottom parts of the contactors.
Specifications
General
| Order code (ABB product ID) | 1SBN123401R1000 |
| Type | LT65-30 |
| Lifecycle | Active (current ABB product) |
| Country of origin | Poland |
Ordering
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 39211200 |
Dimensions
| Product Net Width | 54.5 mm |
| Product Net Depth / Length | 73 mm |
| Product Net Height | 27 mm |
| Product Net Weight | 0.015 kg |
Technical
| Degree of Protection | acc. to IEC 60529, IEC 60947-1, EN 60529 Main Terminals IP20 |
| Suitable For | AF40, AF52, AF65, AFS40, AFS52, AFS65, AFC40, AF52C, AFC65 |
| Product Name | Terminal Shroud |
Material Compliance
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| WEEE B2C / B2B | Business To Business |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
External Classifications and Standards
| ETIM 7 | EC002498 - Accessories for low-voltage switch technology |
| ETIM 8 | EC002498 - Accessories/spare parts for low-voltage switch technology |
| ETIM 9 | EC002498 - Accessories/spare parts for low-voltage switch technology |
| UNSPSC | 39122221 |
| IDEA Granular Category Code (IGCC) | 5219 >> Switch part or accessory |
| E-Number (Finland) | 3845400 |
Downloads & documentation
Official documents from ABB, downloaded directly from the manufacturer.
Data sheets & manuals
| Data Sheet, Technical Information (1SBC100214C0202) | |
| Instructions and Manuals (1SBC101050M6801) | |
| Instructions and Manuals (Part 2) (1SAC200017M0002) |
CAD & dimension drawings
| CAD Dimensional Drawing (2CDC001079B0201) |
