ABB 1SBN060100R1000 – RA4 Interface Relay
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | ABB Block Contactors |
| Lifecycle | Active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 0.04 kg |
| Country of origin | Italy |
| UPC / EAN | 3471523131149 |
Shipping & availability
When can 1SBN060100R1000 be shipped?
1SBN060100R1000 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 1SBN060100R1000 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 1SBN060100R1000 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 1SBN060100R1000, subject to availability and destination.

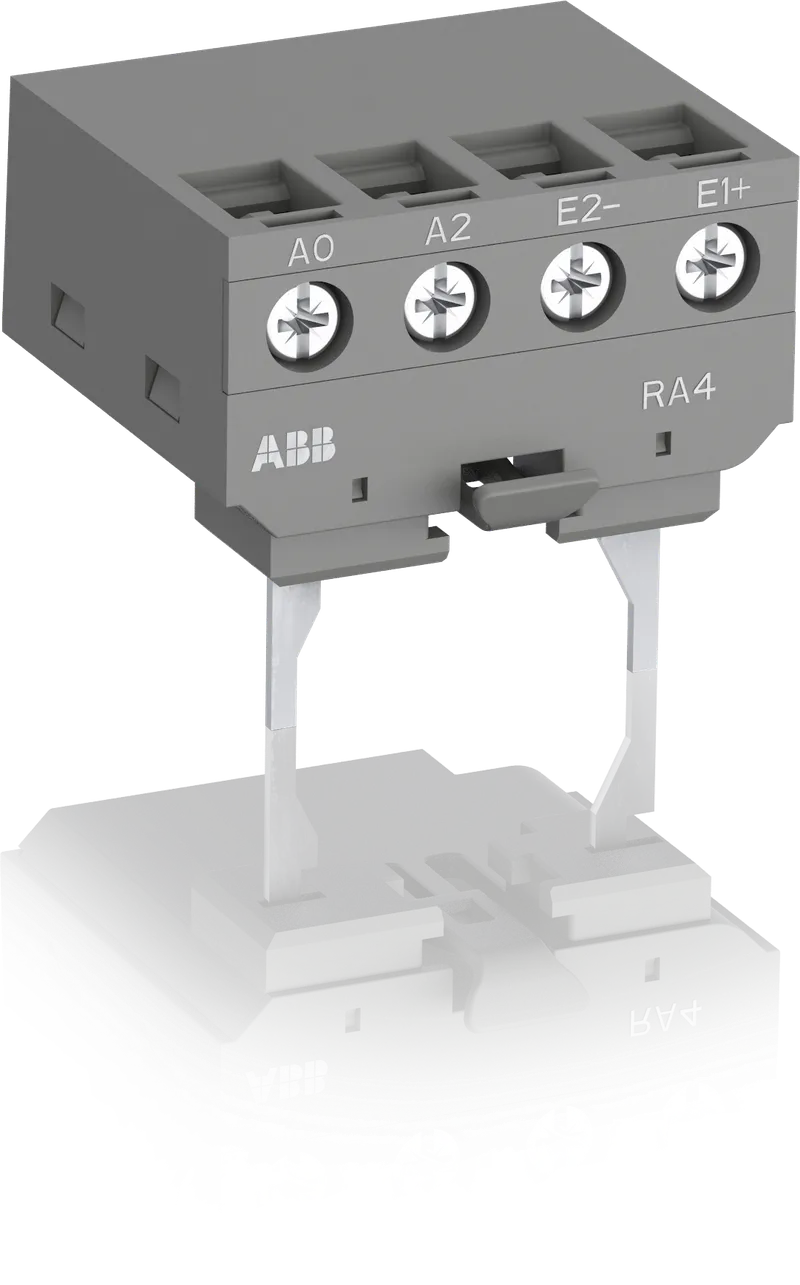

RA4 is an interface relay designed to receive 24 V DC signals delivered by PLC’s or other sources with a low output power and to restore them with sufficient power to operate the coils of the relevant AF09 ... AF96 contactors or the NF contactor relays. RA4 interface relay is made up of a miniature electromechanical relay equipped with a N.O. contact and with a low consumption 24 V DC coil. The interface relay coil is controlled by the PLC while the N.O. contact ensures switching of the power contactor.
• Easy to install: less compact than other market solutions, RA4 is simply clipped on the top of the contactor
• Optimum interface: it accept all 24 VDC low outpout power signals down to 20 mA 24 V DC
• Optimize your logistics and cost, thanks to 1 single RA4 interface relay for AF09...AF96 / NF monitoring control voltages up to 250V AC, without any additional accessory or wiring for assembling.
Specifications
General
| Order code (ABB product ID) | 1SBN060100R1000 |
| Type | RA4 |
| Lifecycle | Active (current ABB product) |
| Country of origin | Italy |
Ordering
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85364900 |
Dimensions
| Product Net Width | 44.8 mm |
| Product Net Depth / Length | 31.16 mm |
| Product Net Height | 40.5 mm |
| Product Net Weight | 0.04 kg |
Technical
| Standards | IEC/EN 60947-5-1, UL 60947-1, UL 60947-4-1, CSA C22.2 No. 60947-1-13, CSA C22.2 No. 60947-5-1-14 |
| Rated Frequency (f) | Control Circuit 50 / 60 Hz |
| Rated Insulation Voltage (U<sub>i</sub>) | acc. to IEC 60947-5-1 250 V, acc. to IEC 60947-5-1 and VDE 0110 (Gr. C) 250 V AC 50/60 Hz |
| Electrical Durability | 2000000 cycle |
| Maximum Electrical Switching Frequency | 600 cycles per hour |
| Rated Control Circuit Voltage (U<sub>c</sub>) | DC Operation 24 V |
| Connecting Capacity Control Circuit | Flexible with Ferrule 1/2x 0.75 ... 2.5 mm², Flexible with Insulated Ferrule 1x 0.75 ... 2.5 mm², Flexible with Insulated Ferrule 2x 0.75 ... 1.5 mm², Rigid Solid 1/2x 1 ... 2.5 mm², Rigid Stranded 1/2x 1 ... 2.5 mm² |
| Wire Stripping Length | Control Circuit 10 mm |
| Recommended Screw Driver | Control Circuit Pozidriv 2, Control Circuit Flat Ø 5.5 mm |
| Tightening Torque | Control Circuit 1.2 N·m |
| Terminal Type | Screw Terminals |
| Suitable For | AF09, AF09Z, AF12, AF12Z, AF16, AF16Z, AF26, AF26Z, AF30, AF30Z, AF38, AF38Z, AF40, AF52, AF65, AF80, AF96, NF22E, NFZ22E, NF31E, NFZ31E, NF40E, NFZ40E, NF44E, NFZ44E, NF53E, NFZ53E, NF62E, NFZ62E, NF71E, NFZ71E, NF80E, NFZ80E, NF33/11, NF51/11 |
| Product Name | Interface Relay |
Technical UL/CSA
| Connecting Capacity UL/CSA | Conductor 18 ... 14 AWG |
| Tightening Torque UL/CSA | Control Circuit 11 in·lb |
Environmental
| Ambient Air Temperature | Close to Contactor for Storage -40 ... 70 °C, Near Contactor for Operation in Free Air (0.85 ... 1.1 Uc) -25 ... +60 °C, Near Contactor for Operation in Free Air (Uc) at 24 VDC -25 ... 70 °C |
| Climatic Withstand | Category B according to IEC 60947-1 Annex Q |
| Maximum Operating Altitude Permissible | Without Derating 3000 m |
| Pollution Degree | 3 |
Material Compliance
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| WEEE B2C / B2B | Business To Business |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
External Classifications and Standards
| ETIM 7 | EC002498 - Accessories for low-voltage switch technology |
| ETIM 8 | EC002498 - Accessories/spare parts for low-voltage switch technology |
| ETIM 9 | EC002498 - Accessories/spare parts for low-voltage switch technology |
| UNSPSC | 39122331 |
| IDEA Granular Category Code (IGCC) | 5367 >> Control relay |
| E-Number (Sweden) | 3210710 |
Downloads & documentation
Official documents from ABB, downloaded directly from the manufacturer.
Data sheets & manuals
| Data Sheet, Technical Information (1SBC100214C0202) | |
| Instructions and Manuals (1SBC101051M6801) | |
| Instructions and Manuals (Part 2) (1SAC200017M0002) |
CAD & dimension drawings
| CAD Dimensional Drawing (2CDC001079B0201) |
