ABB 1SBN031005T1000 – VM3 Mechanical Interlock Unit

MPN: 1SBN031005T1000 · Brand: ABB

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	ABB Block Contactors
Lifecycle	Active
Warranty	12-month (new) · 3-month (used/refurbished)
Weight	0.002 kg
UPC / EAN	6975486359352

Shipping & availability

When can 1SBN031005T1000 be shipped?

1SBN031005T1000 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 1SBN031005T1000 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 1SBN031005T1000 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 1SBN031005T1000, subject to availability and destination.

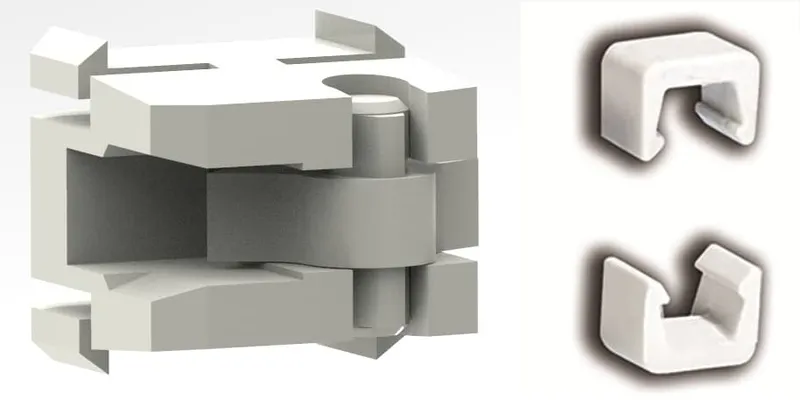

VM3 Mechanical Interlock Unit

Specifications

General

Order code (ABB product ID)	1SBN031005T1000
Type	VM3
Lifecycle	Active (current ABB product)

Ordering

Minimum Order Quantity	10 piece
Customs Tariff Number	85389099

Dimensions

Product Net Width	12.1 mm
Product Net Depth / Length	11.4 mm
Product Net Height	11.5 mm
Product Net Weight	0.002 kg

Technical

Number of Auxiliary Contacts NO	0
Number of Auxiliary Contacts NC	0
Suitable For	AS09, AS12, AS16, ASL09, ASL12, ASL16
Product Name	Mechanical Interlock Unit

Material Compliance

RoHS Information	Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
WEEE B2C / B2B	Business To Business
WEEE Category	5. Small Equipment (No External Dimension More Than 50 cm)

External Classifications and Standards

ETIM 7	EC001044 - Mechanic interlock for switch
ETIM 8	EC001044 - Mechanic interlock for switch
ETIM 9	EC001044 - Mechanic interlock for switch
eClass	V11.0 : 27371303
UNSPSC	39122221
IDEA Granular Category Code (IGCC)	5219 >> Switch part or accessory

Downloads & documentation

Official documents from ABB, downloaded directly from the manufacturer.

Data sheets & manuals

Data Sheet, Technical Information (1SBC100214C0202)
Instructions and Manuals (1SBC101020M9701)

CAD & dimension drawings

CAD Dimensional Drawing (2CDC001079B0201)

Certificates (4)

REACH Declaration (2CMT2021-006202)
RoHS Declaration (2CMT2021-006277)
Declaration of Conformity - CE (1SBD250058U1000)
Declaration of Conformity - UKCA (1SBD250059U1000)
