ABB 1SBN033405T1000 – VM96-4 Mechanical Interlock Unit
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | ABB Block Contactors |
| Lifecycle | Active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 0.006 kg |
| Country of origin | India |
| UPC / EAN | 3471523130937 |
Shipping & availability
When can 1SBN033405T1000 be shipped?
1SBN033405T1000 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 1SBN033405T1000 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 1SBN033405T1000 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 1SBN033405T1000, subject to availability and destination.

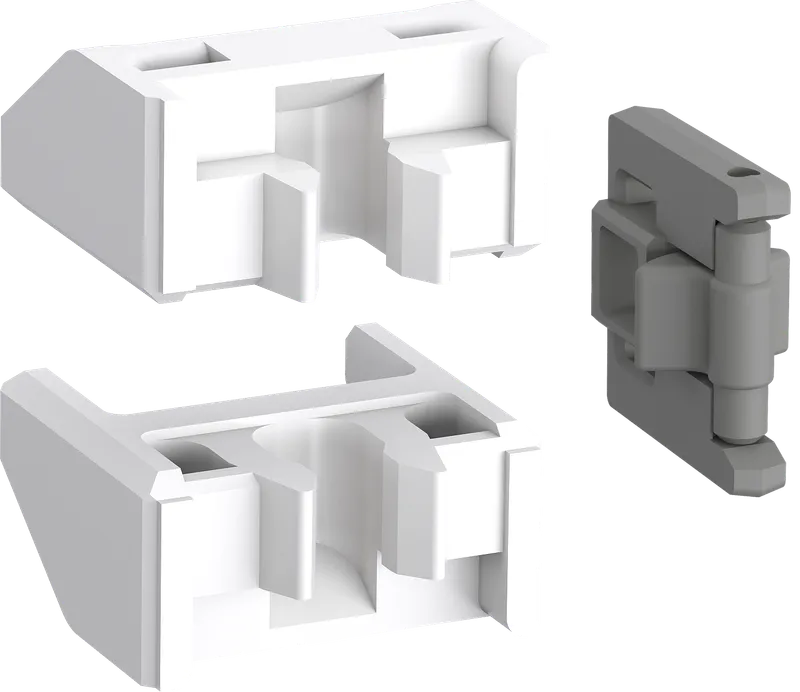

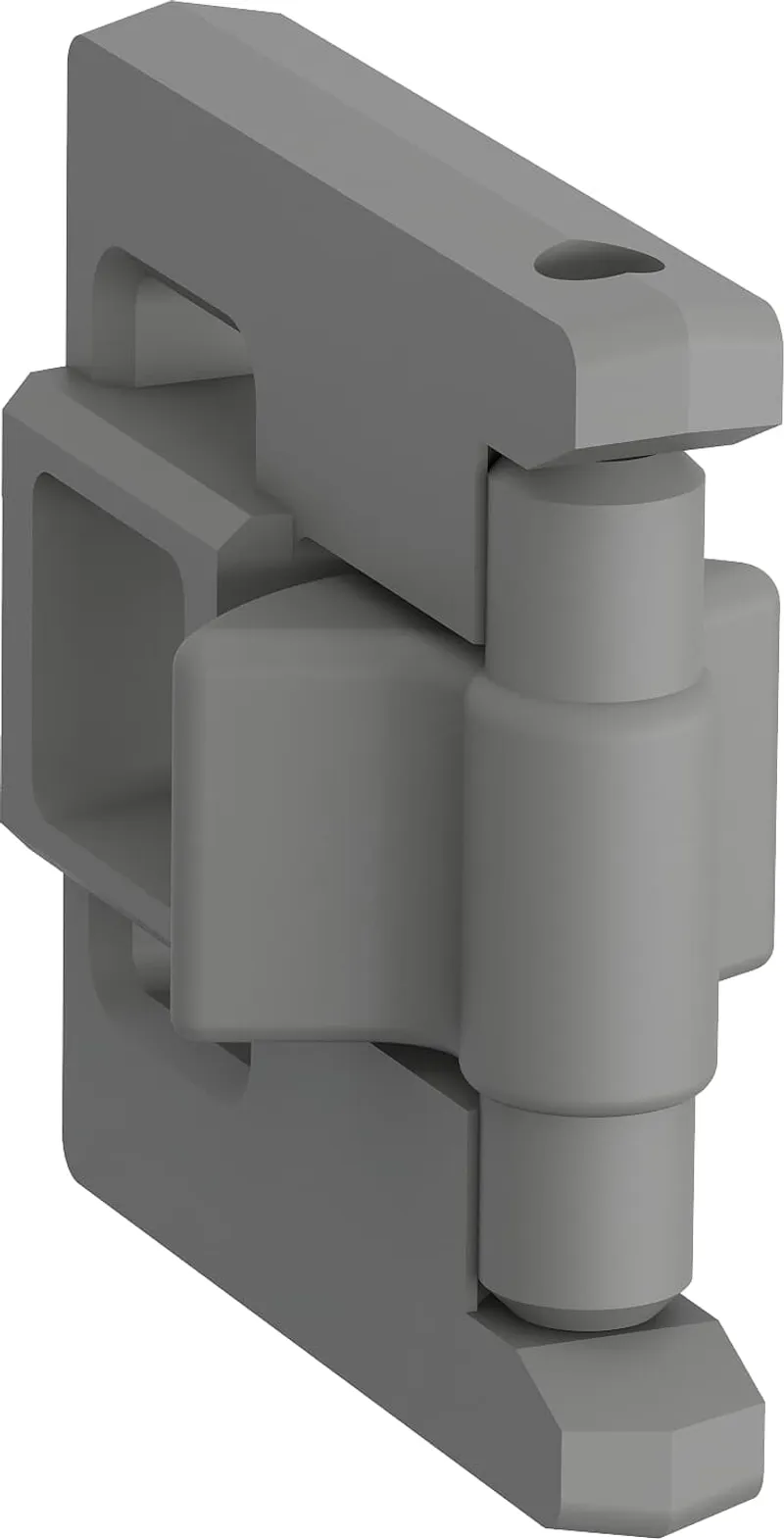

VM96-4 is a mechanical interlock unit designed for the interlocking side-by-side without additional width of two 3-pole or 4-pole contactors : AF40... AF96, AFC40... AFC96, AFS40... AFS96. When mounted between two contactors, the VM96-4 mechanical interlock unit prevents one of the contactors from closing as long as the other contactor is closed. The mechanical interlock unit VM96 includes 2 fixing clips (BB4).
Specifications
General
| Order code (ABB product ID) | 1SBN033405T1000 |
| Type | VM96-4 |
| Lifecycle | Active (current ABB product) |
| Country of origin | India |
Ordering
| Minimum Order Quantity | 10 piece |
| Customs Tariff Number | 85389099 |
Dimensions
| Product Net Width | 20 mm |
| Product Net Depth / Length | 10 mm |
| Product Net Height | 19.8 mm |
| Product Net Weight | 0.006 kg |
Technical
| Standards | IEC/EN 60947-4-1, UL 60947-1, UL 60947-4-1, CSA C22.2 No. 60947-1-13, CSA C22.2 No. 60947-4-1 |
| Suitable For | AF40, AF52, AF65, AF80, AF96, AFC40, AFC52, AFC65, AFC80, AFC96, AFS40, AFS52, AFS65, AFS80, AFS96, AF40B, AF52B, AF65B, AF80B, AF96B |
| Product Name | Mechanical Interlock Unit |
Material Compliance
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| WEEE B2C / B2B | Business To Business |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
External Classifications and Standards
| ETIM 7 | EC001044 - Mechanic interlock for switch |
| ETIM 8 | EC001044 - Mechanic interlock for switch |
| ETIM 9 | EC001044 - Mechanic interlock for switch |
| eClass | V11.0 : 27371303 |
| UNSPSC | 39122221 |
| IDEA Granular Category Code (IGCC) | 5219 >> Switch part or accessory |
| E-Number (Finland) | 3707149 |
| E-Number (Sweden) | 3210175 |
Downloads & documentation
Official documents from ABB, downloaded directly from the manufacturer.
Data sheets & manuals
| Data Sheet, Technical Information (1SBC100214C0202) | |
| Instructions and Manuals (1SBC101040M6801) | |
| Instructions and Manuals (Part 2) (1SAC200017M0002) |
CAD & dimension drawings
| CAD Dimensional Drawing (2CDC001079B0201) |
More ABB parts
Available on requestVM5X-1 Block Contactor AccessoriesAvailable on requestVM5X-12 Block Contactor AccessoriesAvailable on requestVM5X-2 Block Contactor Accessories

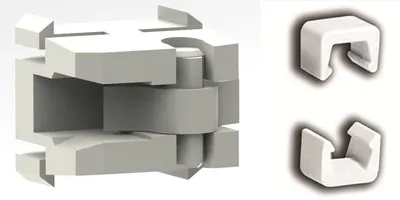

Available on requestVM3 Mechanical Interlock Unit
