ABB 1SBN030210R1000 – VE5-2 Mechanical and Electrical Interlock Unit
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | ABB Block Contactors |
| Lifecycle | Active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 0.146 kg |
| Country of origin | India |
| UPC / EAN | 3471522121387 |
Shipping & availability
When can 1SBN030210R1000 be shipped?
1SBN030210R1000 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 1SBN030210R1000 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 1SBN030210R1000 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 1SBN030210R1000, subject to availability and destination.

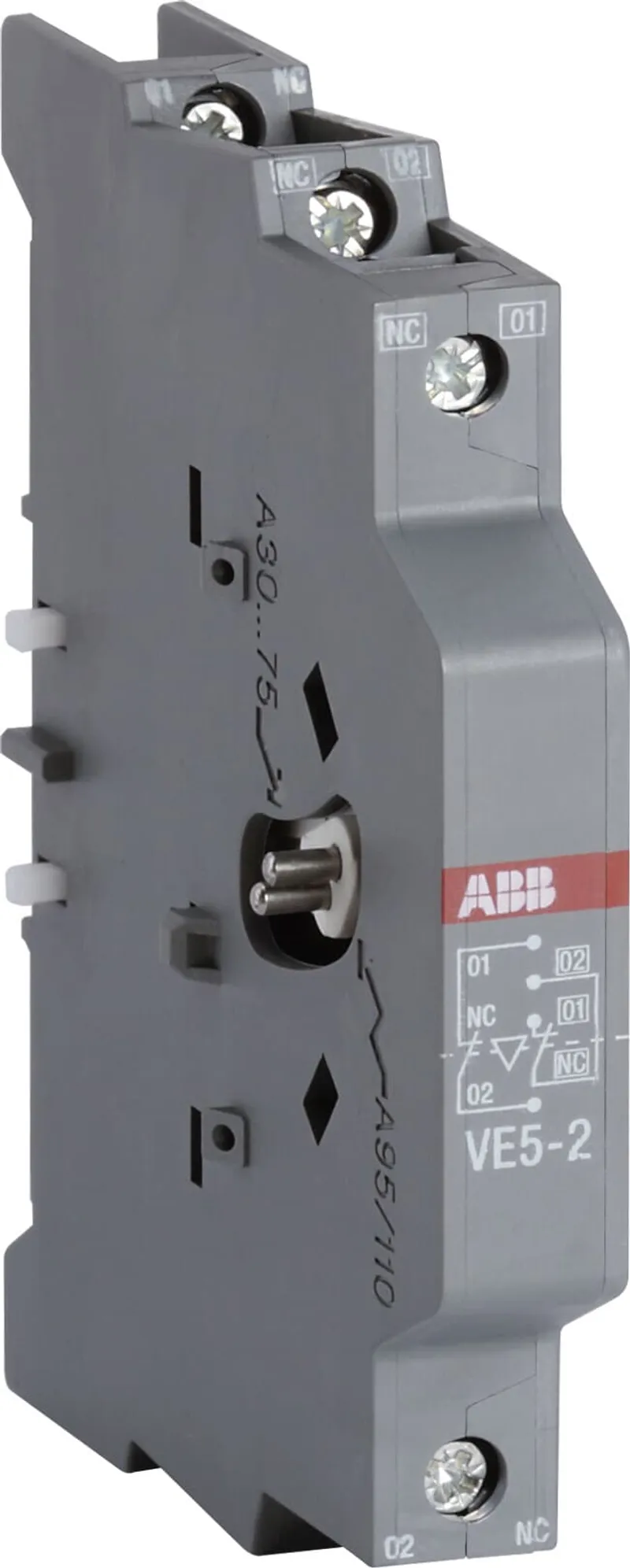

VE5-2 is a mechanical and electrical interlock unit used for the mechanical and electrical interlocking of two contactor of the A contactor serie, in the case, e.g. of reversing contactors, changeover contactors or star-delta starters.
VE5-2 includes 2 built-in N.C. interlocking contacts allowing to create the electrical interlocking with wiring to the respective contactor's coils.
VE5-1 is available in multiple pack.
Specifications
General
| Order code (ABB product ID) | 1SBN030210R1000 |
| Type | VE5-2 |
| Lifecycle | Active (current ABB product) |
| Country of origin | India |
Ordering
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85389099 |
Dimensions
| Product Net Width | 15 mm |
| Product Net Depth / Length | 89.65 mm |
| Product Net Height | 108 mm |
| Product Net Weight | 0.146 kg |
Technical
| Number of Auxiliary Contacts NC | 2 |
| Number of Poles | 2P |
| Standards | IEC/EN 60941-5-1, UL 60947-1, UL 60947-5-1, CSA C22.2 No. 60947-1-13, CSA C22.2 No. 60947-5-1-14 |
| Rated Operational Voltage | Auxiliary Circuit 690 V |
| Rated Frequency (f) | Auxiliary Circuit 50 / 60 Hz |
| Conventional Free-air Thermal Current (I<sub>th</sub>) | acc. to IEC 60947-5-1, Θ = 40 °C 16 A |
| Rated Operational Current AC-15 (I<sub>e</sub>) | (500 V) 2 A, (690 V) 2 A, (24 / 127 V) 6 A, (220 / 240 V) 4 A, (380 / 400 V) 3 A |
| Rated Operational Current DC-13 (I<sub>e</sub>) | (24 V) 6 A, (48 V) 2.8 A, (72 V) 1 A, (125 V) 0.55 A, (250 V) 0.3 A |
| Short-Circuit Protective Devices | Auxiliary Circuit - gG Type Fuses 10 A |
| Rated Insulation Voltage (U<sub>i</sub>) | acc. to IEC 60947-5-1 690 V, acc. to UL/CSA 600 V |
| Mechanical Durability | 5 million |
| Power Loss | at Rated Operating Conditions per Pole 0.1 W |
| Degree of Protection | acc. to IEC 60529, IEC 60947-1, EN 60529 Auxiliary Terminals IP20 |
| Terminal Type | Screw Terminals |
| Suitable For | AF45, AF50, AF63, AF75, AF95B, A30, A40, A45, A50, A63, A75, A95, A110, AE45, AE50, AE63, AE75, TAE45, TAE50, TAE75, GA75, GAE75, AX32, AX40, AX50, AX65, AX80, AX95, AX115, AX150 |
| Product Name | Mechanical and Electrical Interlock Unit |
Material Compliance
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| WEEE B2C / B2B | Business To Business |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
External Classifications and Standards
| ETIM 7 | EC001044 - Mechanic interlock for switch |
| ETIM 8 | EC001044 - Mechanic interlock for switch |
| ETIM 9 | EC001044 - Mechanic interlock for switch |
| eClass | V11.0 : 27371303 |
| UNSPSC | 39122221 |
| IDEA Granular Category Code (IGCC) | 5219 >> Switch part or accessory |
Downloads & documentation
Official documents from ABB, downloaded directly from the manufacturer.
Data sheets & manuals
| Data Sheet, Technical Information (1SBC100214C0202) | |
| Instructions and Manuals (FPTC407713P0002) |
CAD & dimension drawings
| CAD Dimensional Drawing (2CDC001079B0201) |
