ABB 1SBN030113R1000 – VEM4K Mechanical and Electrical Interlock Set
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | ABB Block Contactors |
| Lifecycle | Active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 0.03 kg |
| UPC / EAN | 3471523131392 |
Shipping & availability
When can 1SBN030113R1000 be shipped?
1SBN030113R1000 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 1SBN030113R1000 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 1SBN030113R1000 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 1SBN030113R1000, subject to availability and destination.
VEM4K is a mechanical and electrical interlock set for the interlocking interlocking side-by-side without additional width of two AF09 ... AF38..K or AFC09 ... AFC38..K contactors equipped with Push-In Spring terminals.

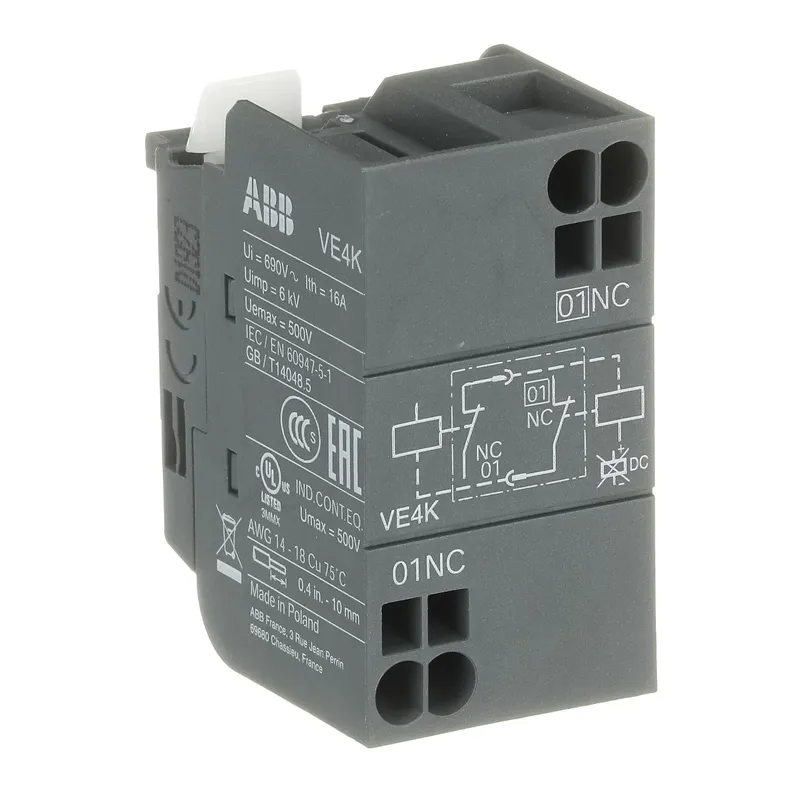

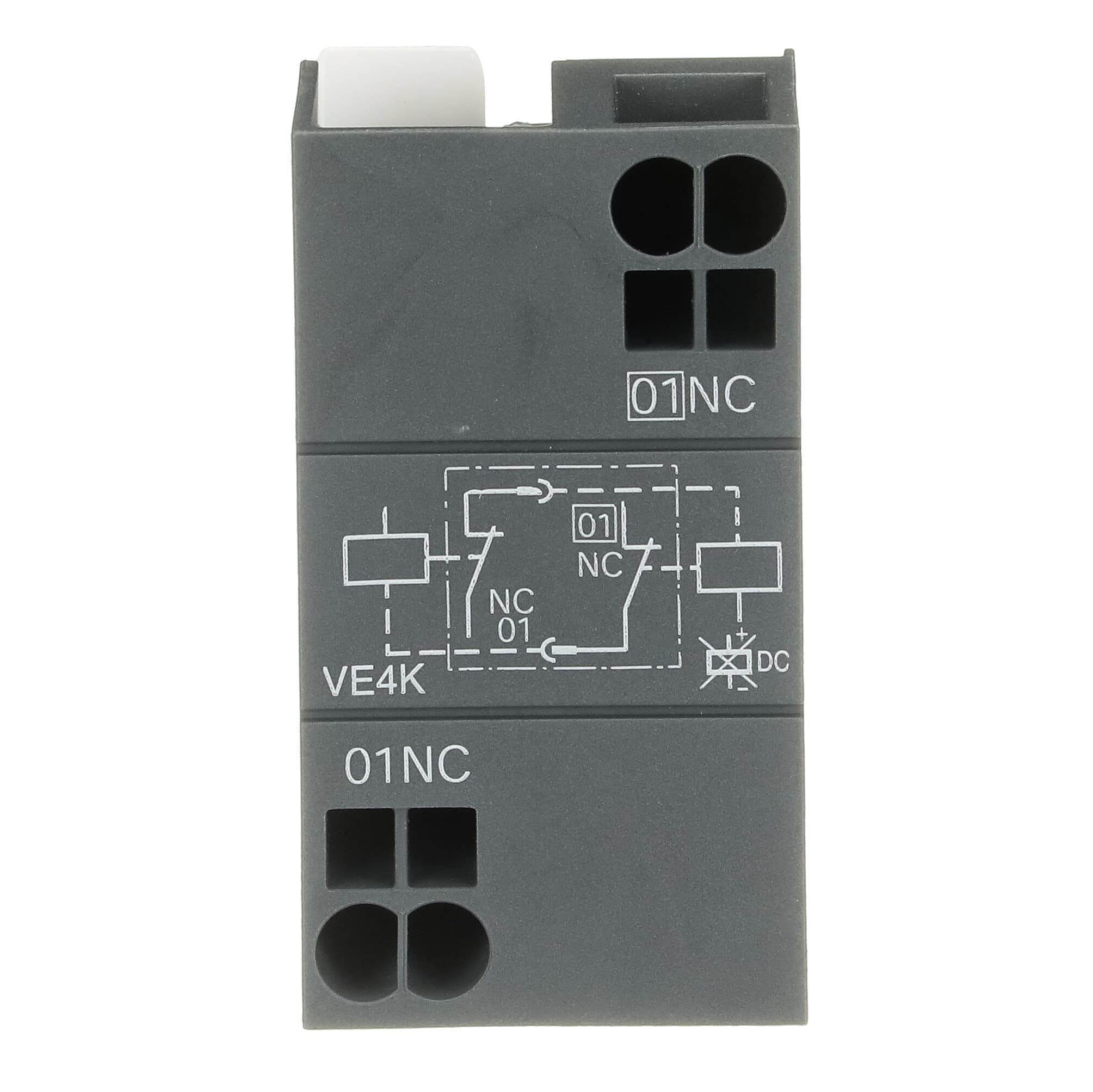

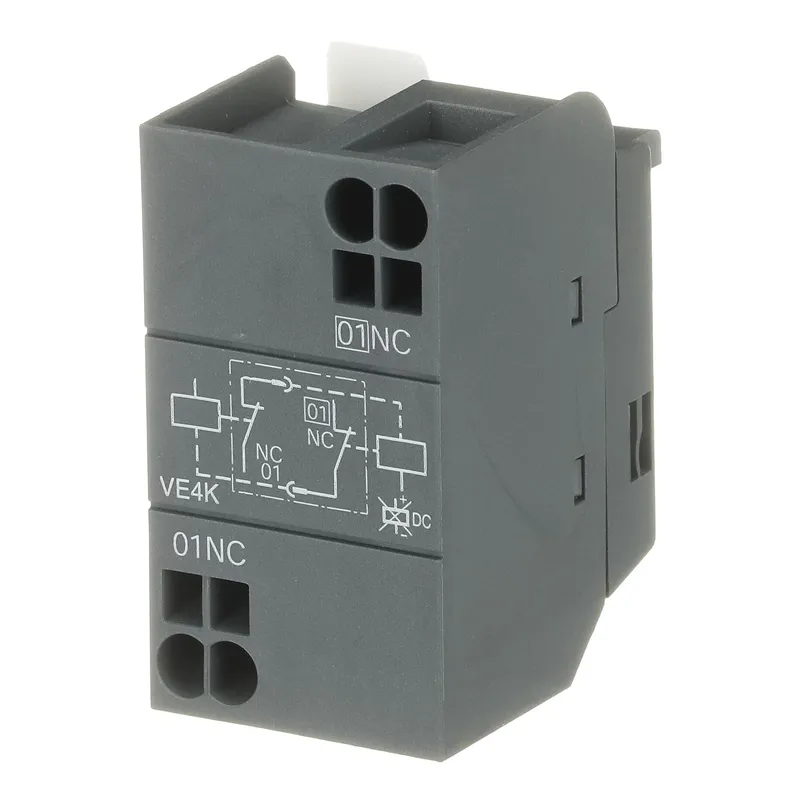

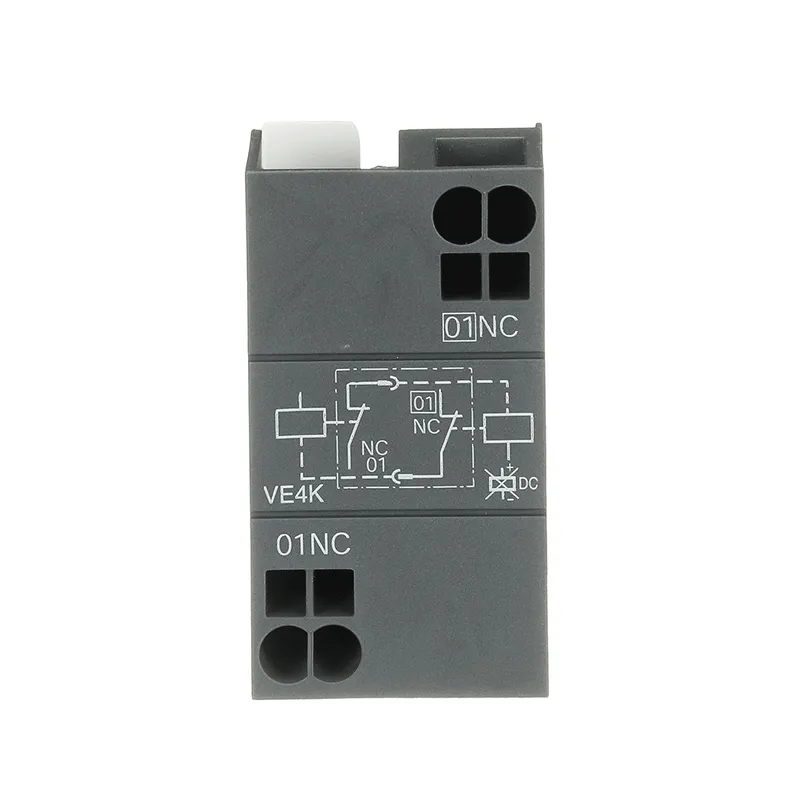

VEM4K set includes a mechanical interlock unit VM4 with 2 fixing clips (BB4) and a VE4K electrical interlock block with A2-A2 connection.
Fixing the electrical interlock block on the front of the contactors connects the 2 built-in N.C. interlocking contacts to the two coils saving up to 50% less wiring compared to conventional electrical interlocking.
VE4K block must be used with A2-A2 connection to respect the electrical connection diagram.
Specifications
General
| Order code (ABB product ID) | 1SBN030113R1000 |
| Type | VEM4K |
| Lifecycle | Active (current ABB product) |
Ordering
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85389099 |
Dimensions
| Product Net Width | 25 mm |
| Product Net Depth / Length | 31.6 mm |
| Product Net Height | 43 mm |
| Product Net Weight | 0.03 kg |
Technical
| Number of Auxiliary Contacts NO | 0 |
| Number of Auxiliary Contacts NC | 2 |
| Number of Poles | 2P |
| Standards | IEC/EN 60947-5-1, UL 60947-1, UL 60947-4-1, CSA C22.2 No. 60947-1-13, CSA C22.2 No. 60947-4-1 |
| Conventional Free-air Thermal Current (I<sub>th</sub>) | acc. to IEC 60947-5-1, Θ = 40 °C 16 A |
| Rated Insulation Voltage (U<sub>i</sub>) | acc. to IEC 60947-5-1 690 V |
| Rated Impulse Withstand Voltage (U<sub>imp</sub>) | 6 kV |
| Maximum Electrical Switching Frequency | 1200 cycles per hour |
| Mechanical Durability | 5 million |
| Maximum Mechanical Switching Frequency | 1800 cycles per hour |
| Connecting Capacity Auxiliary Circuit | Flexible with Ferrule 1/2x 0.5 ... 2.5 mm², Flexible with Insulated Ferrule 1/2x 0.5 ... 1.5 mm², Flexible 1/2x 0.5 ... 2.5 mm², Rigid 1/2x 1 ... 2.5 mm² |
| Wire Stripping Length | Auxiliary Circuit 10 mm |
| Degree of Protection | acc. to IEC 60529, IEC 60947-1, EN 60529 Auxiliary Terminals IP20 |
| Terminal Type | Push-in Spring Terminals |
| Suitable For | AF09, AF09Z, AF12, AF12Z, AF16, AF16Z, AF26, AF26Z, AF30, AF30Z, AF38, AF38Z, AFC09, AFC12, AFC16, AFC26, AFC30, AFC38, AF09B, AF09ZB, AF12B, AF12ZB, AF16B, AF16ZB, AF26B, AF26ZB, AF30B, AF30ZB, AF38B, AF38ZB |
| Product Name | Mechanical and Electrical Interlock Set |
Technical UL/CSA
| Maximum Operating Voltage UL/CSA | Auxiliary Circuit 500 V AC/DC |
Material Compliance
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| WEEE B2C / B2B | Business To Business |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
External Classifications and Standards
| ETIM 7 | EC001044 - Mechanic interlock for switch |
| ETIM 8 | EC001044 - Mechanic interlock for switch |
| ETIM 9 | EC001044 - Mechanic interlock for switch |
| eClass | V11.0 : 27371303 |
| UNSPSC | 39120000 |
| E-Number (Finland) | 3708089 |
| E-Number (Sweden) | 3210696 |
Downloads & documentation
Official documents from ABB, downloaded directly from the manufacturer.
Data sheets & manuals
| Data Sheet, Technical Information (1SBC100214C0202) | |
| Instructions and Manuals (1SBC101028M6801) | |
| Instructions and Manuals (Part 2) (1SAC200017M0002) |
CAD & dimension drawings
| CAD Dimensional Drawing (2CDC001079B0201) |
