ABB 1SBN030100R1000 – VM5-1 Mechanical Interlock Unit
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | ABB Block Contactors |
| Lifecycle | Active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 0.066 kg |
| Country of origin | India |
| UPC / EAN | 3471522121363 |
Shipping & availability
When can 1SBN030100R1000 be shipped?
1SBN030100R1000 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 1SBN030100R1000 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 1SBN030100R1000 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 1SBN030100R1000, subject to availability and destination.

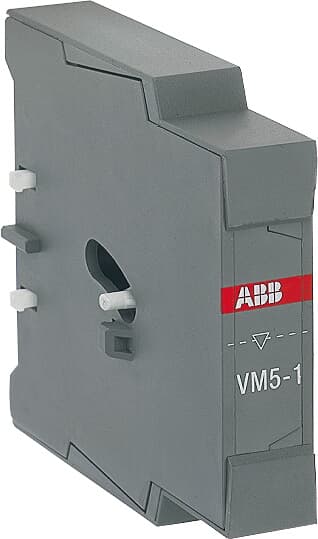

VM5-1 is a mechanical interlock unit used for the mechanical interlocking of two contactors of the A contactor serie, in the case, e.g. of reversing contactors, changeover contactors or star-delta starters. Electrical interlocking is generally provided through additionnal N.C. auxiliary contacts fitted on contactors and wired with the respective contactor's coil terminals.
Specifications
General
| Order code (ABB product ID) | 1SBN030100R1000 |
| Type | VM5-1 |
| Lifecycle | Active (current ABB product) |
| Country of origin | India |
Ordering
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85389099 |
Dimensions
| Product Net Width | 15 mm |
| Product Net Depth / Length | 71 mm |
| Product Net Height | 70 mm |
| Product Net Weight | 0.066 kg |
Technical
| Standards | IEC/EN 60947-4-1, UL 60947-1, UL 60947-5-1, CSA C22.2 No. 60947-1-13, CSA C22.2 No. 60947-5-1-14 |
| Suitable For | A9, A12, A16, A26, A30, A40, AL9, AL9Z, AL12, AL12Z, AL16, AL16Z, AL26, AL30, AL40, TAL9, TAL12, TAL16, TAL26, TAL30, TAL40, AX06, AX09, AX12, AX18, AX25, AX32, AX40 |
| Product Name | Mechanical Interlock Unit |
Material Compliance
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| WEEE B2C / B2B | Business To Business |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
External Classifications and Standards
| ETIM 7 | EC001044 - Mechanic interlock for switch |
| ETIM 8 | EC001044 - Mechanic interlock for switch |
| ETIM 9 | EC001044 - Mechanic interlock for switch |
| eClass | V11.0 : 27371303 |
| UNSPSC | 39122221 |
| IDEA Granular Category Code (IGCC) | 5219 >> Switch part or accessory |
Downloads & documentation
Official documents from ABB, downloaded directly from the manufacturer.
Data sheets & manuals
| Data Sheet, Technical Information (1SBC100214C0202) | |
| Instructions and Manuals (FPTC407718P0001) |
CAD & dimension drawings
| CAD Dimensional Drawing (2CDC001079B0201) |
