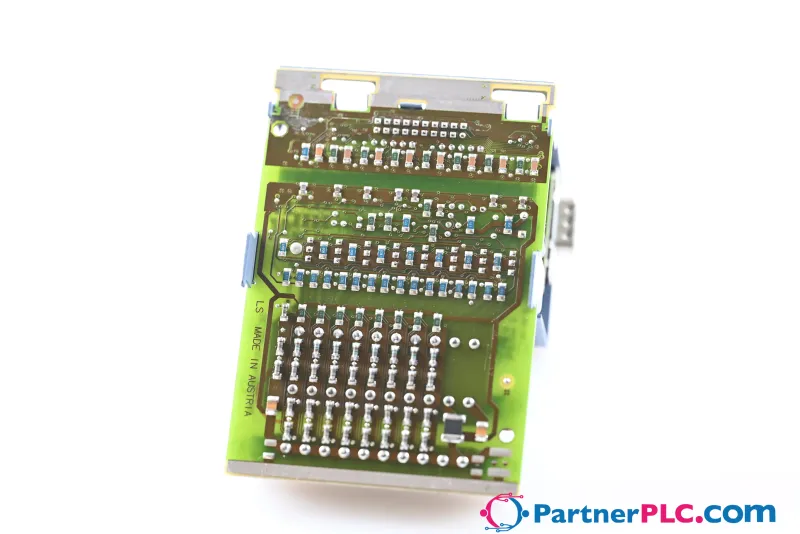

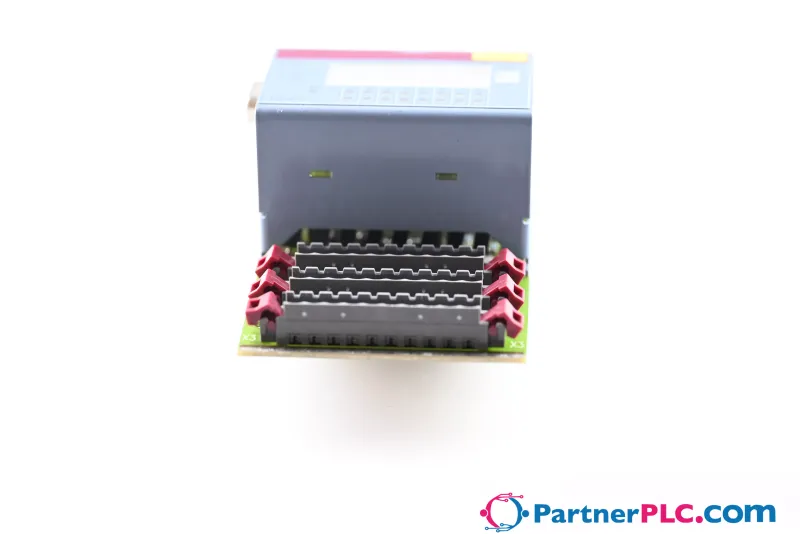

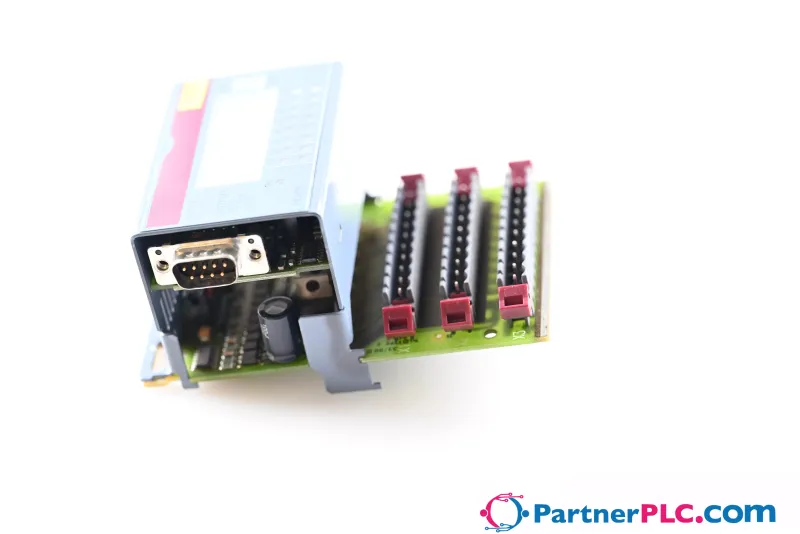

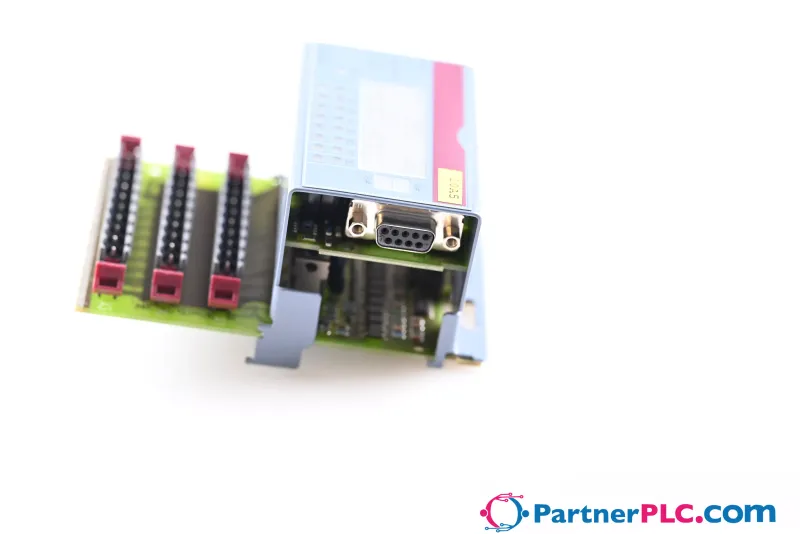

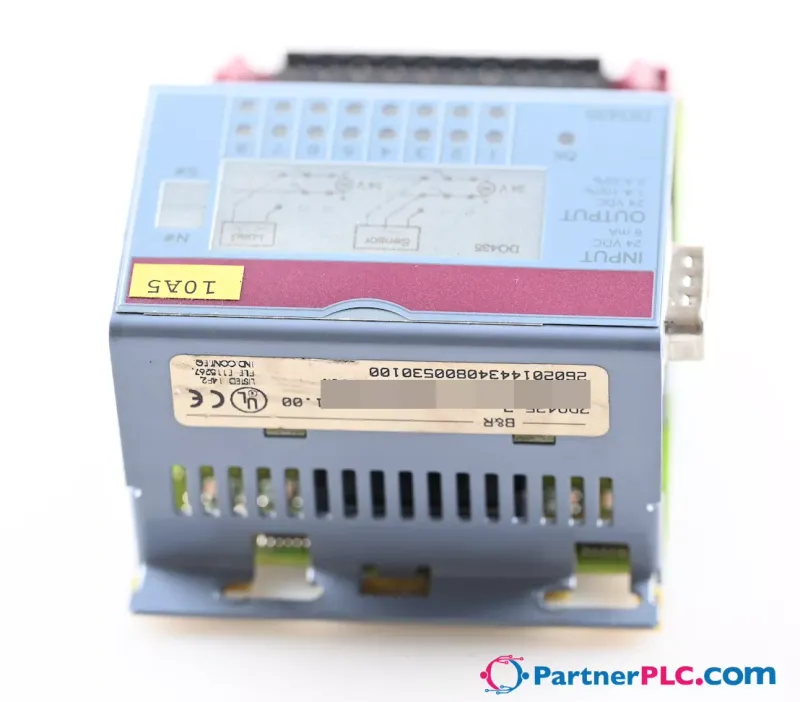

B&R 7DO435.7

2003 digital output module, 8 FET outputs 24 VDC, 2 A, each output can be used as an input optionally

MPN: 7DO435.7
Category: Digital I/O Modules

€84.80excl. VAT & shipping

In stock — 2 available·Ships within 1 business day

Need a larger quantity or a formal quote?

Request a Quote

3-month warranty
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

What is the B&R 7DO435.7?

2003 digital output module, 8 FET outputs 24 VDC, 2 A, each output can be used as an input optionally, order 3x terminal block 7TB710 separately!

Specifications

General information

C-UL-US listed	Yes
B&R ID code	$EB
Module type	B&R 2003 I/O module, single-width
Voltage monitoring (LED: U OK)	Yes Supply voltage >18 V
Power consumption	Max. 0.5 W
Number of outputs	Max. 8
Type	FET
Switching voltage/supply – Minimum	18 VDC
Switching voltage/supply – Rated	24 VDC
Switching voltage/supply – Maximum	30 VDC
Continuous current per – Output	Max. 2 A
Continuous current per – Module	Max. 8 A
Simultaneousness at 1 A at 2 A	100 % 50 % (note derating curve on page 10)
Residual voltage	Max. 1 V at 2 A
Protection – Short circuit protection	Yes
Protection – Overload protection	Yes
Short circuit current at 24 V	Approx. 20 A until switched off
Braking voltage when switching off inductive loads	Approx. 46 V
Switching delay log. 0 - log. 1 log. 1 - log. 0	Approx. 200 µs Typ. 50 µs / max. 250 µs Typ. 170 µs / max. 250 µs
Maximum switching frequency – Resistive load	100 Hz
Electrical isolation	Output - PLC
With this module, each channel can be used either as an input or output. All outputs must first be declared as such. Each time the module is turned on, all channels are configured as inputs. – Controller / Access	Declaration Automatic By user
With this module, each channel can be used either as an input or output. All outputs must first be declared as such. Each time the module is turned on, all channels are configured as inputs. – CPU for the PLC 2003	z
With this module, each channel can be used either as an input or output. All outputs must first be declared as such. Each time the module is turned on, all channels are configured as inputs. – Remote Slaves	z
With this module, each channel can be used either as an input or output. All outputs must first be declared as such. Each time the module is turned on, all channels are configured as inputs. – CAN Slaves	z
With this module, each channel can be used either as an input or output. All outputs must first be declared as such. Each time the module is turned on, all channels are configured as inputs. – Access using CAN Identifiers	z Digital Output Module DO435

Accessories

Required accessories (order separately)

7TB710.91	Terminal blocks — The single row 10-pin terminal block TB710 is used for making connections on various B&R I/O modules.
7TB710.9	Terminal blocks — The single row 10-pin terminal block TB710 is used for making connections on various B&R I/O modules.

Downloads & documentation

Official documents from B&R, downloaded directly from the manufacturer.

Data sheets & manuals

Datasheet 7DO435.7PDF · 1,008 KB · 1.20 (11/30/2007) - EN
