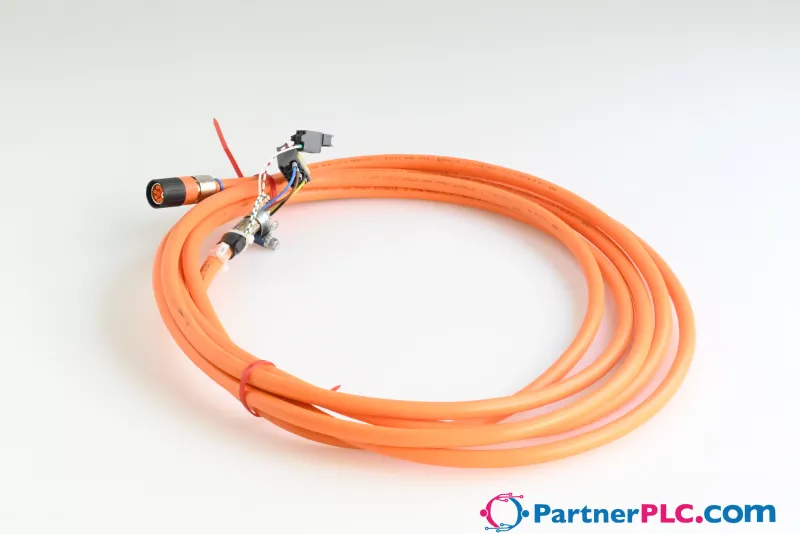

B&R 8BCM0005.1034C-0

Servo & Motion Control

MPN: 8BCM0005.1034C-0
Category: Servo & Motion Control

€242.74excl. VAT & shipping

In stock — 2 available·Ships within 1 business day

Need a larger quantity or a formal quote?

Request a Quote

3-month warranty
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

What is the B&R 8BCM0005.1034C-0?

Servo & Motion Control

Specifications

General information

Certifications – CE	Yes
Certifications – UKCA	Yes
Certifications – CRA (Cyber Resilience Act)	Not applicable
Certifications – UL	cULus E225616; Power conversion equipment
Cable cross section	4x 0.75 mm² + 2x 2x 0.34 mm²
Durability	Oil resistance per HD 22.10 appendix A, DIN EN 60811-404 (note: Values refer to the raw cable being used.)
Certification	E170315 cRUus AWM STYLE 21223 AWM I/II A/B 80°C 1000 V FT1 (note: Values refer to the raw cable being used.)

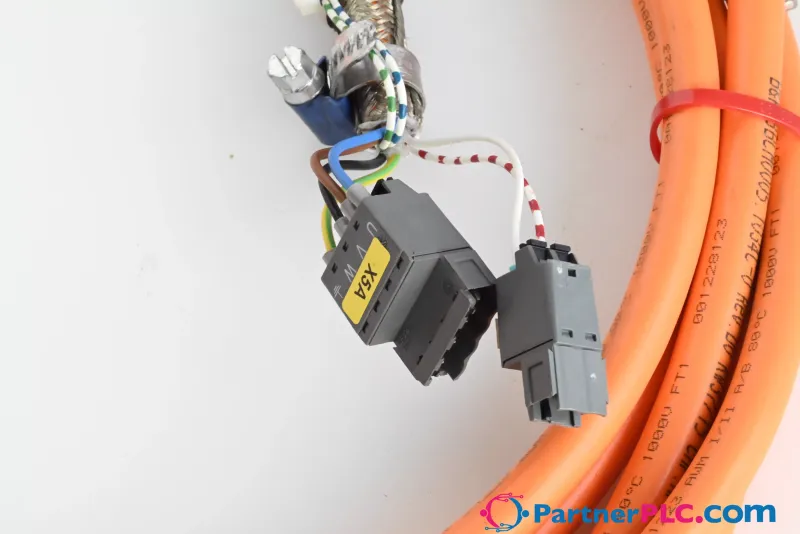

Cable construction

Power lines – Quantity	4
Power lines – Wire insulation	PP
Power lines – Wire colors	Black, brown, blue, yellow/green
Power lines – Variant	Tinned copper stranded wire
Power lines – Cross section	0.75 mm²
Power lines – Shield	No
Power lines – Stranding	No
Signal line – Quantity	4
Signal line – Wire insulation	PP
Signal line – Wire colors	White, white/red, white/blue, white/green
Signal line – Variant	Tinned copper stranded wire
Signal line – Cross section	0.34 mm²
Signal line – Shield	Individually shielded in pairs, tinned copper braiding, optical coverage >85% and foil shield
Signal line – Stranding	White with white/red and white/blue with white/green
Outer jacket – Material	PUR
Outer jacket – Color	Orange, similar to RAL 2003 flat

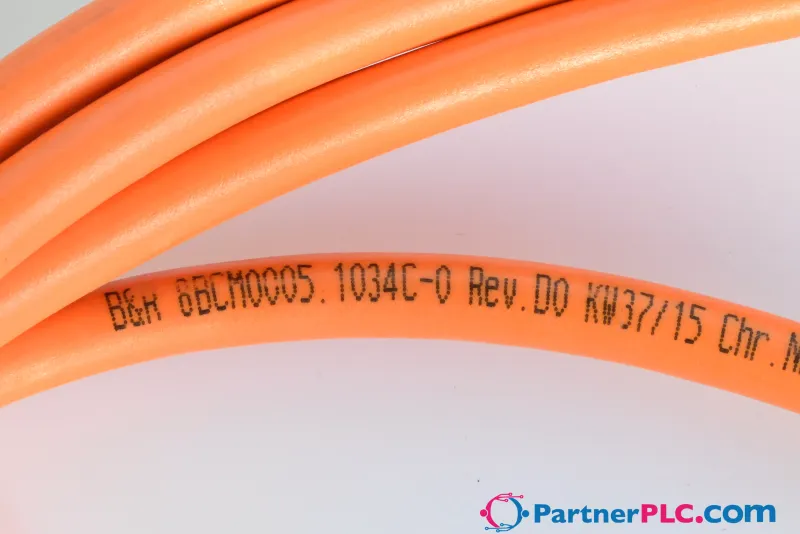

Outer jacket – Labeling	B&R 4 G 0.75 + 2 x (2x0.34)C C E170315 cRUus AWM STYLE 21223 AWM I/II A/B 80°C 1000 V FT1 production order number (note: Values refer to the raw cable being used.)
Cable stranding	With filler elements and foil shield
Cable shield	Tinned copper braiding, optical coverage >85% and foil shield

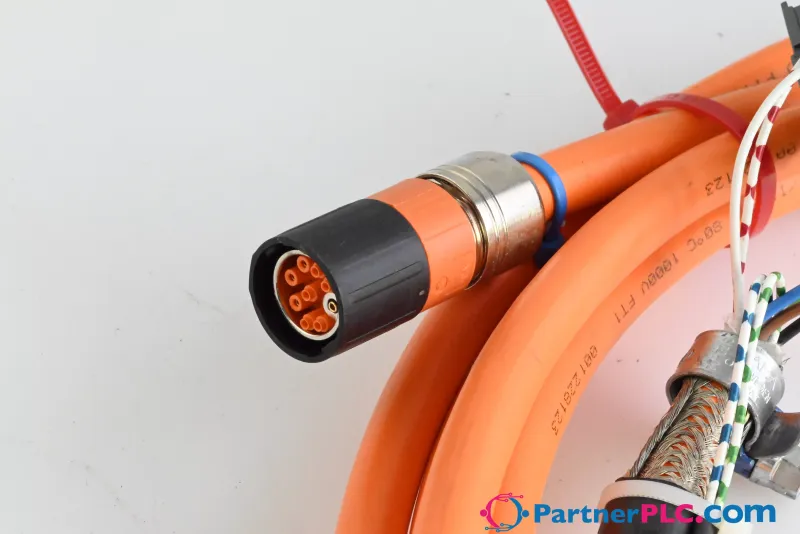

Connector

Type	8-pin female series 915 power connector
Mating cycles	<500
Contacts	8 (4 power and 4 signal contacts)
Degree of protection per EN 60529	IP66/67 when connected

Electrical properties

Test voltage – Wire - Wire	4 kV
Test voltage – Wire - Shield	4 kV
Conductor resistance – Power lines	≤26.7 Ω/km
Conductor resistance – Signal line	≤56 Ω/km
Current-carrying capacity per DIN VDE 0298 part 4, table 11 – Wall mounting	13 A
Current-carrying capacity per DIN VDE 0298 part 4, table 11 – Installed in conduit or cable duct	11.5 A
Current-carrying capacity per DIN VDE 0298 part 4, table 11 – Installed in cable tray	13.5 A
Insulation resistance	≥500 MΩ*km

Ambient conditions

Temperature – Moving	-20°C to +80°C
Temperature – Static	-20°C to +90°C

Mechanical properties

Dimensions – Length	5 m
Dimensions – Diameter	10.1 mm ±0.3 mm
Bend radius – Single bend	>32 mm
Bend radius – Moving	>78 mm
Drag chain data – Acceleration	Max. 50 m/s² (depends on the length of the travel path)
Drag chain data – Flex cycles	≥5,000,000 (note: At an ambient temperature of 20°C and bend radius of 125 mm.)
Drag chain data – Velocity	Max. 300 m/min
Weight	0.45 kg

Downloads & documentation

Official documents from B&R, downloaded directly from the manufacturer.

Data sheets & manuals

Datasheet 8BCM0005.1034C-0PDF · 231 KB · 1.6 (10/06/2020) - EN
