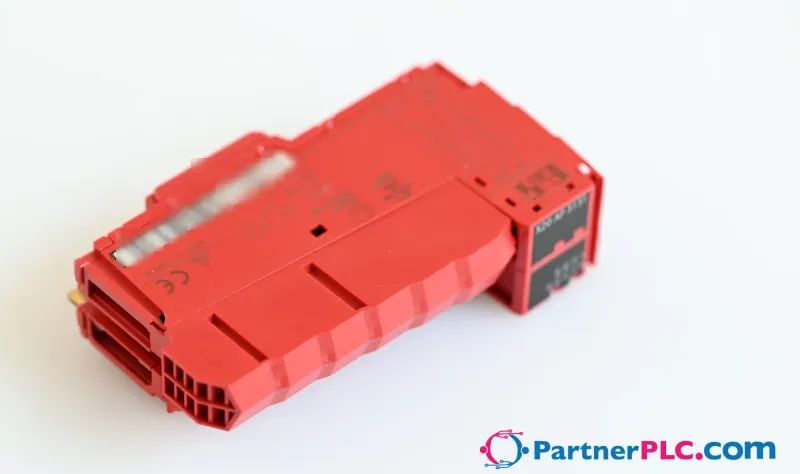

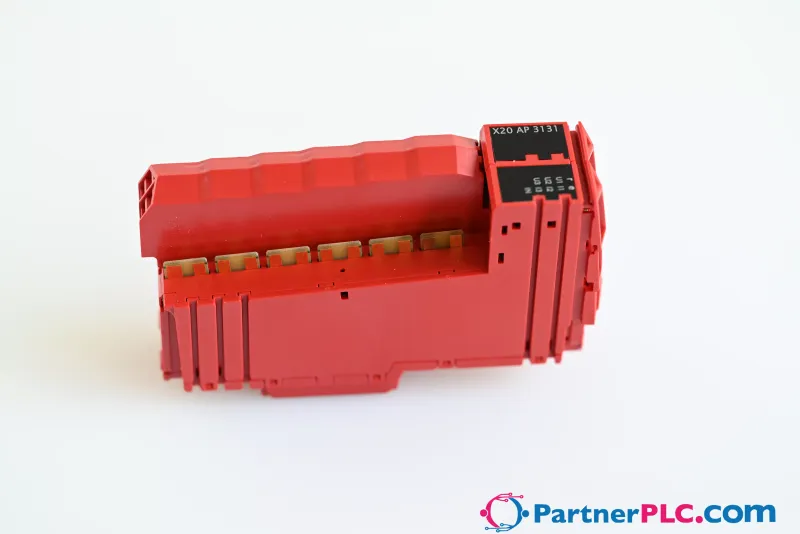

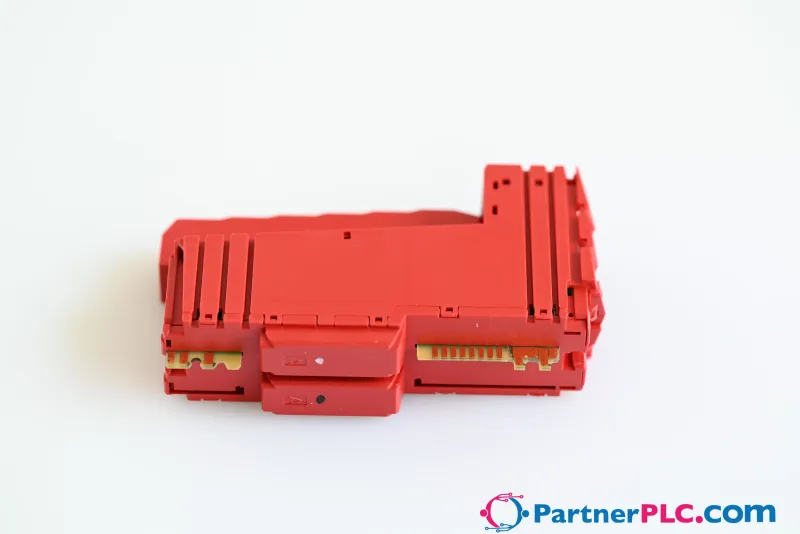

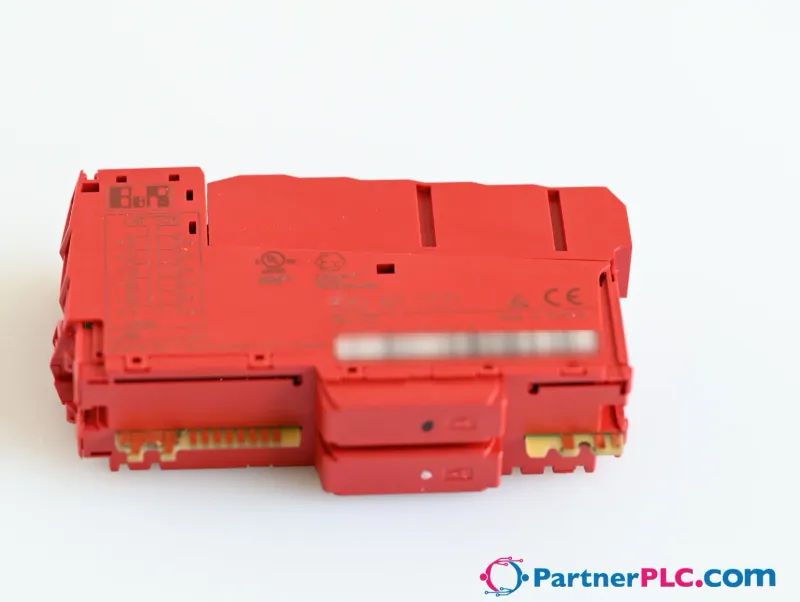

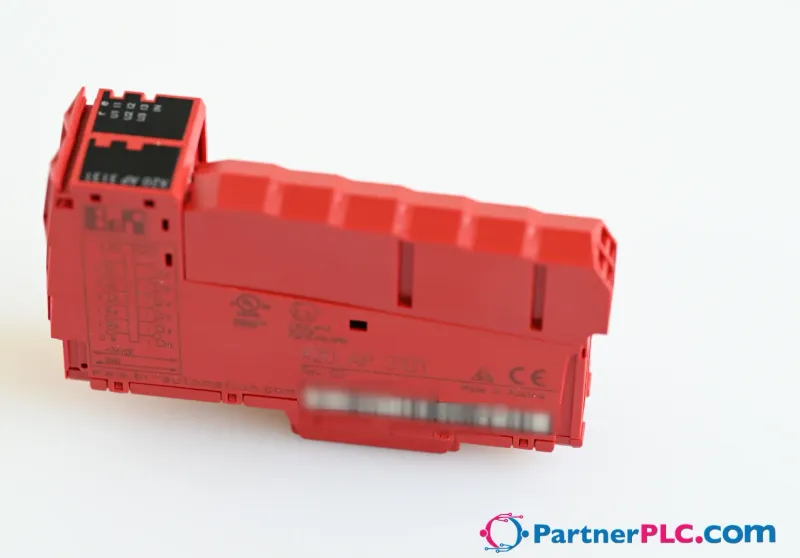

B&R X20AP3131 – Calculates RMS values from currents and voltages
Request a Quote
Quick facts
| Availability | In stock — 1 available |
| Category | Accessories |
| Warranty | 3-month |
| Weight | 0.08 kg |
| Country of origin | AT |
Shipping & availability
When can X20AP3131 be shipped?
X20AP3131 is in stock and typically ships within 1 business day via UPS, DHL or FedEx, worldwide.
Can I pick up X20AP3131 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — alongside standard UPS, DHL and FedEx shipping, express (next-day) delivery is available at checkout for in-stock items like X20AP3131.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for X20AP3131, subject to availability and destination.
• Calculates RMS values from currents and voltages
• Calculates active, reactive and apparent power
• Phasing detection
• Measures individual phases and calculates cumulative values
• Optional measurement of current through the neutral conductor
• Calculates frequency and harmonics with high precision
• NetTime timestamp: Moment when measured value groups are read
Power monitoring
These modules measure active, reactive and apparent power individually for each of the 3 phases as well as all of them collectively. The power consumption of each phase is also recorded individually and in total. In addition, the modules provide the RMS values for voltage and current on the 3 phases. When measuring the current, the value of the current through the neutral conductor can also be detected and monitored. Measurement of the mains frequency and the phase angle of the 3 phases (current and voltage) complete the power measurement data.
Energy management
The integrated functions on the modules map the immediate power requirements of the machine in detail as well as record its total power consumption. For the user, all relevant data is prepared and made available in the process image.
The ability to measure currents and voltages up to the 31st harmonic enables higher precision recording of RMS values than is generally possible. This allows the modules to easily cope with irregular sine curves and makes them well-suited to renewable energy applications. In these types of applications, for example , being able to accurately measure the frequency at a resolution of 0.01 Hz between 45 and 65 Hz is a great advantage. In general, the modules are suitable for use with 1-phase, 2-phase or 3-phase networks.
NetTime timestamp of readout moments
For many applications, not only the measured value is important, but also the exact moment when a group of measured values is read out. The module is equipped with a NetTime timestamp function for this that supplies a timestamp for the recorded position and trigger time with microsecond accuracy.
The timestamp function is based on synchronized timers. If a timestamp event occurs, the module immediately saves the current NetTime. After the respective data is transferred to the CPU, including this precise moment, the CPU can then evaluate the data using its own NetTime (or system time), if necessary.
Accessories
Required accessories (order separately)
| X20BM32 | Bus modules — Bus module for double-width 240 VAC I/O modules; The internal I/O supply is interconnected; 240 V coding for bus module, electronic module… |
| X20TB32 | Terminal blocks — Tool-free wiring with push-in technology; Simple wire release using lever; Ability to label each terminal; Plain text labeling also possibl… |
Specifications
Short description
| I/O module | 3-phase power and energy metering module for current transformers |
General information
| Diagnostics – Module run/error | Yes, using LED status indicator and software |
| Diagnostics – Inputs | Yes, using LED status indicator and software |
| Power consumption – Bus | 0.85 W (Rev. <E0); 0.50 W (Rev. =E0); 0.45 W (Rev. >E0) |
| Power consumption – Internal I/O | - |
| Insulation voltages – Inputs - Bus / I/O power supply | Tested at 5500 VDC, 1 min |
| Insulation voltages – Inputs - Ground | Tested at 5500 VDC, 1 min |
| Insulation voltages – Bus / I/O power supply - Ground | Tested at 510 VAC, 1 min |
| Certifications – CE | Yes |
| Certifications – UKCA | Yes |
| Certifications – CRA (Cyber Resilience Act) | In preparation |
| Certifications – ATEX | Zone 2, II 3G Ex nA nC IIA T5 Gc; IP20, Ta (see X20 user's manual); FTZÚ 09 ATEX 0083X |
| Certifications – UL | cULus E115267; Industrial control equipment |
| Certifications – HazLoc | cCSAus 244665; Process control equipment; for hazardous locations; Class I, Division 2, Groups ABCD, T5 |
| Certifications – DNV | Temperature: B (0 to 55°C); Humidity: B (up to 100%); Vibration: B (4 g); EMC: B (bridge and open deck) |
| Certifications – CCS | Yes |
| Certifications – LR | ENV1 |
| Certifications – KR | Yes |
| Certifications – ABS | Yes |
| Certifications – BV | EC33B ; Temperature: 5 - 55°C; Vibration: 4 g; EMC: Bridge and open deck |
| B&R ID code | 0xC9DC |
| Status indicators | I/O function per channel, operating state, module status |
| Additional module power dissipation [W] | 2 W " data-placement="top" data-html="true" data-container="body" data-content="Power dissipation of current measurement shunts"> |
Voltage inputs
| Nominal voltage U N – Between phases | Max. 480 VAC " data-placement="top" data-html="true" data-container="body" data-content="The design of the module allows 480 VAC to be applied to the terminal block."> |
| Nominal voltage U N – Phase to N | Max. 277 VAC |
| Measurable frequency – Measurement range | 45 to 65 Hz |
| Measurable frequency – Resolution | 0.01 Hz |
| Number of phases | 3 |
| Input impedance | 1.68 MΩ |
| Max. display value | 655 VAC |
| Resolution | 10 mV, with voltage connected directly |
| Rated frequency | 50 and 60 Hz |
Current inputs
| Nominal current I N – Secondary | 5 A |
| Nominal current I N – Primary | 65 A directly configurable, larger values through conversion in the application " data-placement="top" data-html="true" data-container="body" data-content="For measuring higher current values, see section "Current transformer - Pinout"."> |
| Quantity | 4 AC inputs |
| Max. overload current | 8 x I N for 0.5 s |
| Max. measuring current | 5 A |
| Resolution | 1 mA, based on the primary current " data-placement="top" data-html="true" data-container="body" data-content="For measuring higher current values, see section "Current transformer - Pinout"."> |
| Load | 20 mΩ |
Measurement accuracy " data-placement="top" data-html="true" data-container="body" data-content="Based on the current measured value.<br><strong>The actual error value may have 1 additional digit due to the digital display (e.g. 0.001 A or 0.01 V).</strong><SPACE></SPACE>">
| Apparent energy – Per phase and arithmetic total | ±1.50% (Rev. <E0); ±0.55% (Rev. ≥E0) " data-placement="top" data-html="true" data-container="body" data-content="With drift of 250 ppm/K (Rev. <A name="_GoBack"><SPAN style='font-size:10.0pt; font-family:"Arial","sans-serif";mso-fareast-font-family:"Arial Unicode MS"; mso-ansi-language:DE;mso-fareast-language:JA;mso-bidi-language:AR-SA'>< E0)</SPAN> or 125 ppm/K (Rev. </A><A name="_GoBack"><SPAN style='font-size:10.0pt; font-family:"Arial","sans-serif";mso-fareast-font-family:"Arial Unicode MS"; mso-ansi-language:DE;mso-fareast-language:JA;mso-bidi-language:AR-SA'>≥ E0)</SPAN></A>"> |
| Apparent energy – Vector sum | ±1.80% (Rev. <E0); ±0.85% (Rev. ≥E0) " data-placement="top" data-html="true" data-container="body" data-content="With drift of 250 ppm/K (Rev. <A name="_GoBack"><SPAN style='font-size:10.0pt; font-family:"Arial","sans-serif";mso-fareast-font-family:"Arial Unicode MS"; mso-ansi-language:DE;mso-fareast-language:JA;mso-bidi-language:AR-SA'>< E0)</SPAN> or 125 ppm/K (Rev. </A><A name="_GoBack"><SPAN style='font-size:10.0pt; font-family:"Arial","sans-serif";mso-fareast-font-family:"Arial Unicode MS"; mso-ansi-language:DE;mso-fareast-language:JA;mso-bidi-language:AR-SA'>≥ E0)</SPAN></A>"> |
| U RMS | ±0.65% " data-placement="top" data-html="true" data-container="body" data-content="With drift of 25 ppm/K"> |
| I RMS | ±1.65% (Rev. <E0); ±0.70% (Rev. ≥E0) " data-placement="top" data-html="true" data-container="body" data-content="With drift of 225 ppm/K (Rev. < E0) or 100 ppm/K (Rev. ≥ E0)"> |
| Effective, reactive and apparent power | ±1.80% (Rev. <E0); ±0.85% (Rev. ≥E0) " data-placement="top" data-html="true" data-container="body" data-content="With drift of 250 ppm/K (Rev. < E0) or 125 ppm/K (Rev. ≥ E0)"> |
| Frequency, power factor and phase angle | ±0.50% " data-placement="top" data-html="true" data-container="body" data-content="<SPAN style='font-size:10.0pt;font-family:"Helv","sans-serif"; mso-fareast-font-family:"Arial Unicode MS";mso-bidi-font-family:Helv; color:black;mso-ansi-language:DE;mso-fareast-language:DE;mso-bidi-language: AR-SA'>In power systems with approximately sinusoidal voltage starting at 10 VAC.</SPAN>"> |
| Active energy per phase and total " data-placement="top" data-html="true" data-container="body" data-content="At power factor cos ϕ = 1, 0.5L and 0.8C"> | ±1.40% (Rev. <E0); ±0.45% (Rev. ≥E0) " data-placement="top" data-html="true" data-container="body" data-content="With drift of 250 ppm/K (Rev. < E0) or 125 ppm/K (Rev. ≥ E0)"> |
| Active energy of fundamental frequency per phase and total " data-placement="top" data-html="true" data-container="body" data-content="At power factor cos ϕ = 1, 0.5L and 0.8C"> | ±1.50% (Rev. <E0); ±0.55% (Rev. ≥E0) " data-placement="top" data-html="true" data-container="body" data-content="With drift of 250 ppm/K (Rev. < E0) or 125 ppm/K (Rev. ≥ E0)"> |
| Active energy of harmonics per phase and total " data-placement="top" data-html="true" data-container="body" data-content="At power factor cos ϕ = 1, 0.5L and 0.8C"> | ±1.80% (Rev. <E0); ±0.85% (Rev. ≥E0) " data-placement="top" data-html="true" data-container="body" data-content="With drift of 250 ppm/K (Rev. < E0) or 125 ppm/K (Rev. ≥ E0)"> |
| Reactive energy per phase and total " data-placement="top" data-html="true" data-container="body" data-content="At reactive power factor sin ϕ = 1, 0.5L and 0.8C"> | ±1.50% (Rev. <E0); ±0.55% (Rev. ≥E0) " data-placement="top" data-html="true" data-container="body" data-content="With drift of 250 ppm/K (Rev. < E0) or 125 ppm/K (Rev. ≥ E0)"> |
Electrical properties
| Electrical isolation | Channel isolated from bus; Channel not isolated from channel |
Operating conditions
| Mounting orientation – Horizontal | Yes |
| Mounting orientation – Vertical | Yes |
| Installation elevation above sea level – 0 to 2000 m | No limitation |
| Installation elevation above sea level – >2000 m | Not permitted |
| Degree of protection per EN 60529 | IP20 |
Ambient conditions
| Temperature – Horizontal mounting orientation | -25 to 60°C |
| Temperature – Vertical mounting orientation | -25 to 50°C |
| Temperature – Derating | See section "Derating". |
| Temperature – Storage | -40 to 85°C |
| Temperature – Transport | -40 to 85°C |
| Relative humidity – Operation | 5 to 95%, non-condensing |
| Relative humidity – Storage | 5 to 95%, non-condensing |
| Relative humidity – Transport | 5 to 95%, non-condensing |
Mechanical properties
| Note | Order 1x terminal block X20TB32 separately. ; Order 1x bus module X20BM32 separately. |
| Pitch | 25 +0.2 mm |
Downloads & documentation
Official documents from B&R, downloaded directly from the manufacturer.
Data sheets & manuals
| Data sheet X20(c)AP31xx | PDF · 3 MB · 2.70 (07/30/2025) - EN |
| X20 Package leaflet ATEX/CSA | PDF · 2 MB · 1.4 (09/17/2024) |
| X20 System User´s Manual | PDF · 50 MB · 4.40 (03/10/2026) - EN |
CAD & dimension drawings
| 3D File STEP X20AP3xxx | ZIP · 866 KB · 1.00 (03/03/2015) |
