B&R

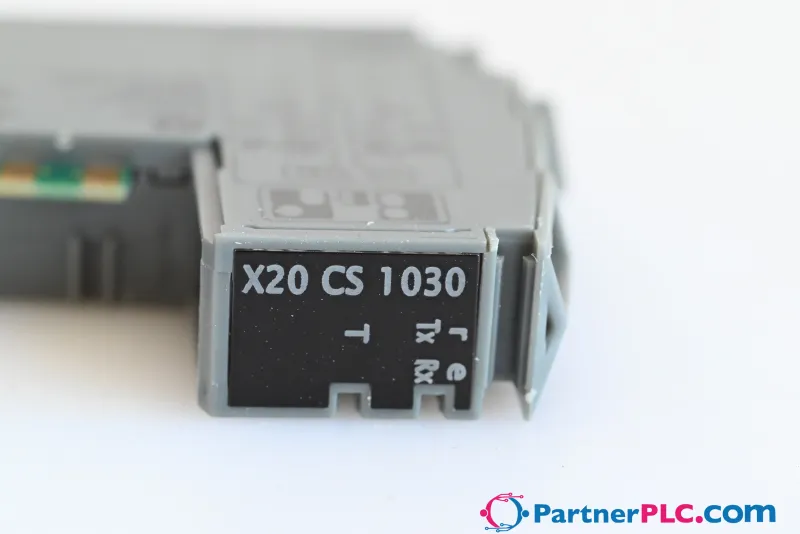

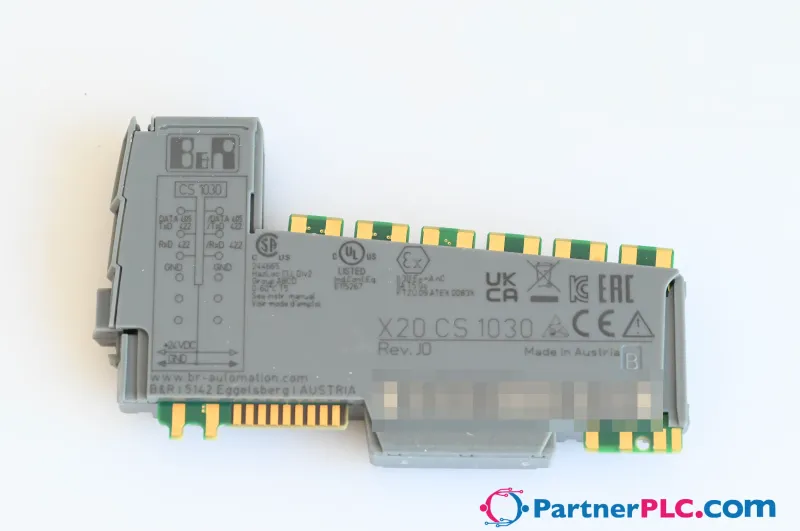

B&R X20CS1030

RS485/RS422 interface for serial

MPN: X20CS1030
Category: Accessories

€285.14excl. VAT & shipping

In stock — 1 available·Ships within 1 business day

Need a larger quantity or a formal quote?

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

What is the B&R X20CS1030?

RS485/RS422 interface for serial, remote connection of complex devices to the X20 system Integrated terminating resistor In addition to the standard I/O, complex devices often need to be connected. The X20CS communication modules are intended precisely for cases like this. As normal X20 electronics modules, they can be placed anywhere on the remote backplane.

Specifications

Short description

Communication module

1x RS485/RS422

General information

Diagnostics – Module run/error	Yes, using LED status indicator and software
Diagnostics – Data transfer	Yes, using LED status indicator
Diagnostics – Terminating resistor	Yes, using LED status indicator
Power consumption – Bus	0.01 W
Power consumption – Internal I/O	1.44 W
Certifications – CE	Yes
Certifications – UKCA	Yes
Certifications – CRA (Cyber Resilience Act)	In preparation
Certifications – ATEX	Zone 2, II 3G Ex nA nC IIA T5 Gc; IP20, Ta (see X20 user's manual); FTZÚ 09 ATEX 0083X
Certifications – UL	cULus E115267; Industrial control equipment
Certifications – HazLoc	cCSAus 244665; Process control equipment; for hazardous locations; Class I, Division 2, Groups ABCD, T5
Certifications – DNV	Temperature: B (0 to 55°C); Humidity: B (up to 100%); Vibration: B (4 g); EMC: B (bridge and open deck)
Certifications – CCS	Yes
Certifications – LR	ENV1
Certifications – KR	Yes
Certifications – ABS	Yes
Certifications – BV	EC33B ; Temperature: 5 - 55°C; Vibration: 4 g; EMC: Bridge and open deck
Certifications – KC	Yes
B&R ID code	0x1FD0
Status indicators	Data transfer, terminating resistor, operating state, module status
Additional power dissipation caused by actuators (resistive) [W]	-

Interfaces

Interface IF1 – Signal	RS485/RS422
Interface IF1 – Variant	Connection made using 12-pin terminal block X20TB12
Interface IF1 – Number of stations	RS485: Maximum 32 stations; RS422: Maximum 10 stations (receivers)
Interface IF1 – Max. distance	1200 m
Interface IF1 – Transfer rate	Max. 115.2 kbit/s
Interface IF1 – FIFO buffer	1 kB
Interface IF1 – Terminating resistor	Integrated in module
Interface IF1 – Controller	UART type 16C550 compatible

Electrical properties

Electrical isolation

RS485/RS422 (IF1) isolated from bus and I/O power supply

Operating conditions

Mounting orientation – Horizontal	Yes
Mounting orientation – Vertical	Yes
Installation elevation above sea level – 0 to 2000 m	No limitation
Installation elevation above sea level – >2000 m	Reduction of ambient temperature by 0.5°C per 100 m
Degree of protection per EN 60529	IP20

Ambient conditions

Temperature – Horizontal mounting orientation	-25 to 60°C
Temperature – Vertical mounting orientation	-25 to 50°C
Temperature – Derating	See section "Derating".
Temperature – Storage	-40 to 85°C
Temperature – Transport	-40 to 85°C
Relative humidity – Operation	5 to 95%, non-condensing
Relative humidity – Storage	5 to 95%, non-condensing
Relative humidity – Transport	5 to 95%, non-condensing

Mechanical properties

Note	Order 1x terminal block X20TB06 or X20TB12 separately. ; Order 1x bus module X20BM11 separately.
Pitch	12.5 +0.2 mm

Accessories

Required accessories (order separately)

X20BM15	Bus modules — The bus module is the base for all X20 24 VDC I/O modules; The internal I/O supply is interconnected; Manual node number assignment; Indepe…
X20BM11	Bus modules — Bus module for 24 VDC I/O modules; The internal I/O power supply is connected through. The bus module is the base for all 24 VDC I/O module…
X20TB12	Terminal blocks — Tool-free wiring with push-in technology; Simple wire release using lever; Ability to label each terminal; Plain text labeling also possibl…
X20TB06	Terminal blocks — Tool-free wiring with push-in technology; Simple wire release using lever; Ability to label each terminal; Plain text labeling also possibl…

Downloads & documentation

Official documents from B&R, downloaded directly from the manufacturer.

Data sheets & manuals

CAD & dimension drawings

Certificates (15)
