B&RNew

B&R X20AI2622

2 analog inputs Either current or voltage signal possible 13-bit digital converter resolution The module is...

MPN: X20AI2622
Category: Analog I/O Modules

€189.74excl. VAT & shipping

In stock — 8 available·Ships within 1 business day

Need a larger quantity or a formal quote?

Request a Quote

12-month warranty
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

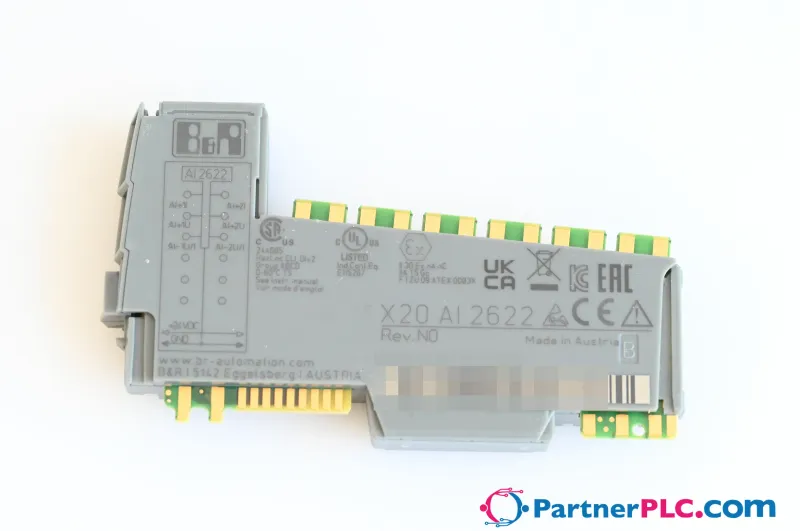

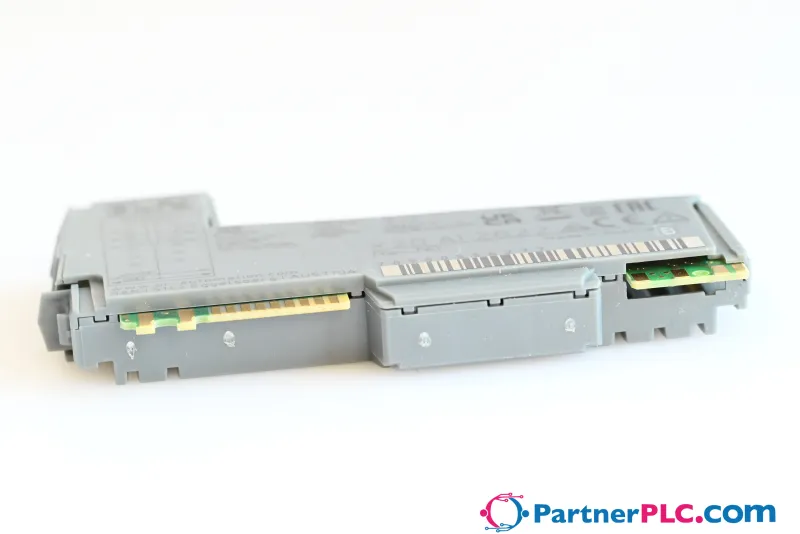

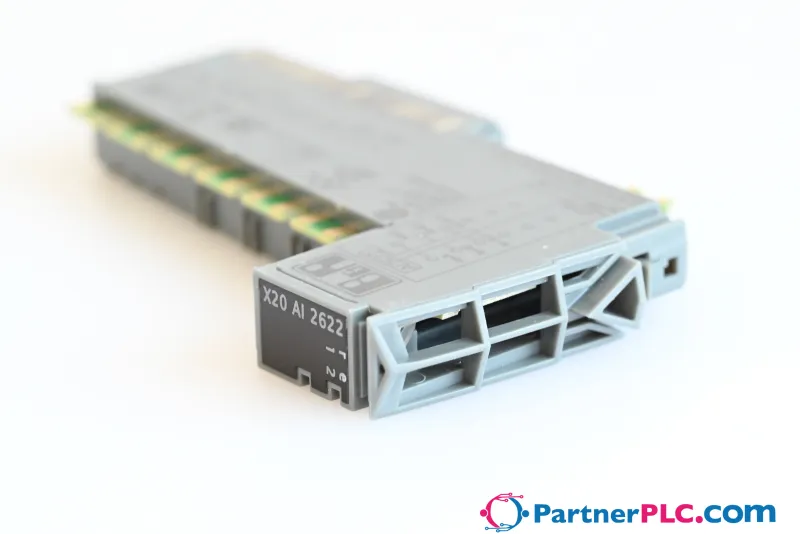

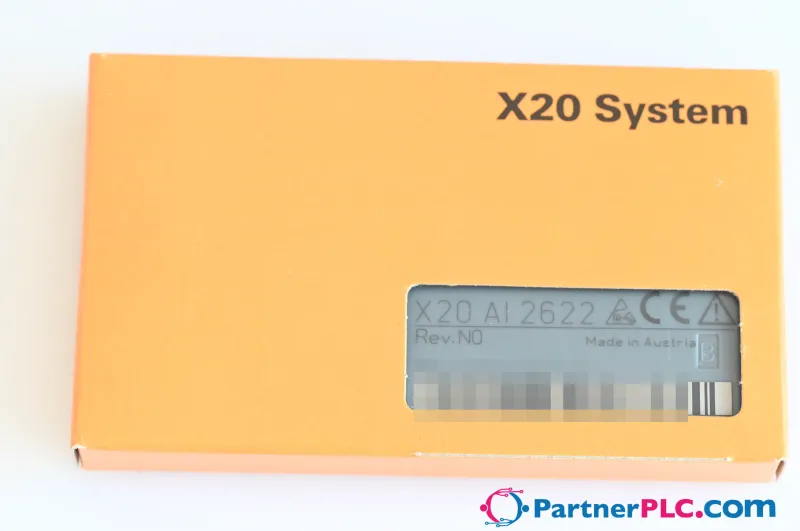

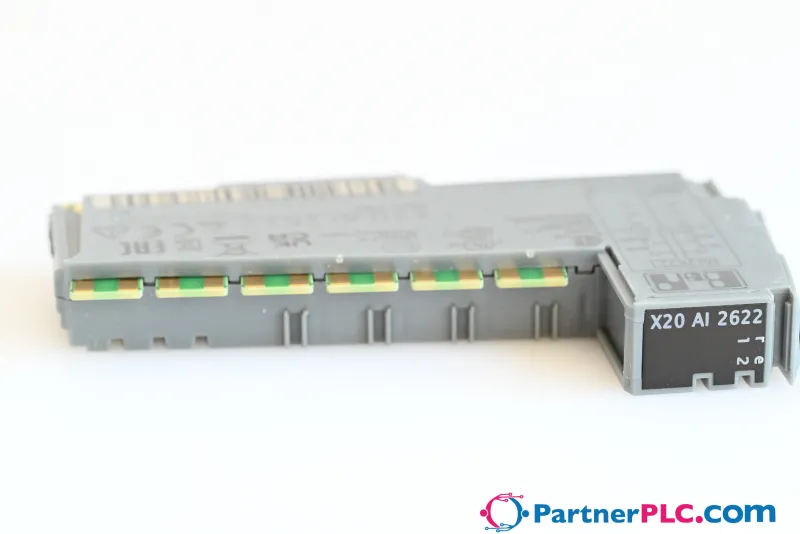

What is the B&R X20AI2622?

2 analog inputs Either current or voltage signal possible 13-bit digital converter resolution The module is equipped with 2 inputs with 13-bit (including sign) digital converter resolution. It is possible to select between the current and voltage signal using different terminals. This module is designed for X20 6-pin terminal blocks. If needed (e.g. for logistical reasons), the 12-pin terminal block can also be used.

Specifications

Short description

I/O module

2 analog inputs ±10 V or 0 to 20 mA / 4 to 20 mA

General information

Diagnostics – Module run/error	Yes, using LED status indicator and software
Diagnostics – Inputs	Yes, using LED status indicator and software
Diagnostics – Channel type	Yes, using software
Power consumption – Bus	0.01 W
Power consumption – Internal I/O	0.8 W (note: To reduce power dissipation, B&R recommends bridging unused inputs on the terminals or configuring them as current signals.)
Certifications – CE	Yes
Certifications – UKCA	Yes
Certifications – CRA (Cyber Resilience Act)	In preparation
Certifications – ATEX	Zone 2, II 3G Ex nA nC IIA T5 Gc; IP20, Ta (see X20 user's manual); FTZÚ 09 ATEX 0083X
Certifications – UL	cULus E115267; Industrial control equipment
Certifications – HazLoc	cCSAus 244665; Process control equipment; for hazardous locations; Class I, Division 2, Groups ABCD, T5
Certifications – DNV	Temperature: B (0 to 55°C); Humidity: B (up to 100%); Vibration: B (4 g); EMC: B (bridge and open deck)
Certifications – CCS	Yes
Certifications – LR	ENV1
Certifications – KR	Yes
Certifications – ABS	Yes
Certifications – BV	EC33B ; Temperature: 5 - 55°C; Vibration: 4 g; EMC: Bridge and open deck
Certifications – KC	Yes
B&R ID code	0x1B9E
Status indicators	I/O function per channel, operating state, module status
Additional power dissipation caused by actuators (resistive) [W]	-

Analog inputs

Digital converter resolution – Voltage	±12-bit
Digital converter resolution – Current	12-bit
Output format – Data type	INT
Output format – Voltage	INT 0x8001 - 0x7FFF / 1 LSB = 0x0008 = 2.441 mV
Output format – Current	INT 0x0000 - 0x7FFF / 1 LSB = 0x0008 = 4.883 µA
Input impedance in signal range – Voltage	20 MΩ
Input impedance in signal range – Current	-
Load – Voltage	-
Load – Current	<400 Ω
Permissible input signal – Voltage	Max. ±30 V
Permissible input signal – Current	Max. ±50 mA
Max. error – Gain	0.08% (note: Based on the current measured value.)
Max. error – Offset	0.015% (note: Based on the 20 V measurement range.)
Max. error – Gain	0 to 20 mA = 0.08% / 4 to 20 mA = 0.1% (note: Based on the current measured value.)
Max. error – Offset	0 to 20 mA = 0.03% / 4 to 20 mA = 0.16% (note: Based on the 20 mA measurement range.)
Max. gain drift – Voltage	0.006%/°C (note: Based on the current measured value.)
Max. gain drift – Current	0 to 20 mA = 0.009 %/°C ; 4 to 20 mA = 0.0113 %/°C (note: Based on the current measured value.)
Max. offset drift – Voltage	0.002%/°C (note: Based on the 20 V measurement range.)
Max. offset drift – Current	0 to 20 mA = 0.004 %/°C ; 4 to 20 mA = 0.005 %/°C (note: Based on the 20 mA measurement range.)
Common-mode rejection – DC	70 dB
Common-mode rejection – 50 Hz	70 dB
Nonlinearity – Voltage	<0.025% (note: Based on the 20 V measurement range.)
Nonlinearity – Current	<0.05% (note: Based on the 20 mA measurement range.)
Input	±10 V or 0 to 20 mA / 4 to 20 mA, via different terminal connections
Input type	Differential input
Conversion time	300 μs for all inputs
Input protection	Protection against wiring with supply voltage
Output of digital value during overload	Configurable
Conversion procedure	SAR
Input filter	Third-order low-pass filter / Cutoff frequency 1 kHz
Common-mode range	±12 V
Crosstalk between channels	<-70 dB
Insulation voltage between channel and bus	500 V eff

Electrical properties

Electrical isolation

Channel isolated from bus; Channel not isolated from channel

Operating conditions

Mounting orientation – Horizontal	Yes
Mounting orientation – Vertical	Yes
Installation elevation above sea level – 0 to 2000 m	No limitation
Installation elevation above sea level – >2000 m	Reduction of ambient temperature by 0.5°C per 100 m
Degree of protection per EN 60529	IP20

Ambient conditions

Temperature – Horizontal mounting orientation	-25 to 60°C
Temperature – Vertical mounting orientation	-25 to 50°C
Temperature – Derating	-
Temperature – Storage	-40 to 85°C
Temperature – Transport	-40 to 85°C
Relative humidity – Operation	5 to 95%, non-condensing
Relative humidity – Storage	5 to 95%, non-condensing
Relative humidity – Transport	5 to 95%, non-condensing

Mechanical properties

Note	Order 1x terminal block X20TB06 or X20TB12 separately. ; Order 1x bus module X20BM11 separately.
Pitch	12.5 +0.2 mm

Accessories

Required accessories (order separately)

X20BM15	Bus modules — The bus module is the base for all X20 24 VDC I/O modules; The internal I/O supply is interconnected; Manual node number assignment; Indepe…
X20BM11	Bus modules — Bus module for 24 VDC I/O modules; The internal I/O power supply is connected through. The bus module is the base for all 24 VDC I/O module…
X20TB12	Terminal blocks — Tool-free wiring with push-in technology; Simple wire release using lever; Ability to label each terminal; Plain text labeling also possibl…
X20TB06	Terminal blocks — Tool-free wiring with push-in technology; Simple wire release using lever; Ability to label each terminal; Plain text labeling also possibl…
