B&R

B&R X20DO2649

2 digital outputs Relay module for 240 VAC / 30 VDC 2 change over contacts Single-channel isolated outputs…

MPN: X20DO2649
Category: Digital I/O Modules

€402.80excl. VAT & shipping

In stock — 2 available·Ships within 1 business day

Need a larger quantity or a formal quote?

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

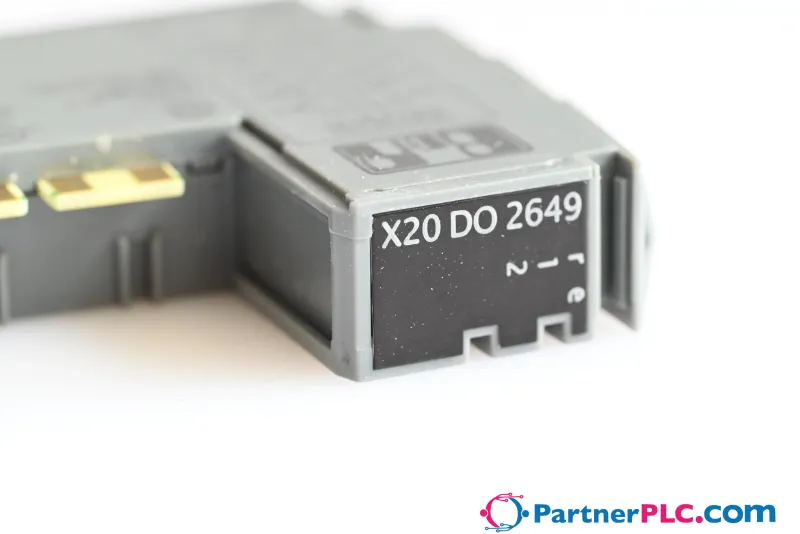

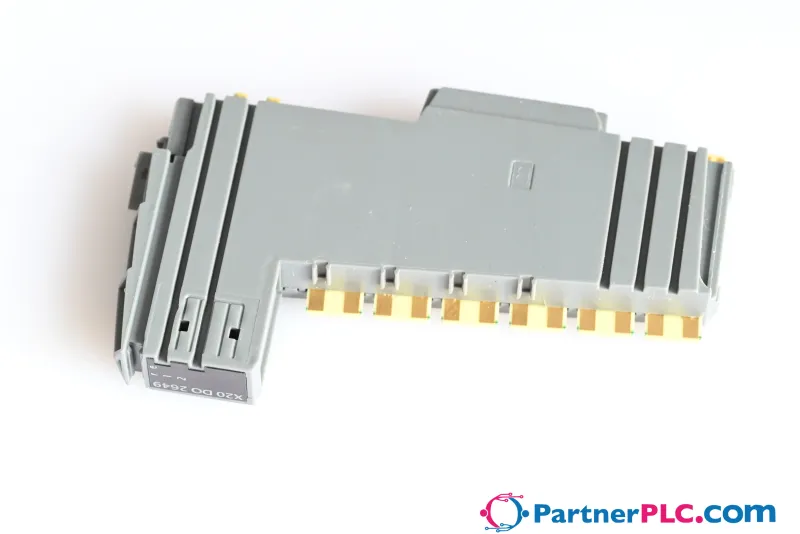

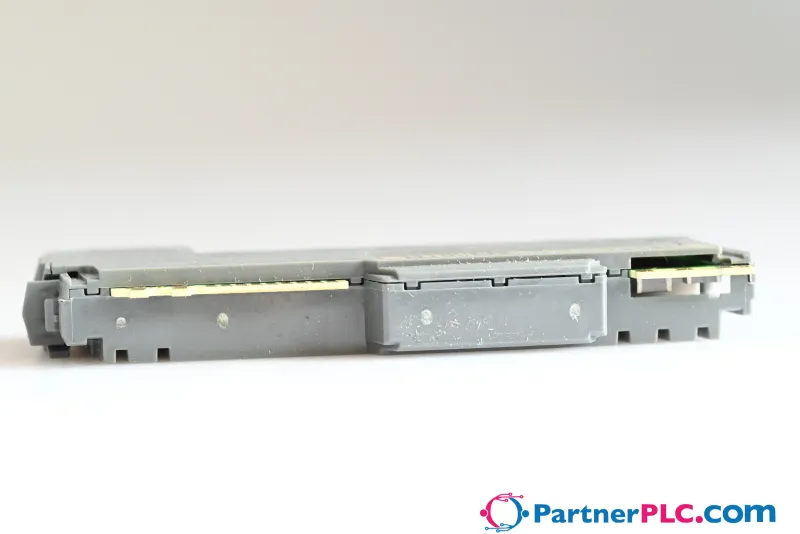

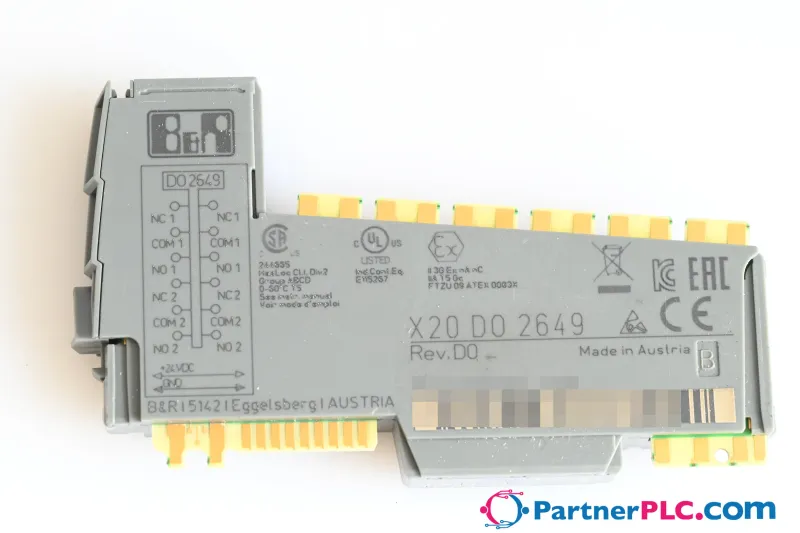

What is the B&R X20DO2649?

2 digital outputs Relay module for 240 VAC / 30 VDC 2 change over contacts Single-channel isolated outputs The module has 2 relay outputs.

Specifications

Short description

I/O module

2 digital outputs 30 VDC / 240 VAC, outputs single-channel isolated

General information

Diagnostics – Module run/error	Yes, using LED status indicator and software
Diagnostics – Outputs	Yes, using LED status indicator
Power consumption – Bus	0.45 W
Power consumption – Internal I/O	-
Certifications – CE	Yes
Certifications – UKCA	Yes
Certifications – CRA (Cyber Resilience Act)	In preparation
Certifications – ATEX	Zone 2, II 3G Ex nA nC IIA T5 Gc; IP20, Ta (see X20 user's manual); FTZÚ 09 ATEX 0083X
Certifications – UL	cULus E115267; Industrial control equipment
Certifications – HazLoc	cCSAus 244665; Process control equipment; for hazardous locations; Class I, Division 2, Groups ABCD, T5
Certifications – DNV	Temperature: B (0 to 55°C); Humidity: B (up to 100%); Vibration: B (4 g); EMC: B (bridge and open deck)
Certifications – CCS	Yes
Certifications – LR	ENV1
Certifications – KR	Yes
Certifications – ABS	Yes
Certifications – BV	EC33B ; Temperature: 5 - 55°C; Vibration: 4 g; EMC: Bridge and open deck
Certifications – KC	Yes
B&R ID code	0x20DA
Status indicators	I/O function per channel, operating state, module status
Additional power dissipation caused by actuators (resistive) [W]Mechanical and electrical configuration" in the X20 system user's manual.">	+2.5 (note: Number of outputs x Contact resistance x Nominal output current 2 . For a calculation example, see section)

Digital outputs

Switching delay – 0 → 1	≤10 ms
Switching delay – 1 → 0	≤10 ms
Insulation voltages – Channel - Bus	Tested at 4000 VAC
Insulation voltages – Channel - Channel	Tested at 1000 VAC
Service life – ElectricalElectrical service life".">	Min. 60 x 10³ ops. (NC) at 6 A ; Min. 30 x 30³ ops. (NO) at 6 A (note: With resistive load. See also section)
Service life – Mechanical	Min. 10 x 10 6 ops.
Switching capacity – Minimum	10 mA / 5 VDC
Switching capacity – Maximum	180 W / 1500 VA
Protective circuit – AC	RC combination or VDR
Protective circuit – DC	Inverse diode, RC combination or VDR
Protective circuit – Internal	None
Variant	Relay / Changeover contact ; Channels are single-channel isolated.
Nominal voltage	30 VDC / 240 VAC
Max. voltage	264 VAC
Switching voltage	Max. 110 VDC / 264 VAC
Rated frequency	DC / 45 to 63 Hz
Nominal output current	5 A at 30 VDC / 5 A at 240 VAC
Total nominal current	10 A at 30 VDC / 10 A at 240 VAC
Actuator power supply	External
Inrush current	Max. 6 A (per channel)
Contact resistance	50 mΩ

Electrical properties

Electrical isolation

Channel isolated from channel, bus and I/O power supply

Operating conditions

Mounting orientation – Horizontal	Yes
Mounting orientation – Vertical	Yes
Installation elevation above sea level – 0 to 2000 m	No limitation
Installation elevation above sea level – >2000 m	Not permitted
Degree of protection per EN 60529	IP20

Ambient conditions

Temperature – Horizontal mounting orientation	-25 to 60°C
Temperature – Vertical mounting orientation	-25 to 50°C
Temperature – Derating	See section "Derating".
Temperature – Storage	-40 to 85°C
Temperature – Transport	-40 to 85°C
Relative humidity – Operation	5 to 95%, non-condensing
Relative humidity – Storage	5 to 95%, non-condensing
Relative humidity – Transport	5 to 95%, non-condensing

Mechanical properties

Note	Order 1x terminal block X20TB12 separately.; Order 1x bus module X20BM11 separately.
Pitch	12.5 +0.2 mm

Accessories

Required accessories (order separately)

X20BM15	Bus modules — The bus module is the base for all X20 24 VDC I/O modules; The internal I/O supply is interconnected; Manual node number assignment; Indepe…
X20BM11	Bus modules — Bus module for 24 VDC I/O modules; The internal I/O power supply is connected through. The bus module is the base for all 24 VDC I/O module…
X20TB12	Terminal blocks — Tool-free wiring with push-in technology; Simple wire release using lever; Ability to label each terminal; Plain text labeling also possibl…
