Planetary gearboxes with output flange 8GF Parts





Compare Planetary gearboxes with output flange 8GF
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Gear ratio i | Nominal output torque T 2N [Nm] | Max. output torque T 2max [Nm] | Idle torque [Nm] at 20°C and 3000 rpm | Max. average drive speed n 1N100% [rpm] at 100% T 2N and S1 |
|---|---|---|---|---|---|
| 8GF60-200hh040klmm | 40 | 1800 | 2880 | 2.5 | 1650 |
| 8GF60-200hh050klmm | 50 | 1525 | 2440 | 2 | 2100 |
| 8GF60-200hh064klmm | 64 | 1000 | 1600 | 2.15 | 2650 |

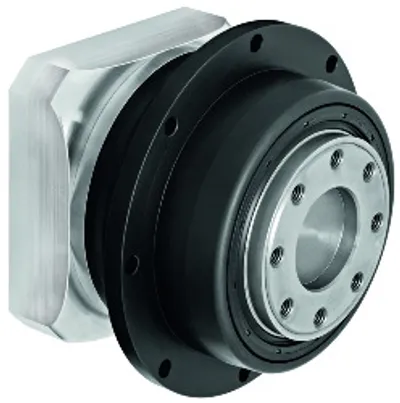

| 8GF60-200hh100klmm | 100 | 630 | 1008 | 1.6 | 3000 |
| 8GF60-200hh007klmm | 7 | 1300 | 2080 | 9.45 | 650 |
Common to all listed parts
| Max. drive speed n 1max [rpm] | 6000 |
| Reduced backlash J t [arcmin] less than | 1 |
| Tilt tension C 2K [Nm/arcmin] | 2200 |
| Max. breakdown torque M 2Kmax [Nm] | 4928 |
| Max. radial force Fr max [N] for 30,000 h | 29500 |
| Max. radial force Fr max [N] for 20,000 h | 33000 |
| Max. axial force Fa max [N] for 30,000 h | 13500 |
| Max. axial force Fa max [N] for 20,000 h | 15000 |
