Data Connectors Parts

Showing 1–24 of 274 parts
Pepperl Fuchs V1S-TR-B24 – Terminal resistor
Pepperl Fuchs
V1S-TR-B24

Terminal resistor

Compare Data Connectors

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPNOrder code (Pepperl+Fuchs part number)Connector 2: CodingOperating voltageLengthMass
V1SD-WX-GN4M-PUR-E1S-V1D-WX70153628D-codedmax. 250 V AC/DC UB4 m L—
V1D-G-GN4M-PUR-E1S-V1D-G70212362D-codedmax. 250 V AC/DC UB4 m L130 g
V19S-G-GN5M-PUR-E2S-V45-G70204769EtherNet/IPmax. 30 V AC/DC UB5 m L—
V1SD-G-GN1,5M-PUR-E1S-V1D-G70159485D-codedmax. 250 V AC/DC UB1.5 m L110 g
V19S-G-GN3M-PUR-E2S-V45-G70204767EtherNet/IPmax. 30 V AC/DC UB3 m L—
V1SD-G-GN65M-PUR-E1S-V45-G70202351EtherNet/IP / PROFINETmax. 48 V AC / 60 V DC UB65 m L3560 g
V19SX-G-GN10M-PUR-E2S-V45-G70117754EtherNet/IPmax. 50 V AC / 60 V DC UB10 m L444.8 g
V1SD-G-GN0,5M-PUR-E1S-V1D-G70198079D-codedmax. 250 V AC/DC UB0.5 m L—
V1SD-G-GN0,3M-PUR-E1S-V1D-G70199253D-codedmax. 250 V AC/DC UB0.3 m L—
V1D-G-GN2M-PUR-E1S-V1D-G70197831D-codedmax. 250 V AC/DC UB2 m L—
V1D-G-GN1M-PUR-E2S-V1D-W70192647D-codedmax. 250 V AC/DC UB1 m L—
V1D-G-GN1,5M-PUR-E2S-V1D-W70167994D-codedmax. 250 V AC/DC UB1.5 m L74 g
V1SD-W-100M-PUR-ABG-V1SD-W70101614D-codedmax. 32 V AC / DC SELV UB100 m L4705 g

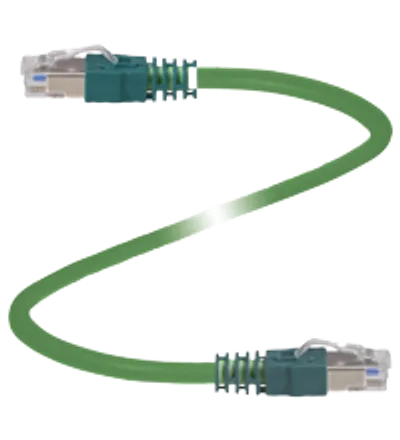

V45-G-C5-GN0,8M-PUR-E1S-V45-G70186774PROFINETmax. 48 V AC / 60 V DC UB0.8 m L56 g
V45-G-C5-GN1,8M-PUR-E1S-V45-G70186772PROFINETmax. 48 V AC / 60 V DC UB1.8 m L110 g
V1SD-G-GN18M-PUR-E1S-V1D-G70185583D-codedmax. 250 V AC/DC UB18 m L970 g

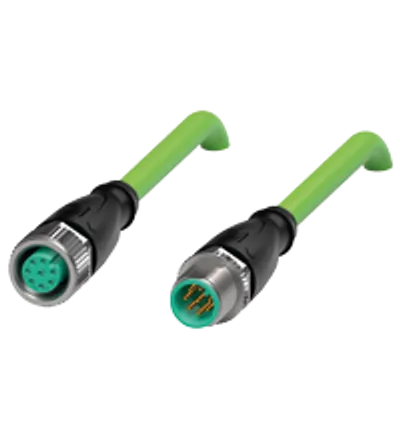

V19-G-GN1M-PUR-E2S-V19-G70168614A-codedmax. 30 V AC/DC UB1 m L—
V1D-G-GN2,5M-PUR-E1S-V1D-G70183260D-codedmax. 250 V AC/DC UB2.5 m L150 g
V1SD-G-GN0,3M-PUR-E1S-V45-G70183229EtherNet/IP / PROFINETmax. 48 V AC / 60 V DC UB0.3 m L41 g

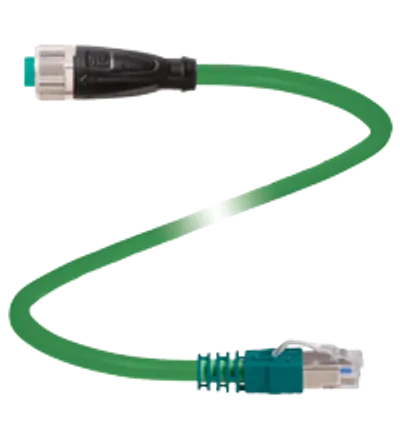

V1D-G-GN0,5M-PUR-E1S-V45-G70178589EtherNet/IP / PROFINETmax. 48 V AC / 60 V DC UB0.5 m L—
V1S-TR-B2470178400—max. 30 V DC UB—8 g
V19SX-G-GN35M-PUR-E2S-V45-G70117759EtherNet/IPmax. 50 V AC / 60 V DC UB35 m L1455 g
V19SX-G-GN3M-PUR-E2S-V19X-G70117736X-codedmax. 50 V AC / 60 V DC UB3 m L169.8 g
V19SX-G-GN15M-PUR-E2S-V45-G70117755EtherNet/IPmax. 50 V AC / 60 V DC UB15 m L635 g

Common to all listed parts

Degree of protectionEN 60529
