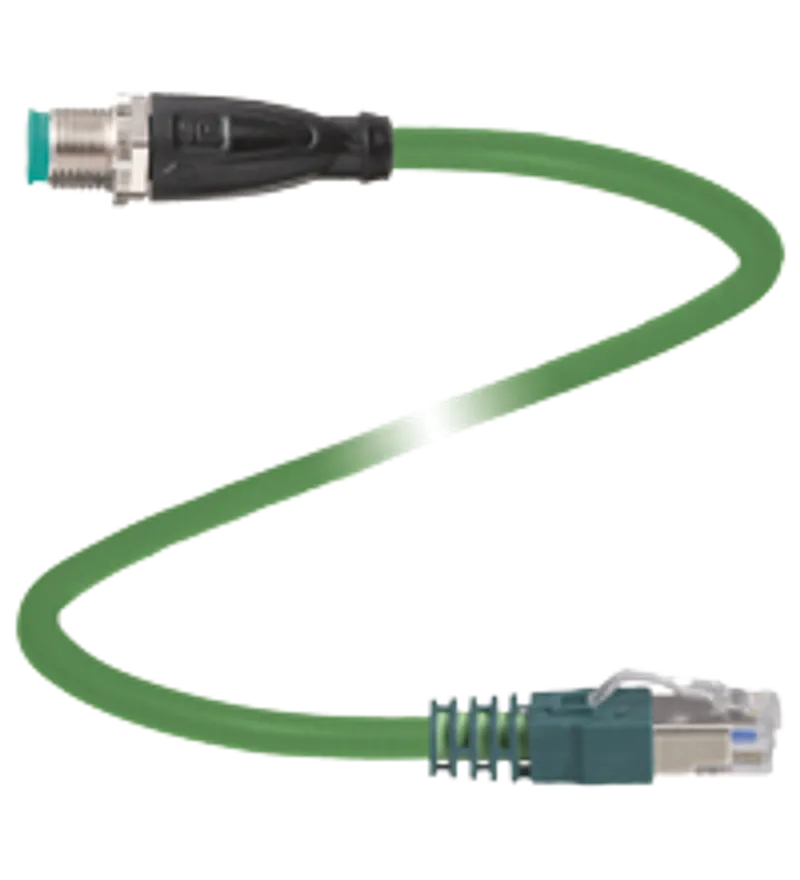

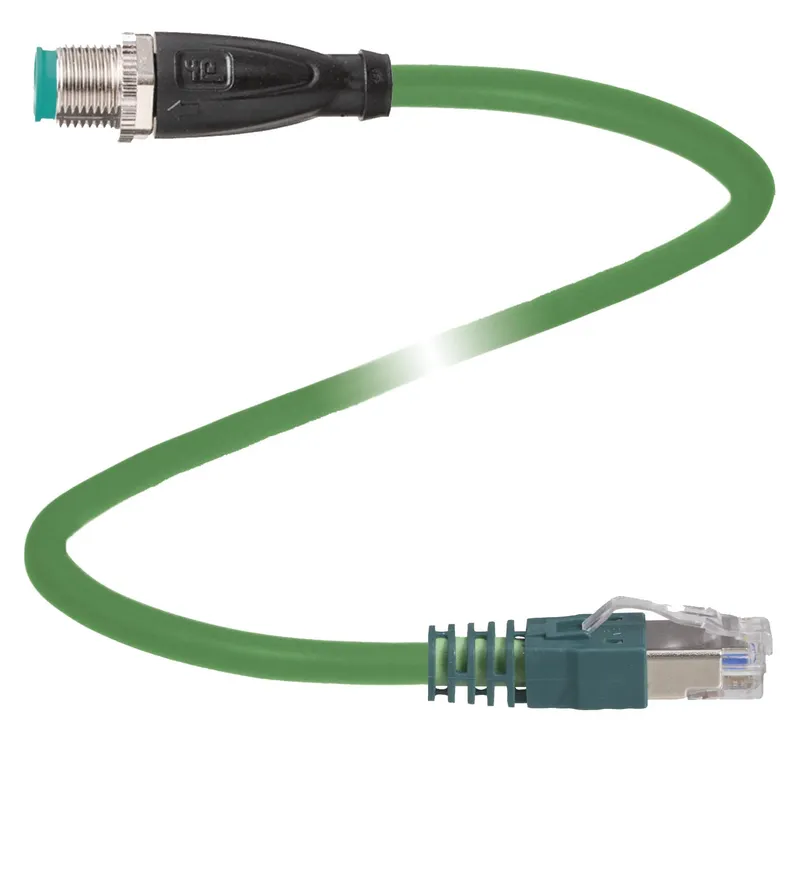

Pepperl Fuchs V19S-G-GN3M-PUR-E2S-V45-G – Connection cable, Ethernet
MPN: V19S-G-GN3M-PUR-E2S-V45-G · Brand: Pepperl Fuchs
Price on request
Request a Quote
12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
Quick facts
| Availability | Confirmed on request |
| Category | Data Connectors |
| Lifecycle | Active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can V19S-G-GN3M-PUR-E2S-V45-G be shipped?
V19S-G-GN3M-PUR-E2S-V45-G is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up V19S-G-GN3M-PUR-E2S-V45-G in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for V19S-G-GN3M-PUR-E2S-V45-G and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for V19S-G-GN3M-PUR-E2S-V45-G, subject to availability and destination.
• Hard-wearing PUR cable
• Industrial Ethernet
• Degree of protection IP20
• Halogen-free
• Specific design protects against loosening and inaccurate installation
• Immunity to vibration, with mechanical latching
Ethernet bus cable M12 plug straight A-coded to RJ45 plug straight Ethernet-coded, 8-pin, PUR cable green, Cat5, pairs shielded and overall shield
Specifications
General specifications
| Order code (Pepperl+Fuchs part number) | 70204767 |
| Connector 1: Connection | plug |
| Connector 1: Construction type | M12 |
| Connector 1: Style | straight |
| Connector 1: Locking | screw connection |
| Connector 1: Number of pins | 8 |
| Connector 1: Coding | A-coded |
| Connector 2: Connection | plug |
| Connector 2: Construction type | RJ45 |
| Connector 2: Style | straight |
| Connector 2: Locking | snap locking |
| Connector 2: Number of pins | 8 |
| Connector 2: Coding | EtherNet/IP |
| Lifecycle | Active (current Pepperl+Fuchs product) |
Electrical specifications
| Operating voltage | max. 30 V AC/DC UB |
| Operating current | max. 1 A IB |
Conformity
| Degree of protection | EN 60529 |
| Fieldbus standard | IEEE 802.3an 10GBASE-T |
| Plug connection | connector M12 x 1 : IEC 61076-2-101 connector RJ45 : IEC 60603-7 |
| Component category | CAT5 (IEC 11801) , CAT5e (IEC 61156-6) |
| Flammability | IEC 60332-1-2 , CMX |
| Halogen-free | IEC 60754-2 |
Ambient conditions
| Ambient temperature: Connector 1 | -40 ... 90 °C (-40 ... 194 °F) |
| Ambient temperature: Connector 2 | -25 ... 60 °C (-13 ... 140 °F) |
| Ambient temperature: Cable, fixed installation | -40 ... 85 °C (-40 ... 185 °F) |
| Ambient temperature: Cable, flexing | -10 ... 60 °C (14 ... 140 °F) |
| Pollution degree | 3 |

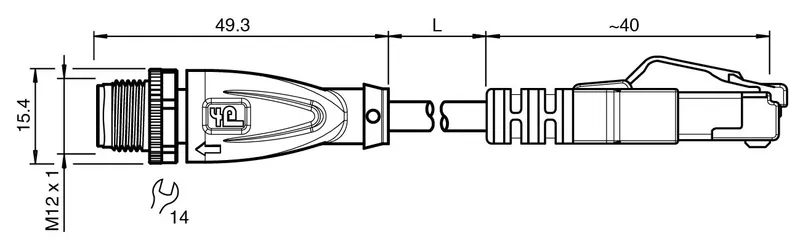

Mechanical specifications
| Connector 1: Tightening torque | 0.6 Nm |
| Connector 1: Loosening protection | integrated |
| Connector 1: Tool installation | straight knurling and hexagon nut SW = 14 mm |
| Connector 1: Mating cycles | min. 100 |
| Connector 1: Shielding | shield connected to screw connection |
| Connector 1: Degree of protection | IP66 / IP68 / IP69 |
| Connector 2: Loosening protection | integrated |
| Connector 2: Mating cycles | min. 100 |
| Connector 2: Shielding | shield connected to connector |
| Connector 2: Degree of protection | IP20 |
| Cable | according to IEC/EN 60228 (DIN VDE 0295) class 5 |
| Sheath diameter | 6.2 mm |
| Bending radius | max. 50 mm movable installationmax. 25 mm fixed installation |
| Sheath color | green (similar to RAL 6018) |
| Number of cores | 8 |
| Core cross section | 0.14 mm2 / 26 AWG |

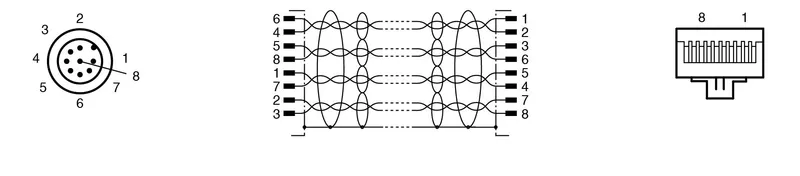

| Cores color | Core 1-5: white/blue Core 2-7: white/brown Core 3-8: brown Core 4-2: orange Core 5-3: white/green Core 6-1: white/orange Core 7-4: blue Core 8-6: green |
| Core construction | 7 x 0.404 mm ∅ twisted pairs , twisted pair shield |
| Shield | tinned copper braiding, 60 % coverage twisted pair shield : aluminum-lined polyester foil |
| Length | 3 m L |
| Cable code | Li 02YSC 11Y 4 x 2 x 0,14 (AWG26/7) |
Material
| Halogen-free | yes |
| Connector 1: Screw connection | Zinc diecast, nickel-plated |
| Connector 1: Body | TPU, black |
| Connector 1: Contact surface | gold plated (Au) |
| Connector 1: Flammability | V-2 |
| Connector 2: Body | PA, green |
| Connector 2: Flammability | V-0 |
| Cable: Sheathing | PUR |
| Cable: Cores | bare copper (Cu) |
| Cable: Core insulation | PE |
| Cable: UV resistance | yes |
| Cable: Oil resistance | yes |
| Cable: Flammability | CMX |
General information
| Cable marking sleeve | 2x PUR transparent , fixed to cable |
Downloads & documentation
Official documents from Pepperl Fuchs, downloaded directly from the manufacturer.
Data sheets & manuals
| Datasheet V19S-G-GN3M-PUR-E2S-V45-G |
CAD & dimension drawings
| 3-D model (STEP) V45-G-C5-GN20M-PUR-E1S-V45-G | STP · 1.9 MB |
| 3-D model (STEP) V19S-G-10M-PUR-ABG | STP · 4.1 MB |
12-month warrantyon all new stock
3-month warrantyon used & refurbished parts
30-day returnsno restocking fee on unused parts
Global shippingFast, tracked delivery worldwide
More Pepperl Fuchs parts
Available on requestCable connector V19S-G-BK5M-PUR-UMPN: V19S-G-BK5M-PUR-U · Pepperl Fuchs
Price on request
Request a quote

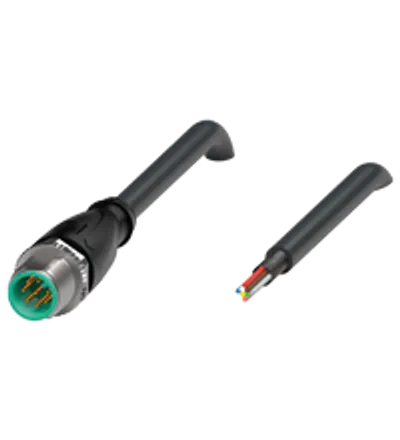

Available on requestCable connector, shielded V19S-G-BK5M-PUR-U/ABGMPN: V19S-G-BK5M-PUR-U/ABG · Pepperl Fuchs
Price on request
Request a quoteAvailable on requestCable connector, shielded V19S-G-BK7M-PUR-U/ABGMPN: V19S-G-BK7M-PUR-U/ABG · Pepperl Fuchs
Price on request
Request a quote

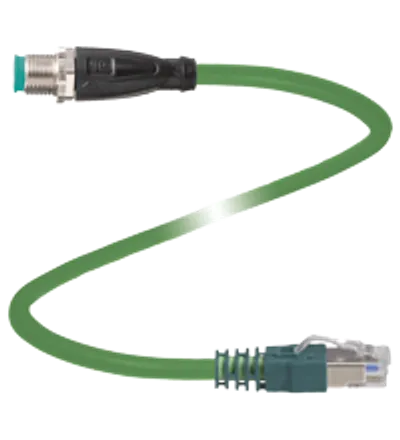

Available on requestConnection cable, Ethernet V19S-G-GN1M-PUR-E2S-V45-GMPN: V19S-G-GN1M-PUR-E2S-V45-G · Pepperl Fuchs
Price on request
Request a quote

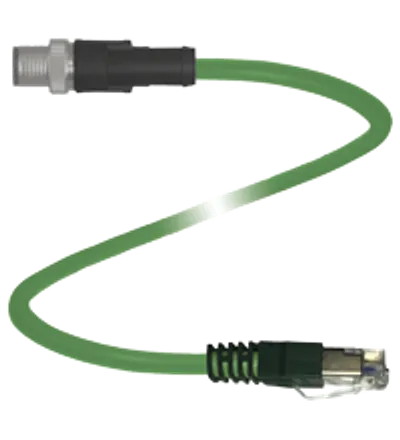

Available on requestConnection cable, Ethernet V19S-G-GN5M-PUR-ABG-V45-GMPN: V19S-G-GN5M-PUR-ABG-V45-G · Pepperl Fuchs
Price on request
Request a quoteAvailable on requestConnection cable, Ethernet V19S-G-GN5M-PUR-E2S-V45-GMPN: V19S-G-GN5M-PUR-E2S-V45-G · Pepperl Fuchs
Price on request
Request a quote

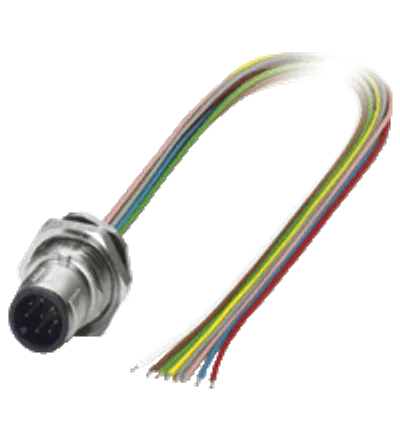

Available on requestReceptacles V19S-M16-500MPN: V19S-M16-500 · Pepperl Fuchs
