Pepperl Fuchs V1SD-G-GN1,5M-PUR-E1S-V1D-G – Connection cable, Ethernet
MPN: V1SD-G-GN1,5M-PUR-E1S-V1D-G · Brand: Pepperl Fuchs
Price on request
Request a Quote
12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
Quick facts
| Availability | Confirmed on request |
| Category | Data Connectors |
| Lifecycle | Active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can V1SD-G-GN1,5M-PUR-E1S-V1D-G be shipped?
V1SD-G-GN1,5M-PUR-E1S-V1D-G is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up V1SD-G-GN1,5M-PUR-E1S-V1D-G in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for V1SD-G-GN1,5M-PUR-E1S-V1D-G and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for V1SD-G-GN1,5M-PUR-E1S-V1D-G, subject to availability and destination.
• Hard-wearing PUR cable
• Suitable for drag chains and abrasion resistant
• D coding for Ethernet
• Conforms to PROFINET
• CAT5/CAT5e cable
• Degree of protection IP66 / IP68 / IP69
• Free of paint wetting interfering substances
• UL listed for USA and Canada
• Halogen-free
• Specific design protects against loosening and inaccurate installation
Ethernet bus cable M12 plug straight to M12 plug straight D-coded, 4-pin, PUR cable green, Cat5e, shielded, UL approved, drag chain suitable
Specifications
General specifications
| Order code (Pepperl+Fuchs part number) | 70159485 |
| Connector 1: Connection | plug |
| Connector 1: Construction type | M12 |
| Connector 1: Style | straight |
| Connector 1: Locking | screw connection |
| Connector 1: Number of pins | 4 |
| Connector 1: Coding | D-coded |
| Connector 2: Connection | plug |
| Connector 2: Construction type | M12 |
| Connector 2: Style | straight |
| Connector 2: Locking | screw connection |
| Connector 2: Number of pins | 4 |
| Connector 2: Coding | D-coded |
| Lifecycle | Active (current Pepperl+Fuchs product) |
Electrical specifications
| Operating voltage | max. 250 V AC/DC UB |
| Operating current | max. 4 A IB |
Conformity
| Degree of protection | EN 60529 |
| Plug connection | connector M12 x 1 : IEC 61076-2-101 |
| Component category | CAT5 (IEC 11801) , CAT5e (IEC 61156-6) |
| Flammability | IEC 60332-1-2 / UL 2556 / ISO 6722-1 5.22 (UN ECE-R 118.01) |
Approvals and certificates
| UL approval | AWM STYLE 20549 80 °C 300V AWM I A/B 80 °C 300V FT2 (cable) |
| UL File Number | E231213 |
Ambient conditions
| Ambient temperature: Plug connector | -40 ... 90 °C (-40 ... 194 °F) |
| Ambient temperature: Cable, fixed installation | -30 ... 70 °C (-22 ... 158 °F) , UL: -20 ... 70 °C (-4 ... 158 °F) |
| Ambient temperature: Cable, flexing | -20 ... 70 °C (-4 ... 158 °F) |
Mechanical specifications
| Plug connector: Tightening torque | 0.6 Nm |
| Plug connector: Loosening protection | integrated |
| Plug connector: Tool installation | straight knurling and hexagon nut SW = 14 mm |
| Plug connector: Mating cycles | min. 100 |
| Plug connector: Shielding | shield connected to screw connection |
| Degree of protection | IP66 / IP68 / IP69 |
| Cable | according to IEC/EN 60228 (DIN VDE 0295) class 5 |
| Sheath diameter | 6 mm |
| Bending radius | > 10 x cable diameter, movable installation > 8 x cable diameter, fixed installation |
| Sheath stripping force | max. 60 N / 100 mm |
| Sheath color | green (similar to RAL 6018) |
| Number of cores | 4 |
| Core cross section | 0.34 mm2 / 22 AWG |
| Cores color | Core 1: yellow Core 2: white Core 3: orange Core 4: blue |
| Core construction | 7 x 0.254 mm ∅ twisted quad |
| Shield | aluminum-lined polyester foil Tinned copper braiding |
| Length | 1.5 m L |
| Drag chain suitability: Drag chain cycles | max. 1000000 |
| Drag chain suitability: Motion velocity | max. 3 m/s |
| Drag chain suitability: Traverse distance | max. 5 m |
| Drag chain suitability: Acceleration | max. 2 m/s2 |
| Mass | 110 g |
Material
| PWIS free | yes |
| Halogen-free | yes |
| Plug connector: Screw connection | Zinc diecast, nickel-plated |
| Plug connector: Body | TPU, black |
| Plug connector: Contact surface | gold plated (Au) |
| Plug connector: Flammability | V-2 |
| Cable: Sheathing | PUR based on polyether |
| Cable: Cores | bare copper (Cu) |
| Cable: Core insulation | PP |
| Cable: Flammability | FT2 complies with UN ECE-R 118.01 |
General information
| Cable marking sleeve | 2x PUR transparent , fixed to cable |
Downloads & documentation
Official documents from Pepperl Fuchs, downloaded directly from the manufacturer.
Data sheets & manuals
| Datasheet V1SD-G-GN1,5M-PUR-E1S-V1D-G |
CAD & dimension drawings
| 3-D model (STEP) V1SD-G-GN0,7M-PUR-E1S-V1D-G | STP · 6.9 MB |
Certificates (3)
| Canada, USA UL (CoC E231213) | PDF · 428 kB |
| EU Declaration of Conformity (Pepperl+Fuchs) | PDF · 293 kB |
| UK Declaration of Conformity (Pepperl+Fuchs) | PDF · 223 kB |
12-month warrantyon all new stock
3-month warrantyon used & refurbished parts
30-day returnsno restocking fee on unused parts
Global shippingFast, tracked delivery worldwide
More Pepperl Fuchs parts

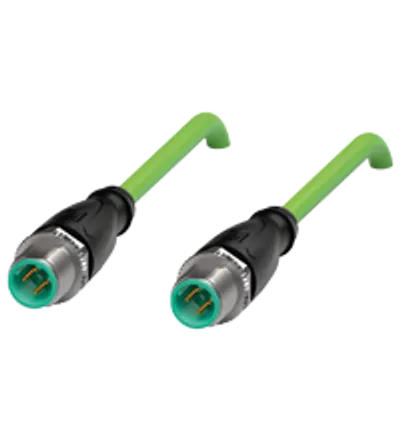

Available on requestConnection cable, Ethernet V1SD-G-GN0,5M-PUR-E2S-V1D-GMPN: V1SD-G-GN0,5M-PUR-E2S-V1D-G · Pepperl Fuchs
