SENTRON 5TT4 Remote Control Switches Parts

















Compare SENTRON 5TT4 Remote Control Switches
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | power loss [V∙A] of magnet coil with pulse rated value | switching capacity apparent power — for fluorescent lamp load with DUO circuit | switching capacity apparent power — for fluorescent lamp load with parallel compensation | Net Weight | design of the product |
|---|---|---|---|---|---|

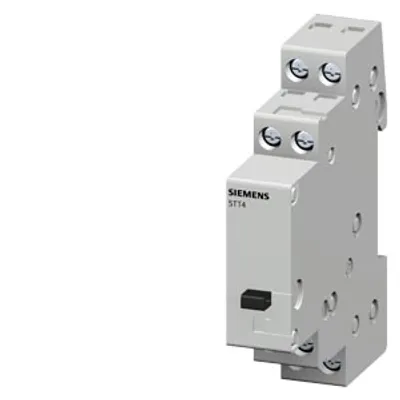

| 5TT4151-0 | 7 V·A | 700 V·A | 300 V·A | 162 g | — |
| 5TT4142-3 | 7 VA | 900 VA | 400 VA | 146 g | — |

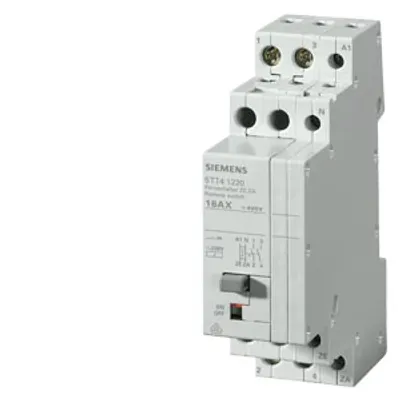

| 5TT4122-2 | 7 VA | 700 VA | 300 VA | 173 g | — |
| 5TT4465-2 | 26 V·A | 3 712 V·A | 1 798 V·A | 368 g | 1NO+1NC, 24 V AC |
| 5TT4465-0 | 26 V·A | 3 712 V·A | 1 798 V·A | 368 g | 1NO+1NC, 230 V AC |
| 5TT4464-2 | 26 V·A | 3 712 V·A | 1 798 V·A | 502 g | 4NO, 24 V AC |

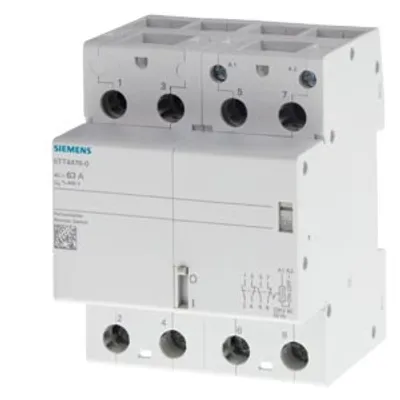

| 5TT4464-0 | 26 V·A | 3 712 V·A | 1 798 V·A | 426 g | 4NO, 230 V AC |
| 5TT4462-2 | 26 V·A | 3 712 V·A | 1 798 V·A | 0.29 kg | 2NO, 24 V AC |

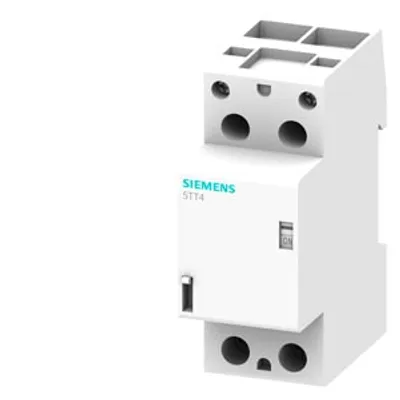

| 5TT4462-0 | 26 V·A | 3 712 V·A | 1 798 V·A | 289 g | 2NO, 230 V AC |
| 5TT4458-2 | 18 V·A | — | — | 208 g | 2W, AC 24 V |
| 5TT4458-0 | 18 V·A | 2 436 V·A | 1 218 V·A | 205 g | 2W, AC 230 V |
| 5TT4457-5 | 9 VA | 2 436 VA | 1 218 VA | 145 g | 1W, DC 24 V, 32 A |
| 5TT4456-2 | 18 V·A | 2 436 V·A | 1 218 V·A | 218 g | 2NO+2NC, 24 V AC |

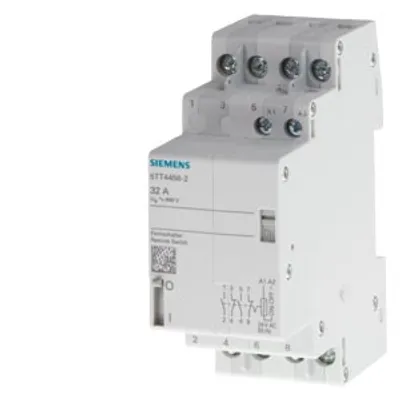

| 5TT4456-0 | 18 V·A | 2 436 V·A | 1 218 V·A | 293 g | 2NO+2NC, 230 V AC |
| 5TT4455-5 | 9 V·A | 2 436 V·A | 1 218 V·A | 151 g | 1NO+1NC, 24 V DC, 32 A |
| 5TT4455-2 | 18 V·A | 2 436 V·A | 1 218 V·A | 23 g | 1NO+1NC, 24 V AC |

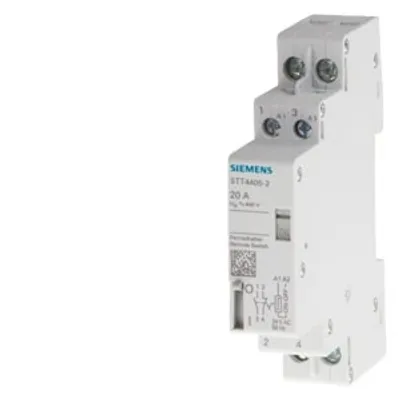

| 5TT4455-0 | 18 V·A | 2 436 V·A | 1 218 V·A | 148 g | 1NO+1NC, 230 V AC |
Common to all listed parts
| product designation | Remote control switch |
| electrical endurance (operating cycles) | 50 000 |
| galvanic isolation between magnet coil and contact | Yes |
| switching voltage of the contacts at AC minimum | 10 V |
| switching current at AC per contact minimum | 100 mA |
| type of voltage of the operating voltage | AC |
| continuous voltage fuse version | Yes |
| product component switch position indicator | Yes |
