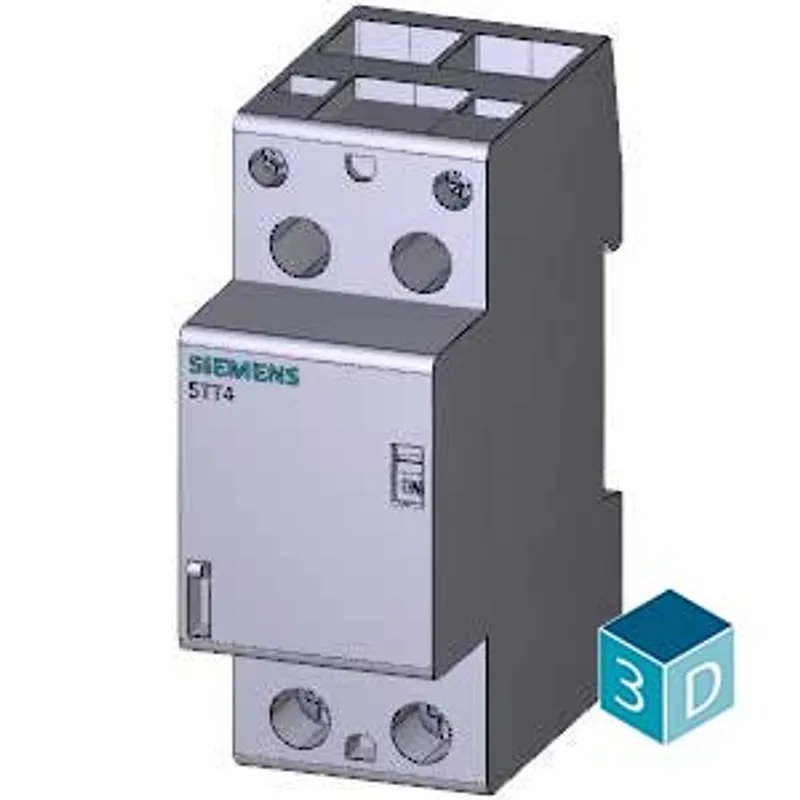

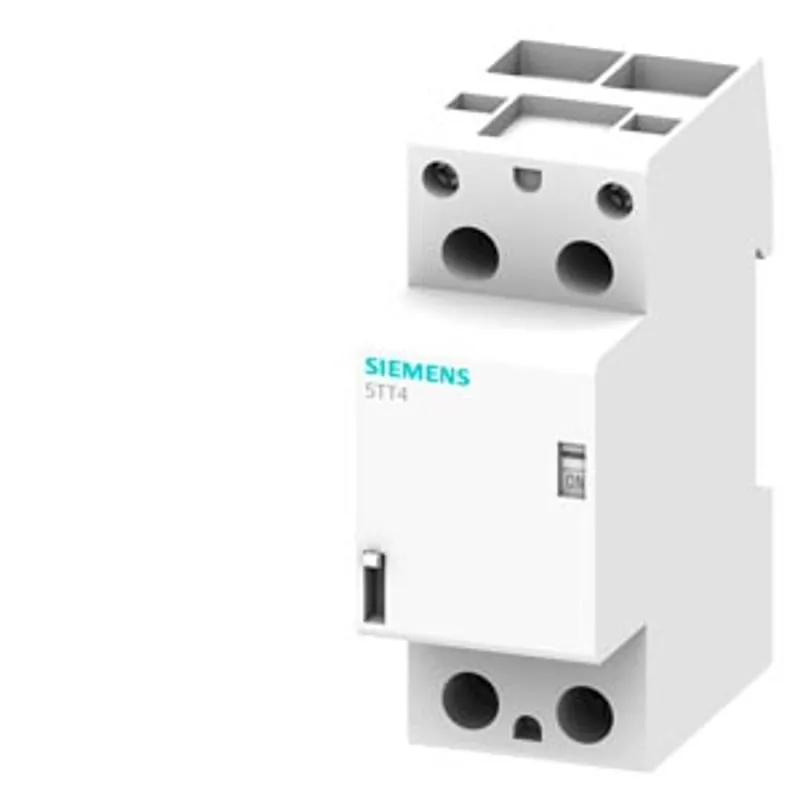

Siemens 5TT4465-0

Remote control switch Contact for 40 A Voltage 230 V AC 1 NO 1 NC

MPN
5TT4465-0
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Siemens parts? We buy surplus →

What is the Siemens 5TT4465-0?

Remote control switch Contact for 40 A Voltage 230 V AC 1 NO 1 NC

Specifications

Model

product brand nameSENTRON
product designationRemote control switch

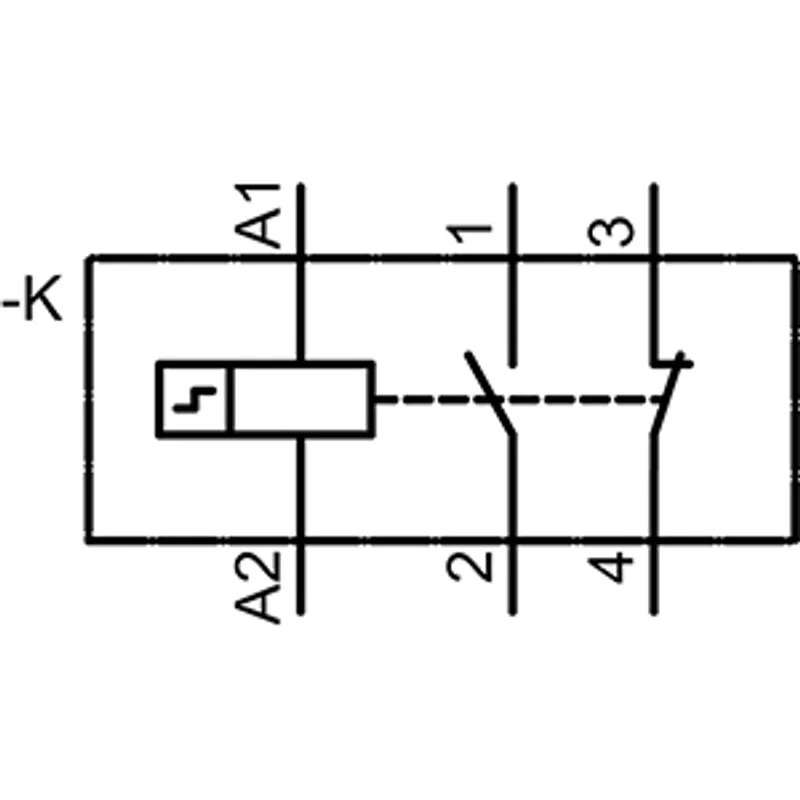

design of the product1NO+1NC, 230 V AC
latching relay designMechanical switch

General technical data

electrical endurance (operating cycles)50 000
galvanic isolation between magnet coil and contactYes
switching voltage of the contacts at AC minimum10 V
switching current at AC per contact minimum100 mA
degree of pollution3
power loss [V∙A] of magnet coil with pulse rated value26 V·A

Voltage

type of voltage of the operating voltageAC
continuous voltage fuse versionYes
surge voltage resistance rated value4 kV
supply voltage400 V

Supply voltage

supply voltage — minimum230 V

Protection class

protection class IPIP20

Breaking Capacity

switching capacity apparent power — for fluorescent lamp load with DUO circuit3 712 V·A
switching capacity apparent power — for fluorescent lamp load with parallel compensation1 798 V·A
switching capacity apparent power — for uncompensated fluorescent lamp load3 654 V·A
switching capacity current — at cos phi 0.640 A
switching capacity current — rated value40 A
switching capacity active power with incandescent lamp load8 800 W

Dissipation

power loss [W] — at 16 A per contact rated value3 W
power loss [W] — of magnet coil with pulse rated value12 W

Control current

type of voltage — of control voltage_1AC
control voltage — _1 initial value207 V
control voltage — _1 full-scale value253 V
control voltage — _1 setpoint230 V
control voltage frequency — _1 initial value50 Hz
control voltage frequency — _1 full-scale value60 Hz

Product details

product component switch position indicatorYes
number of NC contacts1
number of NO contacts1
number of CO contacts0

Product function

product function — direct operationYes
product function — communication functionNo
product function — other measurement functionNo
pulse duration minimum50 ms

Number

number of terminals4

Connections

connectable conductor cross-section for flexible conductor with core end processing — minimum2.5 mm²
connectable conductor cross-section for flexible conductor with core end processing — maximum25 mm²
connectable conductor cross-section for rigid conductor — minimum2.5 mm²
connectable conductor cross-section for rigid conductor — maximum25 mm²

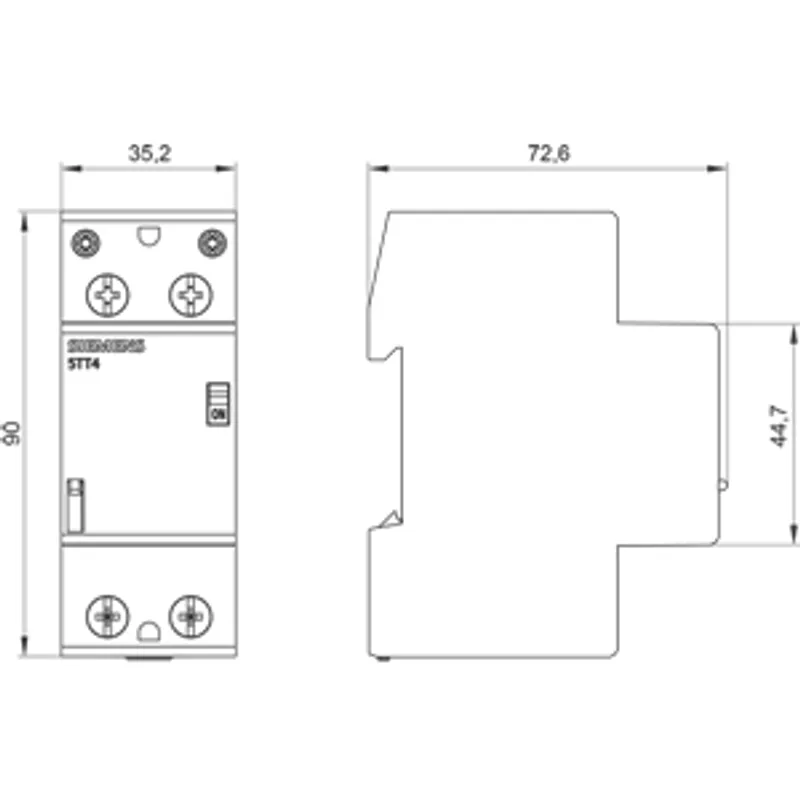

Mechanical Design

height90 mm
width35 mm
width of opening of the contacts3 mm
depth73 mm
mounting height90 mm
installation depth70 mm
number of modular width units2
fastening methodDIN rail
mounting positionHorizontal and vertical
Net Weight368 g

Environmental conditions

ambient temperature during operation — minimum-25 °C
ambient temperature during operation — maximum55 °C
ambient temperature with relative humidity 95% according to DIN 5001555 °C

Downloads & documentation

Official documents from Siemens, downloaded directly from the manufacturer.

Data sheets & manuals

5TT4465-0: frequently asked questions

When can 5TT4465-0 be shipped?

5TT4465-0 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 5TT4465-0 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 5TT4465-0 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 5TT4465-0, subject to availability and destination.
