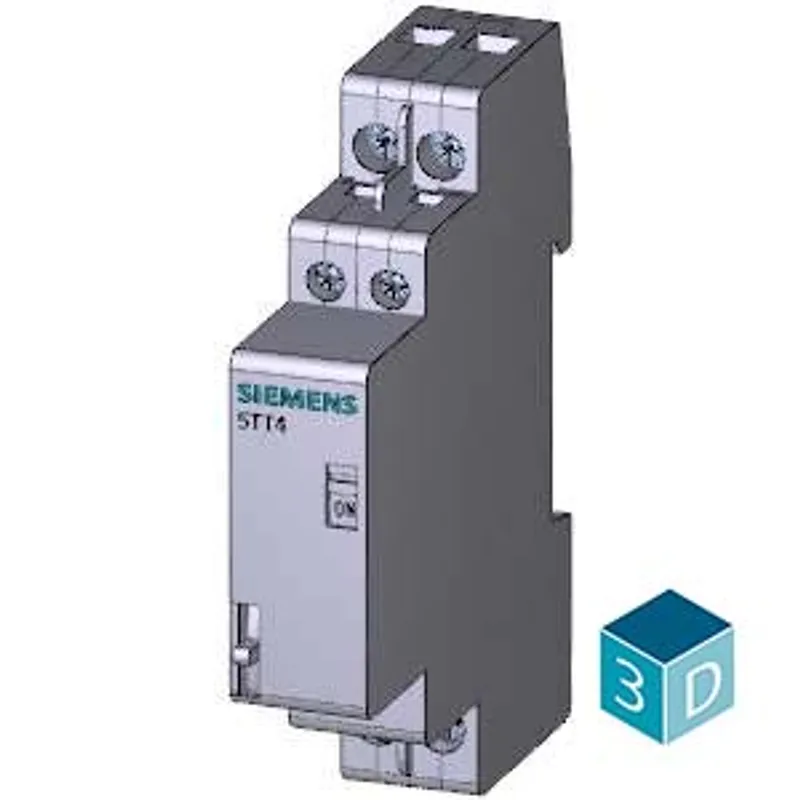

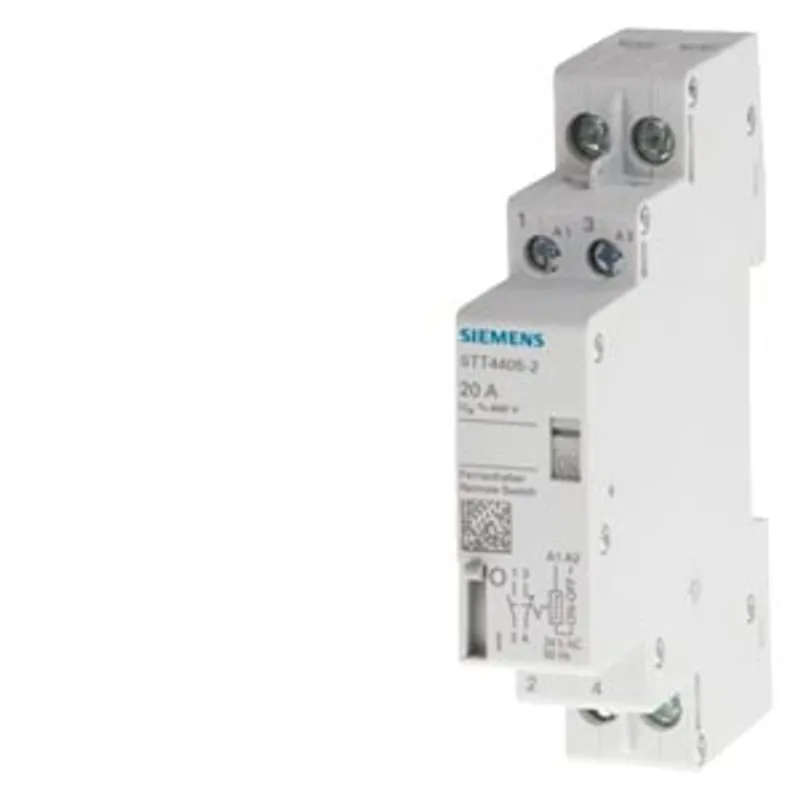

Siemens 5TT4457-5
Remote control switch Contact for 32 A Voltage 24 V DC 1 change-over contact
- MPN
- 5TT4457-5
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- 100% positive eBay feedback
- Ships via
What is the Siemens 5TT4457-5?
Remote control switch Contact for 32 A Voltage 24 V DC 1 change-over contact
Specifications
Model
| product brand name | SENTRON |
| product designation | Remote control switch |
| design of the product | 1W, DC 24 V, 32 A |
| latching relay design | Mechanical switch |
General technical data
| electrical endurance (operating cycles) | 50 000 |
| galvanic isolation between magnet coil and contact | Yes |
| switching voltage of the contacts at AC minimum | 10 V |
| switching current at AC per contact minimum | 100 mA |
| degree of pollution | 3 |
| power loss [V∙A] of magnet coil with pulse rated value | 9 VA |
Voltage
| type of voltage of the operating voltage | AC |
| continuous voltage fuse version | Yes |
| surge voltage resistance rated value | 3 kV |
| supply voltage | 400 V |
Supply voltage
| supply voltage — minimum | 230 V |
Protection class
| protection class IP | IP20 |
Breaking Capacity
| switching capacity apparent power — for fluorescent lamp load with DUO circuit | 2 436 VA |
| switching capacity apparent power — for fluorescent lamp load with parallel compensation | 1 218 VA |
| switching capacity apparent power — for uncompensated fluorescent lamp load | 2 204 VA |
| switching capacity current — at cos phi 0.6 | 32 A |
| switching capacity current — rated value | 32 A |
| switching capacity active power with incandescent lamp load | 7 000 W |
Dissipation
| power loss [W] — at 16 A per contact rated value | 3 W |
| power loss [W] — of magnet coil with pulse rated value | 9 W |
Control current
| type of voltage — of control voltage_1 | DC |
| control voltage — _1 initial value | 207 V |
| control voltage — _1 full-scale value | 253 V |
| control voltage — _1 setpoint | 24 V |

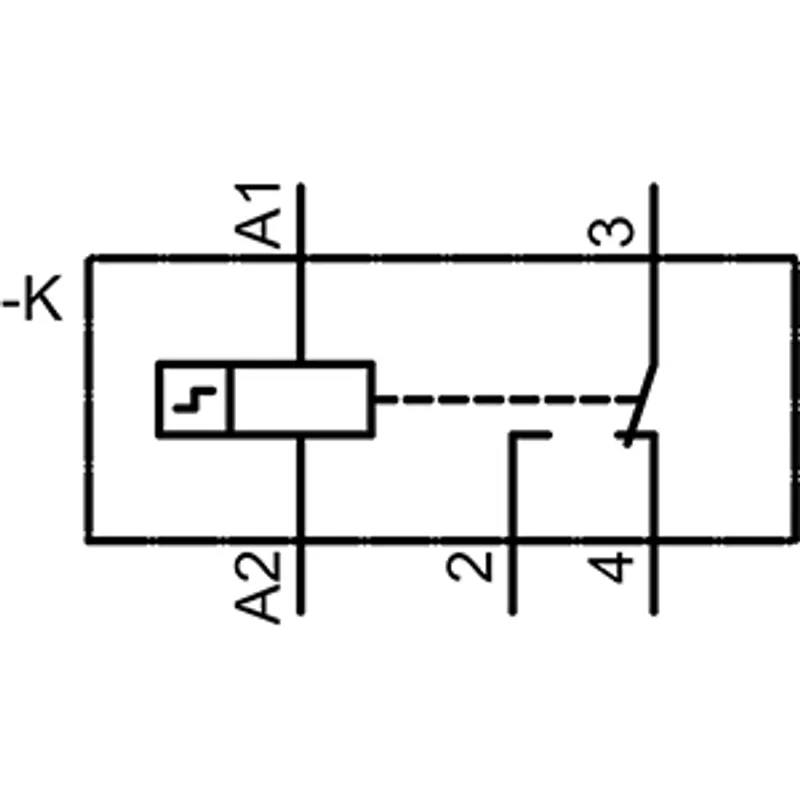

Product details
| product component switch position indicator | Yes |
| number of NC contacts | 0 |
| number of NO contacts | 0 |
| number of CO contacts | 1 |
Product function
| product function — direct operation | Yes |
| product function — communication function | No |
| product function — other measurement function | No |
| pulse duration minimum | 100 ms |
Number
| number of terminals | 3 |
Connections
| connectable conductor cross-section for flexible conductor with core end processing — minimum | 1 mm² |
| connectable conductor cross-section for flexible conductor with core end processing — maximum | 10 mm² |
| connectable conductor cross-section for rigid conductor — minimum | 1 mm² |
| connectable conductor cross-section for rigid conductor — maximum | 10 mm² |

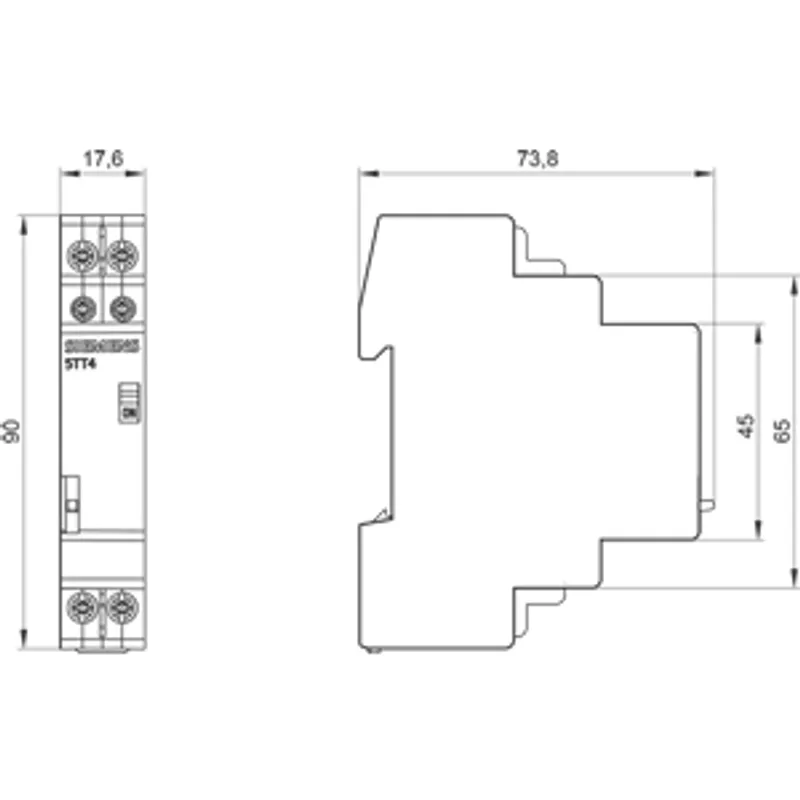

Mechanical Design
| height | 90 mm |
| width | 17.5 mm |
| width of opening of the contacts | 3 mm |
| depth | 73 mm |
| mounting height | 90 mm |
| installation depth | 70 mm |
| number of modular width units | 1 |
| fastening method | DIN rail |
| mounting position | Horizontal and vertical |
| Net Weight | 145 g |
Environmental conditions
| ambient temperature during operation — minimum | -25 °C |
| ambient temperature during operation — maximum | 55 °C |
| ambient temperature with relative humidity 95% according to DIN 50015 | 55 °C |
