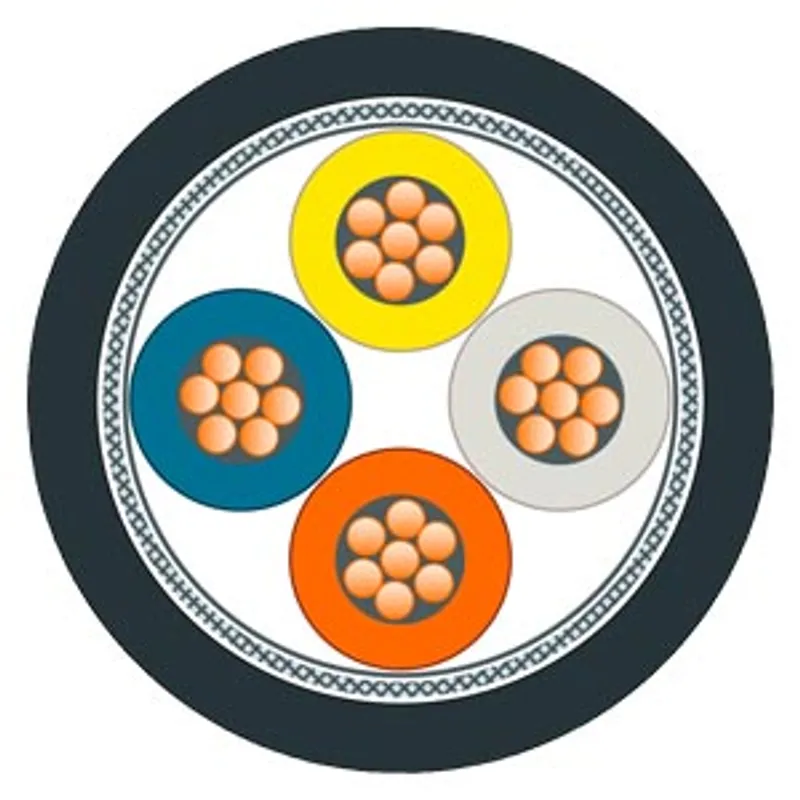

Siemens 6XV1871-2T
IE TP TRAIN Cable 2x2; CAT5 TP installation cable for Rail applications, for connection to FC RJ45 plug 2x2
- MPN
- 6XV1871-2T
- Category
- IE FC TP cable 2 x 2
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Siemens 6XV1871-2T?
IE TP TRAIN Cable 2x2; CAT5 TP installation cable for Rail applications, for connection to FC RJ45 plug 2x2, FC M12 plug pro 2x2; railway-certified, 4-core, shielded, Cat5e, sold by the meter, max. delivery unit 2000 m, minimum order quantity 20 m.
Specifications
General
| product brand name | SIMATIC NET |
| Technical Product Detail Page | https://i.siemens.com/1P6XV1871-2T |
| suitability for use | For laying in rail vehicles and buses |
| cable designation | SF/UTP |
| wire length | sold by the meter |
electrical data
| attenuation factor per length — at 10 MHz / maximum | 0.053 dB/m |
| attenuation factor per length — at 100 MHz / maximum | 0.188 dB/m |
| impedance — at 1 MHz ... 100 MHz | 100 Ω |
| relative symmetrical tolerance — of the characteristic impedance at 1 MHz … 100 MHz | 5 % |
| near-end crosstalk per length — at 1 MHz ... 100 MHz | 0.5 dB/m |
| transfer impedance per length / at 10 MHz | 8 mΩ/m |
| loop resistance per length / maximum | 124 mΩ/m |
| operating voltage — RMS value | 125 V |
mechanical data
| number of electrical cores | 4 |
| design of the shield | SF/UTP, overlapped aluminum-clad foil, sheathed in a protective braided shield of tinned copper wires |
| type of electrical connection / FastConnect | No |
| core diameter — of AWG22 insulated conductor | 0.75 mm |
| outer diameter — of inner conductor | 0.75 mm |
| outer diameter — of the wire insulation | 1.5 mm |
| outer diameter — of cable sheath | 6.6 mm |
| symmetrical tolerance of the outer diameter / of cable sheath | 0.2 mm |
| material — of the wire insulation | polyethylene (PE) |
| material — of cable sheath | Elastomer meshed electron beam |
| color — of the insulation of data wires | white/yellow/blue/orange |
| color — of cable sheath | Black |
| bending radius — with single bend / minimum permissible | 40 mm |
| bending radius — with multiple bends / minimum permissible | 40 mm |
| tensile load / maximum | 100 N |
| weight per length | 71 kg/km |
ambient conditions
| ambient temperature — during operation | -40 ... +85 °C |
| ambient temperature — during storage | -40 ... +85 °C |
| ambient temperature — during transport | -40 ... +85 °C |
| ambient temperature — during installation | -25 ... +70 °C |
| ambient temperature — note | electrical properties measured at 20 °C |
| fire behavior | BS 6853 cable internal Ia, Ib, II, cable external Ia, Ib, II, DIN 5510-2 fire protection level 1-4, EN 45545-2 Hazard Level HL 1-HL 3, EN 50306-4, NF F 16-101, NFPA 130, PN-K-02511 Class A, UIC 564-2 Class A |
| chemical resistance — to mineral oil | EN 50306-4 (72h/100 °C, method B volume concentration 200x10-6, 72h/100 °C IRM 902, 168h/70 °C IRM 903), DIN 51900 |
| chemical resistance — to grease | Conditional resistance |
| chemical resistance — to water | conditional resistance |
| radiological resistance / to UV radiation | resistant |
product features, product functions, product components / general
| product feature — halogen-free | Yes |
| product feature — PoE capability | Yes |
| product feature — PoE+ capability | Yes |
| product feature — silicon-free | Yes |
| wire length / for Industrial Ethernet — with 100BaseTX | 100 m |
| test voltage — at AC / core-to-core | 1000 V |
| test voltage — at AC / core shield | 1000 V |
standards, specifications, approvals
| UL/ETL listing / 300 V Rating | No |
| UL/ETL style / 600 V Rating | No |
| certificate of suitability — EAC approval | Yes |
| certificate of suitability — CE marking | Yes |
| certificate of suitability — RoHS conformity | Yes |
| standard for structured cabling | Cat5 |
| Marine classification association — American Bureau of Shipping Europe Ltd. (ABS) | No |
| Marine classification association — French marine classification society (BV) | No |
| Marine classification association — Det Norske Veritas (DNV) | No |
| Marine classification association — Germanische Lloyd (GL) | No |
| Marine classification association — Lloyds Register of Shipping (LRS) | No |
| Marine classification association — Nippon Kaiji Kyokai (NK) | No |
| Marine classification association — Polski Rejestr Statkow (PRS) | No |
further information / internet links
| internet link — to website: Selection guide for cables and connectors | https://support.industry.siemens.com/cs/ww/en/view/109766358 |
| internet link — to web page: selection aid TIA Selection Tool | https://www.siemens.com/tstcloud |
| internet link — to web page: SiePortal | https://sieportal.siemens.com/ |
| internet link — to website: Image database | https://www.automation.siemens.com/bilddb |
| internet link — to website: CAx-Download-Manager | https://www.siemens.com/cax |
| internet link — to website: Industry Online Support | https://support.industry.siemens.com |
security information
| security information | Siemens provides products and solutions with industrial cybersecurity functions that support the secure operation of plants, systems, machines and networks. In order to protect plants, systems, machines and networks against cyber threats, it is necessary to implement - and continuously maintain - a holistic, state-of-the-art industrial cybersecurity concept. Siemens’ products and solutions constitute one element of such a concept. Customers are responsible for preventing unauthorized access to their plants, systems, machines and networks. Such systems, machines and components should only be connected to an enterprise network or the internet if and to the extent such a connection is necessary and only when appropriate security measures (e.g. firewalls and/or network segmentation) are in place. For additional information on industrial cybersecurity measures that may be implemented, please visit www.siemens.com/cybersecurity-industry. Siemens’ products and solutions undergo continuous development to make them more secure. Siemens strongly recommends that product updates are applied as soon as they are available and that the latest product versions are used. Use of product versions that are no longer supported, and failure to apply the latest updates may increase customer’s exposure to cyber threats. To stay informed about product updates, subscribe to the Siemens Industrial Cybersecurity RSS Feed under https://www.siemens.com/cert. (V4.7) |
Downloads & documentation
Official documents from Siemens, downloaded directly from the manufacturer.
Data sheets & manuals
6XV1871-2T: frequently asked questions
When can 6XV1871-2T be shipped?
6XV1871-2T is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 6XV1871-2T in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 6XV1871-2T and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 6XV1871-2T, subject to availability and destination.
