Basic Devices Parts
Compare Basic Devices
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | operational current — at 40 °C rated value | operational current — at 55 °C rated value | operational current at AC rated value | power loss [W] for rated value of the current at AC in hot operating state per pole | Net Weight |
|---|---|---|---|---|---|
| 5SL6616-7 | 15.23 A | 13.99 A | 16 A | 1.6 W | 602 g |
| 5SL6610-6 | 9.52 A | 8.74 A | 10 A | 1.9 W | 598 g |

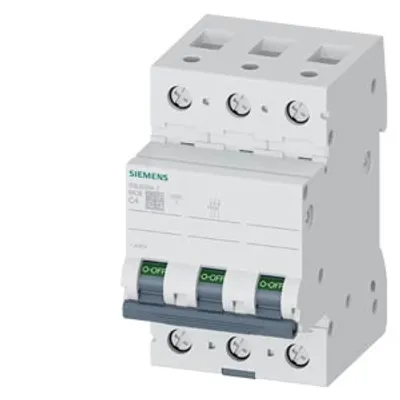

| 5SL6304-7 | 3.81 A | 3.5 A | 4 A | 0.7 W | 393 g |
| 5SL6301-7 | 0.95 A | 0.87 A | 1 A | 1.2 W | 450 g |

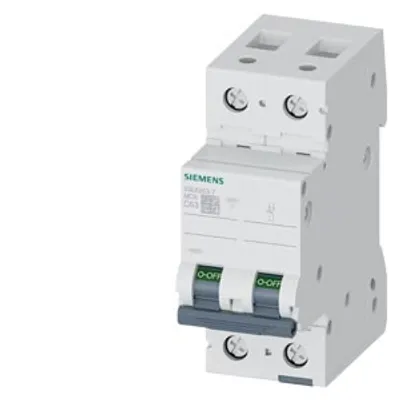

| 5SL6263-7 | 59.18 A | 52.93 A | 63 A | 5.2 W | 325 g |

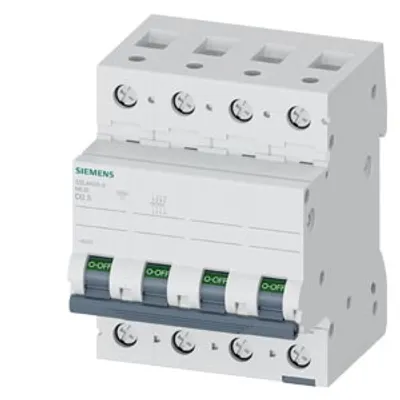

| 5SL4605-8 | 0.47 A | 0.43 A | 0.5 A | 0.9 W | 660 g |
| 5SL4603-8 | 2.88 A | 2.69 A | 3 A | 1.1 W | 600 g |

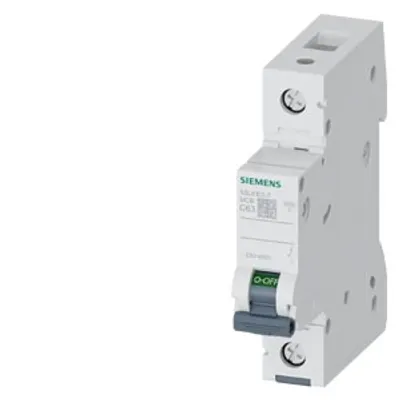

| 5SL6163-7 | 59.18 A | 52.93 A | 63 A | 5.2 W | 160 g |
| 5SL6315-7 | 1.54 A | 1.44 A | 1.6 A | 1.3 W | 453 g |
| 5SL6314-7 | 0.29 A | 0.26 A | 0.3 A | 0.9 W | 458 g |
| 5SL6115-7 | 1.52 A | 1.4 A | 1.6 A | 1.3 W | 158 g |
| 5SL6110-7 | 9.39 A | 8.4 A | 10 A | 1.3 W | 128.9 g |

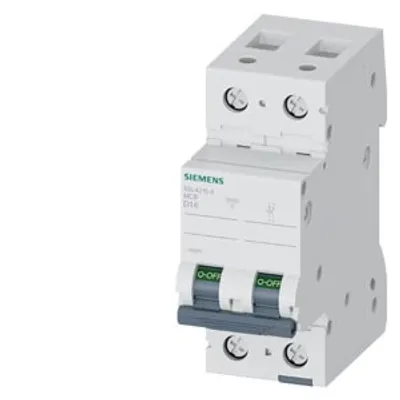

| 5SL4215-8 | 1.54 A | 1.43 A | 1.6 A | 1.2 W | 310 g |
| 5SL4132-8 | 29.56 A | 25.48 A | 32 A | 2.7 W | 161 g |
| 5SL4106-7 | 5.68 A | 5.17 A | 6 A | 1.6 W | 151 g |

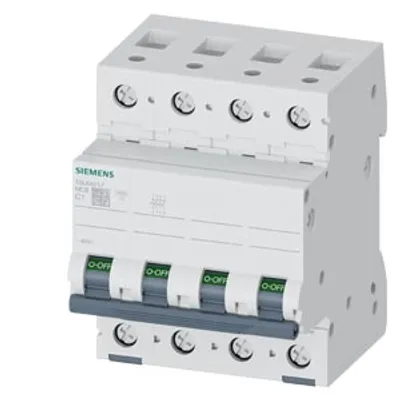

| 5SL6401-7 | 0.95 A | 0.87 A | 1 A | 1.2 W | 594 g |
| 5SL6350-7 | 46.97 A | 42.01 A | 50 A | 3.8 W | 479 g |

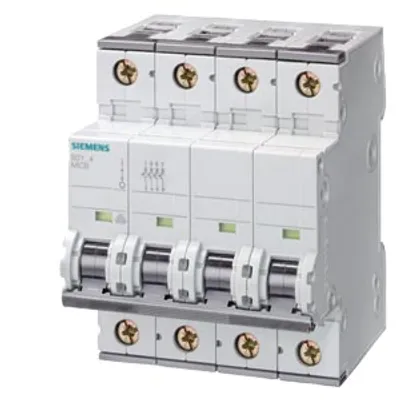

| 5SY8401-7 | — | 0.95 A | 1 A | 1.2 W | 628 g |
| 5SY8363-8BB08 | — | — | 63 A | 5 W | 498 g |
| 5SY8363-8 | — | 59.79 A | 63 A | 5 W | 497 g |
| 5SY8363-7 | — | 59.79 A | 63 A | 6 W | 508 g |
| 5SY8350-8BB08 | — | — | 50 A | 3.7 W | 486 g |

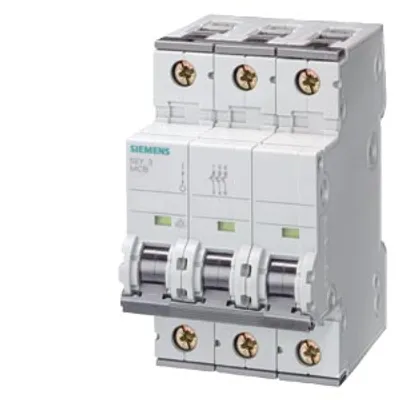

| 5SY8350-8 | — | 47.85 A | 50 A | 3.7 W | 491 g |
| 5SY8350-7 | — | 47.85 A | 50 A | 3.8 W | 495 g |
Common to all listed parts
| product designation | Miniature circuit breaker |
| mechanical service life (operating cycles) typical | 10 000 |
| overvoltage category | 3 |
| type of voltage of the operating voltage | AC |
| insulation voltage (Ui) — with multi-phase operation at AC rated value | 440 V |
| value range of the supply voltage frequency | 50/60 Hz |
| protection class IP | IP20, with connected conductors |
| product feature touch protection | Yes |
